KM75-TGQDE (1999)
Toyota Lite/Townace
Production
Jun 1999
-
Aug 2007
Engine
7KE
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9906- )KM7#,8#

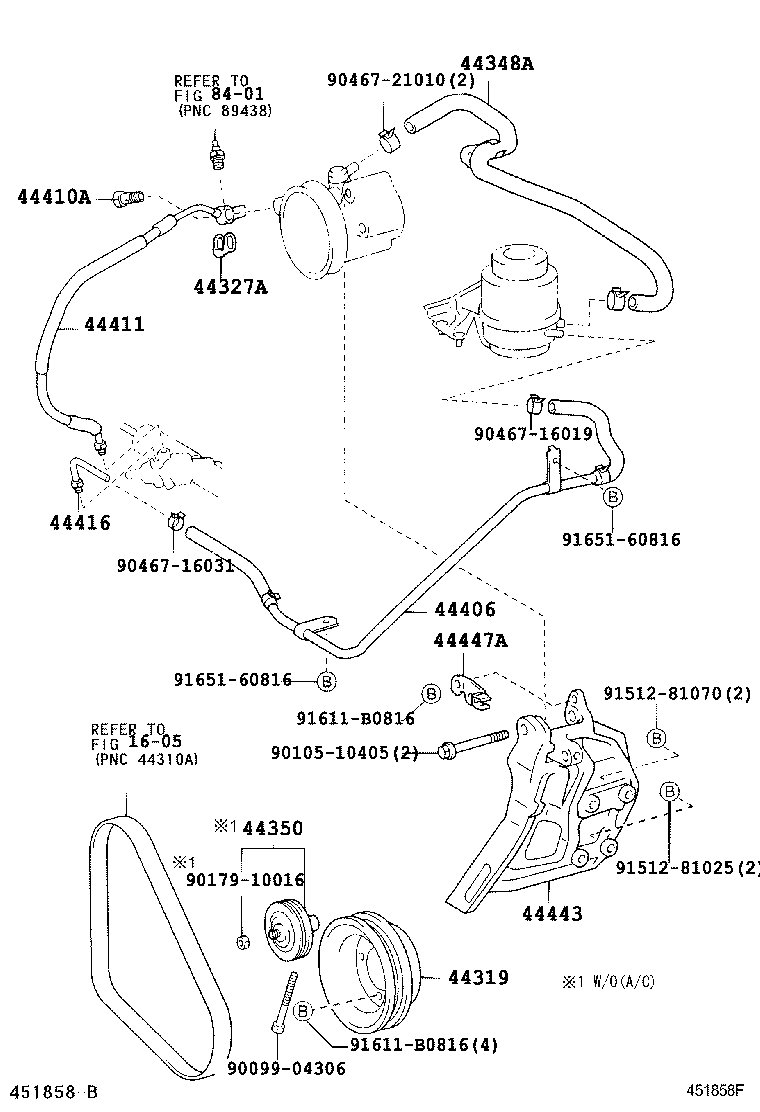

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-27030 |
KM7#,8# |
1 | ||
| 44319-27030 |
KM7#,8# |
1 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30040 |
KM7#,8# |
1 | ||
| 44327-26020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44327-26020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-27190 |
KM7#,8# |
1 | ||
| 44348-27190 |
KM7#,8# |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 88440-12170 |
KM7#,8# |
1 | ||
| 88440-12170 |
KM7#,8# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-27090 |
KM7# |
1 | ||
| 44406-27130 |
KM75,8#..JL |
1 | ||
| 44406-27090 |
KM7#..CBU,IV3 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16034 |
CM7#,8#,KM7#,8# |
1 | ||
| 90401-16034 |
KM7#,8# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-27090 |
KM7#..CBU,IV3 |
1 | ||
| 44411-27100 |
KM75,8#..JL |
1 | ||
| 44411-27090 |
KM7# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-27100 |
CM7#,KM7# |
1 | ||
| 44416-27100 |
KM7#..CBU,IV3 |
1 | ||
| 44416-27110 |
KM75,8#..JL |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-27030 |
KM7#,8# |
1 | ||
| 44443-27030 |
KM7#,8# |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-27010 |
KM7#,8# |
1 | ||
| 44447-27010 |
KM7#,8# |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90105-10405 | ||||
| 90179-10016 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 91512-81025 | ||||
| 91512-81070 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
