KM70-TYSNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)TS..1SO ; (0208- )1SO

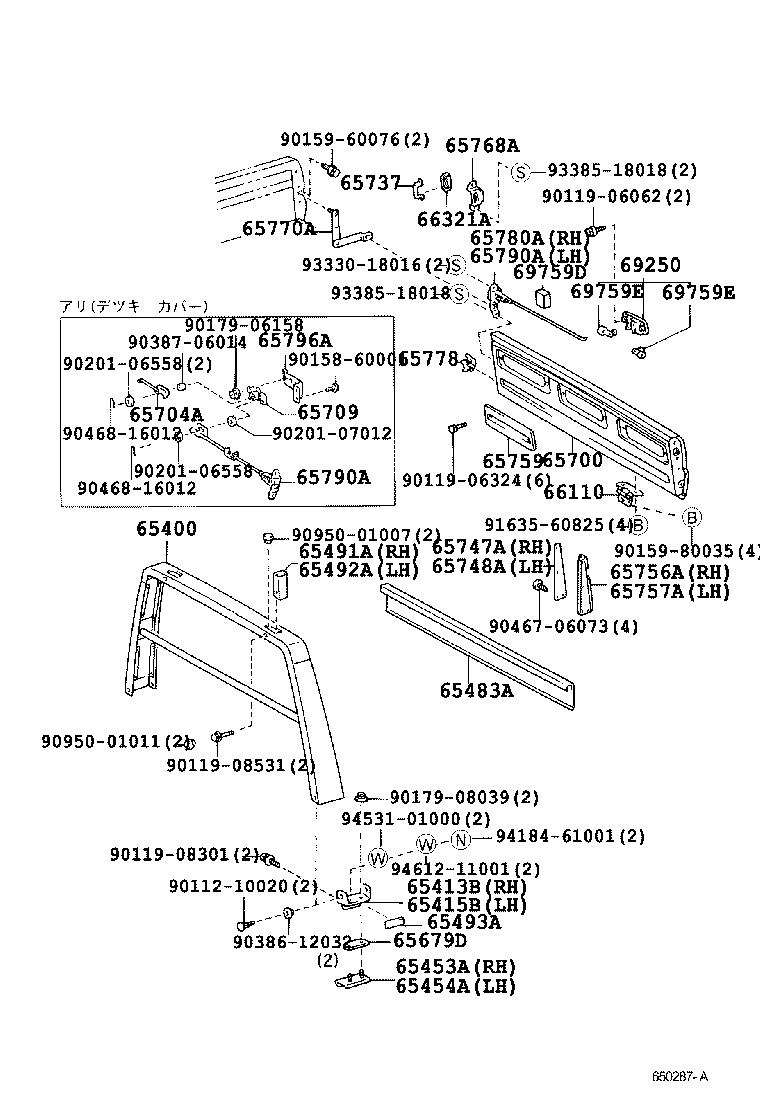

Click highlighted areas on diagram

diagram 65400 65413B 65415B 65453A 65454A 65483A 65491A 65492A 65493A 65679D 65700 65704A 65709 65737 65747A 65748A 65756A 65757A 65759 65768A 65770A 65778 65780A 65790A 65790A 65796A 66110 66321A 69250 69759D 69759E 69759E 9011210020 9011906062 9011906324 9011908301 9011908531 9015860001 9015960076 9015980035 9017906158 9017908039 9020106558 9020106558 9020107012 9038612032 9038706014 9046706073 9046816012 9046816012 9095001007 9095001011 9163560825 9333018016 9338518018 9338518018 9418461001 9453101000 9461211001
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-27020

KM70,80..SPX

 1
65413B - BRACKET, GUARD FRAME, RH
65413-95701

KM70,80..TS..1SO

 1
65415B - BRACKET, GUARD FRAME, LH
65415-95700

KM70,80..TS..1SO

 1
65453A - RETAINER, GUARD FRAME BRACKET, RH
65453-95701

KM70,80..TS..1SO

 1
65454A - RETAINER, GUARD FRAME BRACKET, LH
65454-95700

KM70,80..TS..1SO

 1
65483A - RAIL, HEADER BOARD, UPPER
65483-95702

KM70,80..TS..1SO

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
65483-95701

KM70,80..TS..1SO

 1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-27010

KM70,80..1SO

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65491-27010

KM70,80..1SO

 1
65493A - SEAL, REAR BODY GUARD FRAME, NO.1
65493-95701

KM70,80..TS..1SO

 2
65679D - SEAL, SIDE GATE
65679-95700

KM70,80..1SO

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-95704

KM70,80..TS..1SO

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
65700-95703

KM70,80..TS..1SO

 1
65704A - LINK SUB-ASSY, TAIL GATE LOCK CONTROL
65704-95700

KM70,80..TS..1SO

 1
65709 - BRACKET SUB-ASSY, TAIL GATE LOCK CONTROL
65709-95700

KM70,80..TS..1SO

 1
65737 - STOP, TAIL GATE
65737-89105

KM70,80..1SO

 2
65747A - PLATE, TAIL GATE SEAL, RH
65747-95700

KM70,80..TS..1SO

 1
65748A - PLATE, TAIL GATE SEAL, LH
65748-95700

KM70,80..TS..1SO

 1
65756A - SEAL, TAIL GATE, RH
65756-95700

KM70,80..TS..1SO

 1
65757A - SEAL, TAIL GATE, LH
65757-95700

KM70,80..TS..1SO

 1
65759 - COVER, TAIL GATE SERVICE HOLE
65759-95700

KM70,80..TS..1SO

 3
65768A - STRIKER, TAIL GATE LOCK
65768-89102

KM70,80..TS..1SO

 2
65770A - STAY ASSY, TAIL GATE
65770-95700

KM70,80..TS..1SO

 2
65778 - STOPPER, TAIL GATE STAY
65778-89104

KM70,80..1SO

 2
65780A - LOCK ASSY, TAIL GATE, RH
65780-95700

KM70,80..TS..1SO

 1
65790A - LOCK ASSY, TAIL GATE, LH
65790-95700

KM70,80..TS..1SO

 1
65790-27010

KM70,80..TS..1SO

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
65790A - LOCK ASSY, TAIL GATE, LH
65790-95700

KM70,80..TS..1SO

 1
65790-27010

KM70,80..TS..1SO

ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-)

 1
65796A - BASE, TAIL GATE LOCK CONTROL
65796-95700

KM70,80..TS..1SO

 1
66110 - HINGE ASSY, TAIL GATE
66110-95700

KM70,80..TS..1SO

 2
66321A - BUMPER, GATE RUBBER
66321-89108

KM70,80..1SO

 2
69250 - HANDLE ASSY, TAIL GATE LOCK
69230-89101

KM70,80..TS..1SO

 1
69759D - SILENCER, TAIL GATE LOCK LINK
69759-95702

KM70,80..1SO

 2
69759E - SNAP, TAIL GATE LOCK LINK
69759-20100

KM70,80..1SO

右側

 1
69759-20110

KM70,80..1SO

左側

 1
69759E - SNAP, TAIL GATE LOCK LINK
69759-20100

KM70,80..1SO

右側

 1
69759-20110

KM70,80..1SO

左側

 1
Common parts
90112-10020
90119-06062
90119-06324
90119-08301
90119-08531
90158-60001
90159-60076
90159-80035
90179-06158
90179-08039
90201-06558
90201-07012
90386-12032
90387-06014
90467-06073
90468-16012
90950-01007
90950-01011
91635-60825
93330-18016
93385-18018
94184-61001
94531-01000
94612-11001
