KM70-TYSNE (1999)
Toyota Lite/Townace

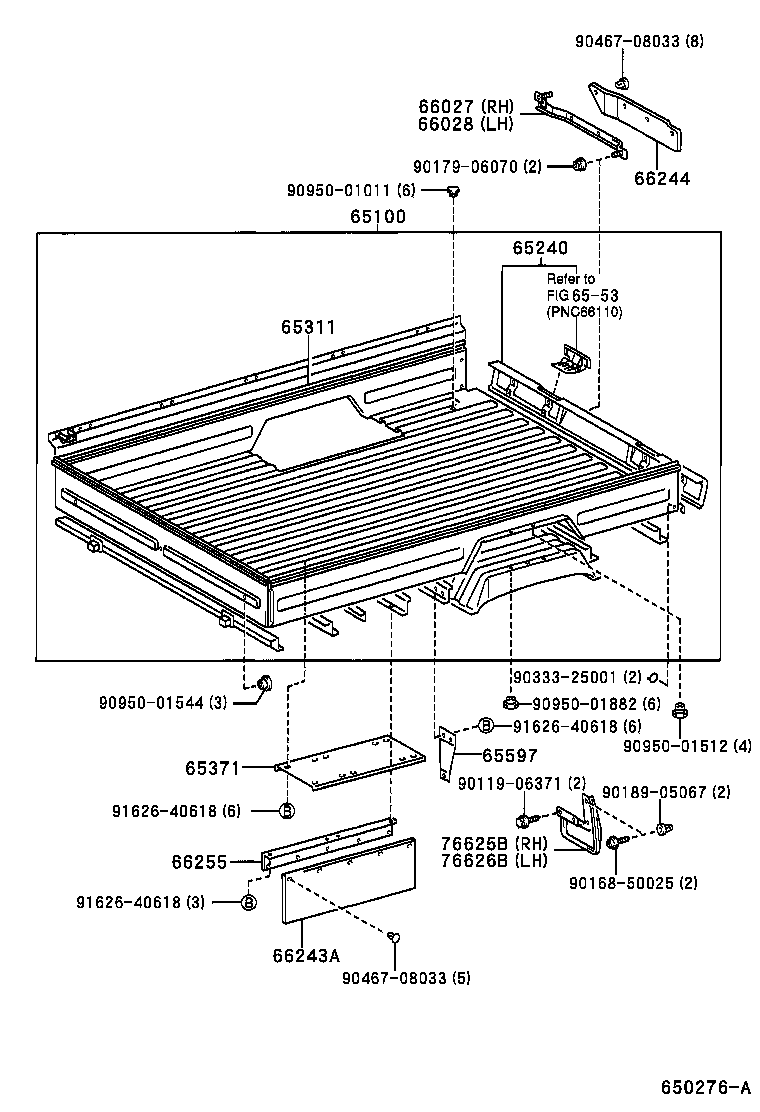

ILLUST NO. 1 OF 2(9906-0208)1SO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-27240 |
KM70..SJL..TS..1SO ｱﾘ(ﾃﾞﾂｷ ｶﾊﾞ-) |
1 | ||
| 65100-27210 |
KM70..SJL..TS..1SO |
1 | ||
| 65100-27101 |
CM70,KM70..JL..CBU ﾊﾟﾜ-ﾘﾌﾄ(ﾄﾖﾀｼﾔﾀｲ) |
1 | ||
| 65100-27150 |
CM70,KM70..JL..CBU |
1 | ||
| 65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL | ||||
| 65240-95703 |
KM70,80..TS..1SO |
1 | ||
| 65240-95707 |
KM70..JL;CM7#,KM75..TS..CBU;KM70..SJL..TS..3SO..CBU;CM70,80,KM80..JL..5H..IV3 |
1 | ||
| 65311 - PANEL, FLOOR, CENTER | ||||
| 65311-95705 |
KM70..SJL..TS..1SO |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65371-95700 |
KM70..GUT;KM70,80..1SO |
1 | ||
| 65371-95701 |
KM70,80..JL;KM75,85..CBU;KM70..SJL..3SO..CBU |
1 | ||
| 65597 - BRACE, SIDE PANEL FRAME | ||||
| 65597-95701 |
KM70..GUT;KM70..TS..1SO;CM80,KM80..T1 |
2 | ||
| 66027 - BRACKET SUB-ASSY, REAR BODY PROTECTOR, RH | ||||
| 66027-27010 |
KM70..GUT;KM70..TS..1SO;CM80,KM80..T1 |
1 | ||
| 66028 - BRACKET SUB-ASSY, REAR BODY PROTECTOR, LH | ||||
| 66028-27010 |
KM70..GUT;KM70..TS..1SO;CM80,KM80..T1 |
1 | ||
| 66243A - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-95700 |
KM70..GUT;KM70..SJL..TS..1SO |
1 | ||
| 66244 - PROTECTOR, REAR BODY, NO.2 | ||||
| 66244-95700 |
KM70..1SO;KM70..GUT;CM80,KM80..T1 |
2 | ||
| 66255 - BRACKET, REAR BODY PROTECTOR | ||||
| 66255-95700 |
KM70..GUT;KM70..SJL..TS..1SO |
1 | ||
| 76625B - MUDGUARD, REAR BODY, RH | ||||
| 76625-27010 |
KM70..1SO;KM70..GUT;CM80,KM80..T1 |
1 | ||
| 76626B - MUDGUARD, REAR BODY, LH | ||||
| 76626-27010 |
KM70..1SO;KM70..GUT;CM80,KM80..T1 |
1 | ||
| Common parts | ||||
| 90119-06371 | ||||
| 90168-50025 | ||||
| 90179-06070 | ||||
| 90189-05067 | ||||
| 90333-25001 | ||||
| 90467-08033 | ||||
| 90950-01011 | ||||
| 90950-01512 | ||||
| 90950-01544 | ||||
| 90950-01882 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 6553 | ||||

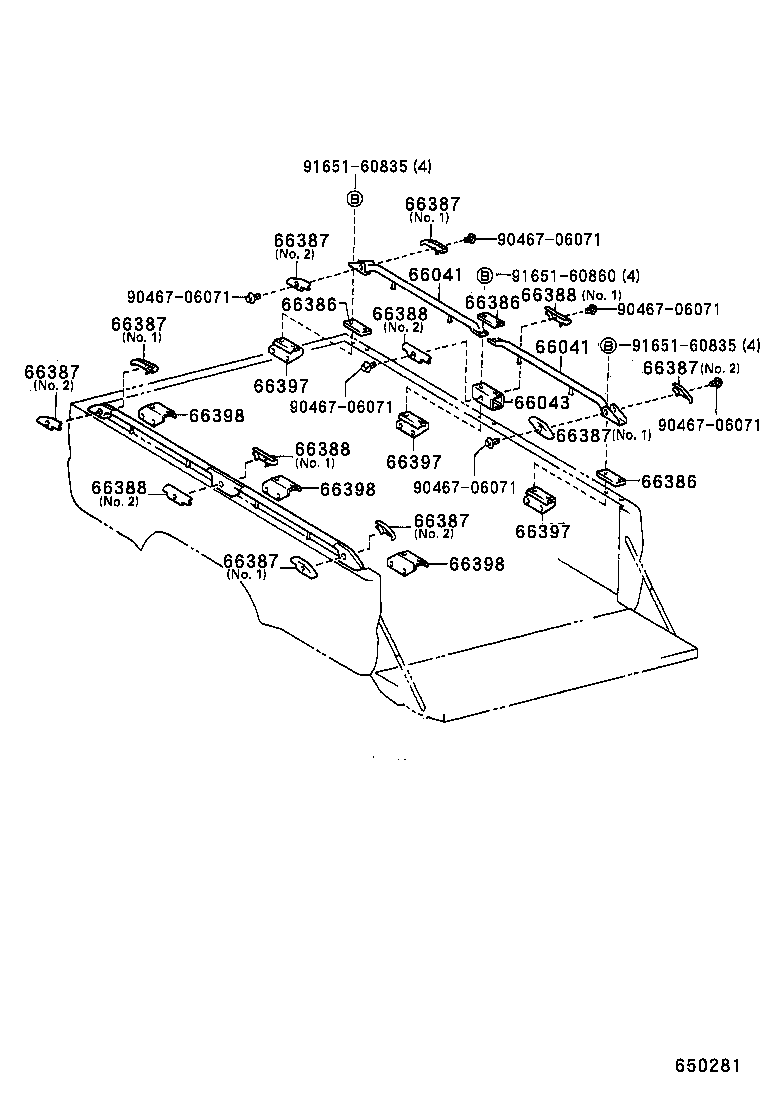

ILLUST NO. 1 OF 2(9906-0208)1SO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66041 - BAR SUB-ASSY, ROPE HOOK | ||||
| 66041-27010 |
KM70,80..1SO |
4 | ||
| 66041 - BAR SUB-ASSY, ROPE HOOK | ||||
| 66041-27010 |
KM70,80..1SO |
4 | ||
| 66043 - BRACKET SUB-ASSY, ROPE HOOK BAR | ||||
| 66043-27010 |
KM70,80..1SO |
2 | ||
| 66386 - PLATE, ROPE HOOK BAR | ||||
| 66386-27020 |
KM70,80..1SO |
6 | ||
| 66386 - PLATE, ROPE HOOK BAR | ||||
| 66386-27020 |
KM70,80..1SO |
6 | ||
| 66386 - PLATE, ROPE HOOK BAR | ||||
| 66386-27020 |
KM70,80..1SO |
6 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66387 - COVER, ROPE HOOK BAR END, NO.1 | ||||
| 66387-27020 |
KM70,80..1SO NO.2 |
4 | ||
| 66387-27010 |
KM70,80..1SO NO.1 |
4 | ||
| 66388 - COVER, ROPE HOOK BAR END, NO.2 | ||||
| 66388-27010 |
KM70,80..1SO NO.1 |
2 | ||
| 66388-27020 |
KM70,80..1SO NO.2 |
2 | ||
| 66388 - COVER, ROPE HOOK BAR END, NO.2 | ||||
| 66388-27010 |
KM70,80..1SO NO.1 |
2 | ||
| 66388-27020 |
KM70,80..1SO NO.2 |
2 | ||
| 66388 - COVER, ROPE HOOK BAR END, NO.2 | ||||
| 66388-27010 |
KM70,80..1SO NO.1 |
2 | ||
| 66388-27020 |
KM70,80..1SO NO.2 |
2 | ||
| 66388 - COVER, ROPE HOOK BAR END, NO.2 | ||||
| 66388-27010 |
KM70,80..1SO NO.1 |
2 | ||
| 66388-27020 |
KM70,80..1SO NO.2 |
2 | ||
| 66397 - RETAINER, ROPE HOOK BAR, RH | ||||
| 66397-27010 |
KM70,80..TS..1SO |
3 | ||
| 66397 - RETAINER, ROPE HOOK BAR, RH | ||||
| 66397-27010 |
KM70,80..TS..1SO |
3 | ||
| 66397 - RETAINER, ROPE HOOK BAR, RH | ||||
| 66397-27010 |
KM70,80..TS..1SO |
3 | ||
| 66398 - RETAINER, ROPE HOOK BAR, LH | ||||
| 66398-27010 |
KM70,80..TS..1SO |
3 | ||
| 66398 - RETAINER, ROPE HOOK BAR, LH | ||||
| 66398-27010 |
KM70,80..TS..1SO |
3 | ||
| 66398 - RETAINER, ROPE HOOK BAR, LH | ||||
| 66398-27010 |
KM70,80..TS..1SO |
3 | ||
| Common parts | ||||
| 90467-06071 | ||||
| 91651-60835 | ||||
| 91651-60860 | ||||
ILLUST NO. 2 OF 2(9906- )KM70..5H ; (9906- )4HC..SPX ; (9906- )KM8#..TS..CBU,IV3 ; (9906-
ﾛ-ﾌﾟ ﾌﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66311-95705 |
CM70,KM70..JL..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ﾊﾟﾜ-ﾘﾌﾄ(ﾄﾖﾀｼﾔﾀｲ) |
6 | ||
| 66311-95703 |
KM70,80..TS..1SO TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
8 | ||
| 66311-95706 |
CM70..JL..5H..IV3;CM80,KM70,80..JL..TS;KM70..SJL..TS..3SO..CBU;CM7#,85,KM75,85..TS..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91651-40620 | ||||
| 91651-40825 | ||||
| 93260-16016 | ||||
