KM70-TYSNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )KM7#..4HC

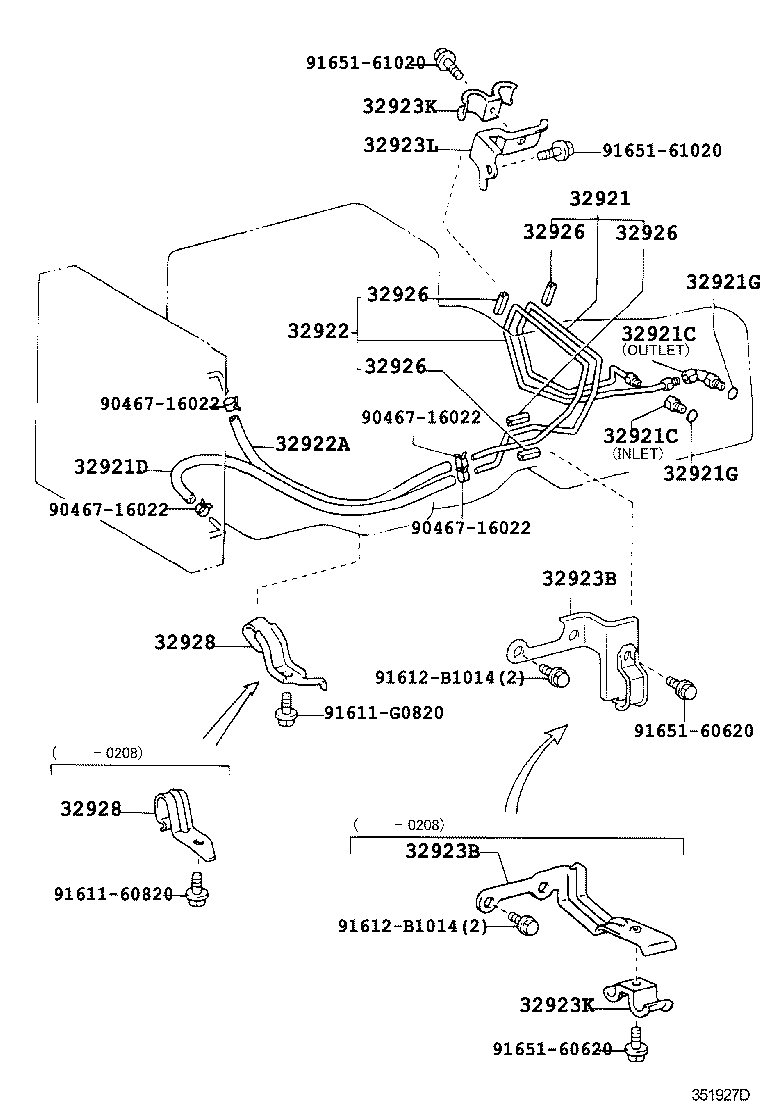

Click highlighted areas on diagram

A42D

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923B 32923B 32923K 32923K 32923L 32926 32926 32926 32926 32928 32928 9046716022 9046716022 9046716022 9046716022 9161160820 91611G0820 91612B1014 91612B1014 9165160620 9165160620 9165161020 9165161020
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-27130

KM7#..4HC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CM7#,85,KM7#..4HC

ｱｳﾄﾚｯﾄ

 1
90404-16021

CM7#,KM7#..4HC

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

CM7#,85,KM7#..4HC

ｱｳﾄﾚｯﾄ

 1
90404-16021

CM7#,KM7#..4HC

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-27290

KM7#..4HC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

CM7#,85,KM7#..4HC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

CM7#,85,KM7#..4HC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-27130

KM7#..4HC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-27280

KM7#..4HC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-27010

KM7#..4HC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-27010

KM7#..4HC

 1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
90462-12044

CM7#,85,KM7#..4HC

 2
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
90462-12044

CM7#,85,KM7#..4HC

 2
32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32923-27040

KM7#..4HC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

CM7#,85,KM7#..4HC

長さ=35,内径=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

CM7#,85,KM7#..4HC

長さ=35,内径=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

CM7#,85,KM7#..4HC

長さ=35,内径=10

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

CM7#,85,KM7#..4HC

長さ=35,内径=10

 4
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-27020

KM7#..4HC

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-27020

KM7#..4HC

 1
Common parts
90467-16022
91611-60820
91611-G0820
91612-B1014
91651-60620
91651-61020
