KM70-TYSNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )CM7#,KM7#..4HC

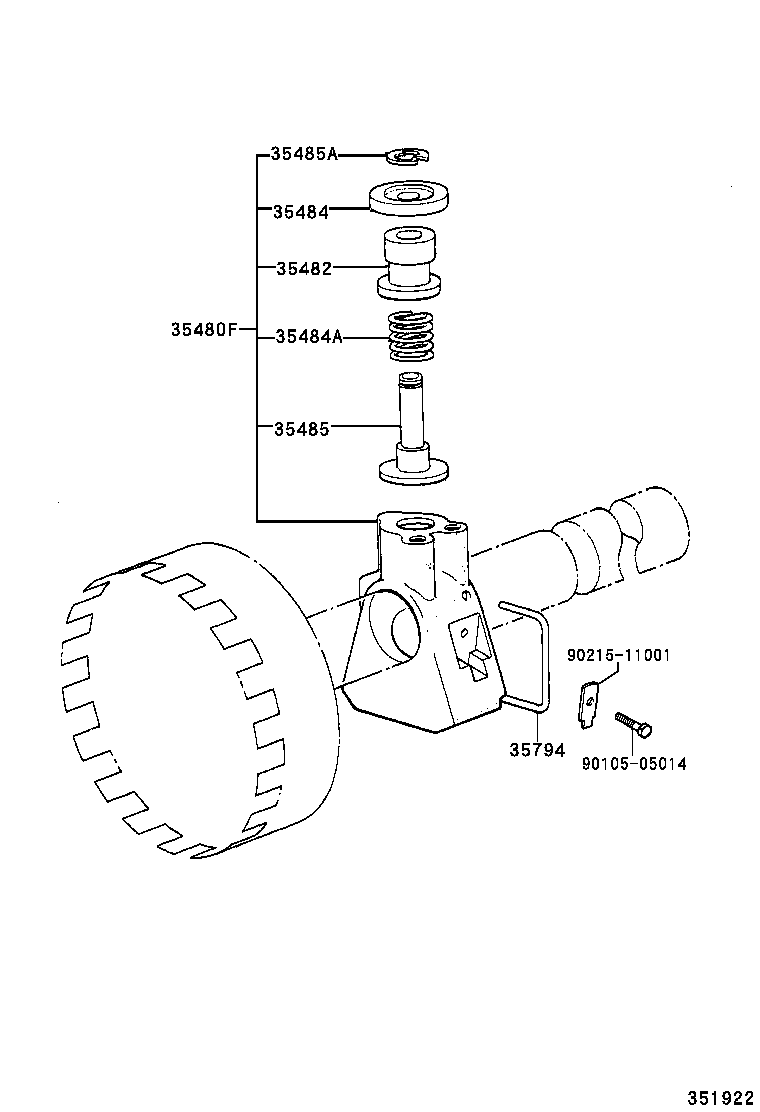

Click highlighted areas on diagram

A42D

diagram 35480F 35482 35484 35484A 35485 35485A 35794 9010505014 9021511001
Part # Description Qty Price
35480F - BODY ASSY, GOVERNOR
35480-28030

KM7#..4HC

 1
35482 - VALVE, GOVERNOR
35482-30030

KM7#..4HC

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

CM85,KM7#..4HC

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09070

KM7#..4HC

 1
35485 - SHAFT, GOVERNOR VALVE
35485-22010

CM7#,KM7#..4HC

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

CM7#,85,KM7#..4HC

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

CM7#,85,KM7#..4HC

 1
Common parts
90105-05014
90215-11001
