KM70-TYSNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )7KE

Click highlighted areas on diagram

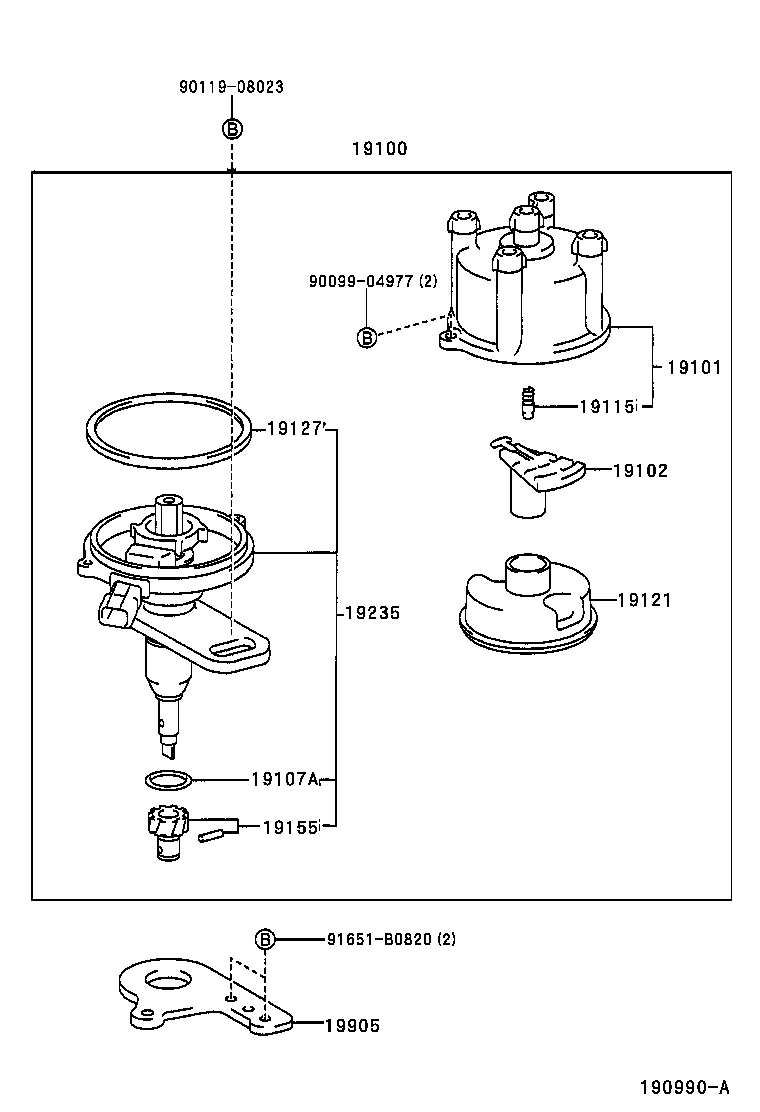

diagram 19100 19101 19102 19107A 19115 19121 19127 19155 19235 19905 9009904977 9011908023 91651B0820
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-13550

7KE..KM7#,8#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-13550

7KE..KM7#,8#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11370

7KE..KM7#,8#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14090

7KE..KM7#,8#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

7KE..KM7#,8#

 1
19121 - COVER, DUST PROOF
19121-74030

7KE..KM7#,8#

 1
19127 - PACKING, DUST PROOF
19127-74040

7KE..KM7#,8#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-13060

7KE..KM7#,8#

 1
19235 - HOUSING, DISTRIBUTOR
19235-13550

7KE..KM7#,8#

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19955-13020

7KE..KM7#,8#

 1
Common parts
90099-04977
90119-08023
91651-B0820
