KM70-TYSNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)7KE

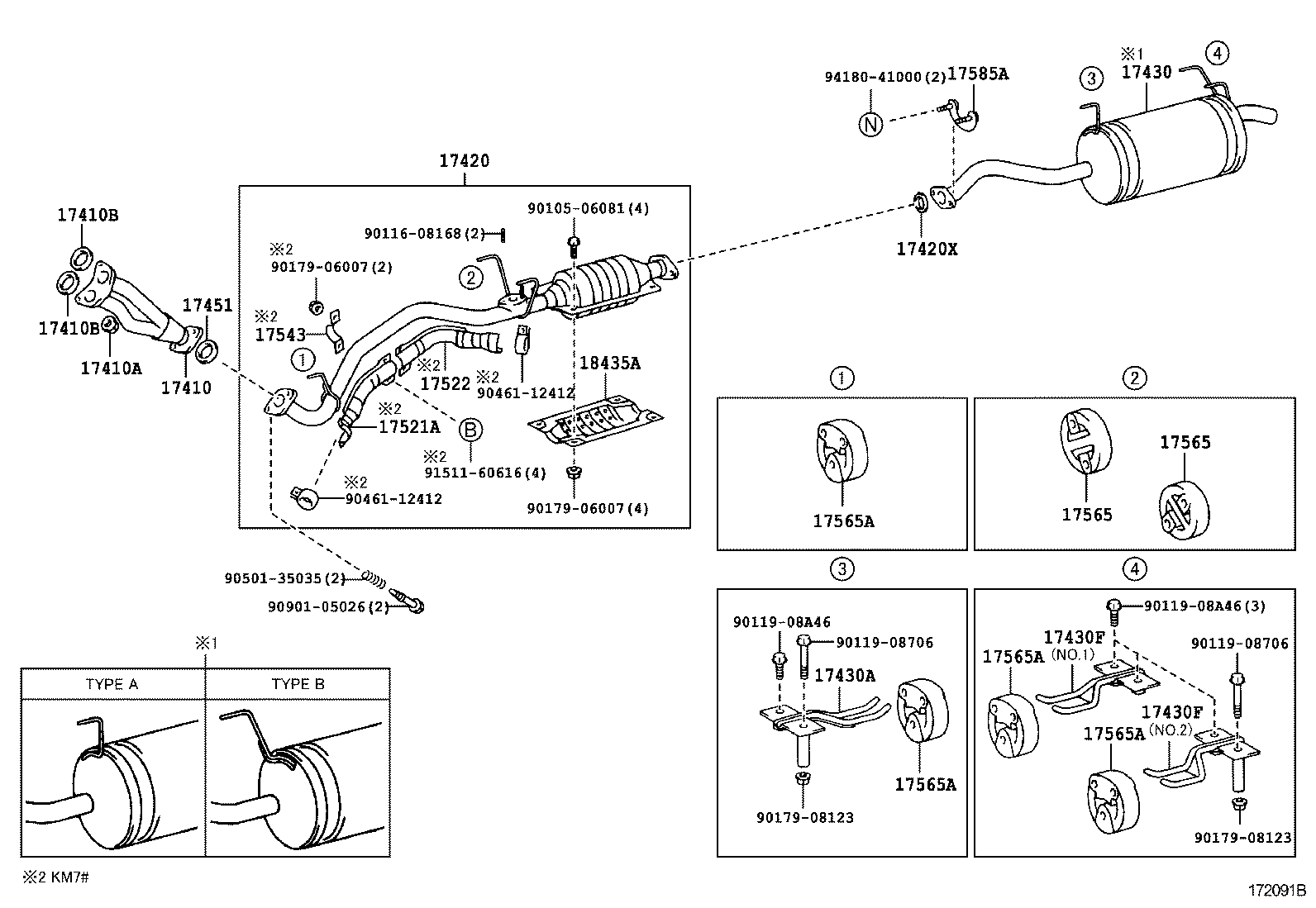

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17420X 17430 17430A 17430F 17430F 17451 17521A 17522 17543 17565 17565 17565A 17565A 17565A 17565A 17585A 18435A 9010506081 9011608168 9011908706 9011908706 9011908A46 9011908A46 9017906007 9017906007 9017908123 9017908123 9046112412 9046112412 9050135035 9090105026 9151160616 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13660

7KE..KM7#,8#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

7KE..KM7#,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06069

7KE..KM7#,8#

 2
17410B - GASKET, EXHAUST PIPE
90917-06069

7KE..KM7#,8#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-13040

7KE..KM70

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06044

3CE,7KE..CM7#,8#,KM7#,8#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13570

7KE..KM7#,8#

TYPE A:ｲﾗｽﾄ参照

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-72031

3CE,7KE..CM7#,8#,KM7#,8#

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17575-64020

3CE,7KE..CM7#,8#,KM7#,8#

NO.1

 1
17573-64040

3CE,7KE..CM7#,8#,KM7#,8#

NO.2

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17575-64020

3CE,7KE..CM7#,8#,KM7#,8#

NO.1

 1
17573-64040

3CE,7KE..CM7#,8#,KM7#,8#

NO.2

 1
17451 - GASKET, EXHAUST PIPE
17451-64030

7KE..KM7#,8#

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-13070

7KE..KM7#

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-13040

7KE..KM7#

 1
17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3
17543-63010

7KE..KM7#

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-46010

3CE,7KE..CM7#,8#,KM7#,8#

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-46010

3CE,7KE..CM7#,8#,KM7#,8#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

3CE,7KE..CM7#,8#,KM7#,8#

 4
17585A - BRACKET, EXHAUST PIPE NO.2 SUPPORT
17585-64060

3CE,7KE..CM7#,8#,KM7#,8#

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11030

7KE..KM7#,8#

 1
Common parts
90105-06081
90116-08168
90119-08706
90119-08A46
90179-06007
90179-08123
90461-12412
90501-35035
90901-05026
91511-60616
94180-41000
