KM70-TYSNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )7KE

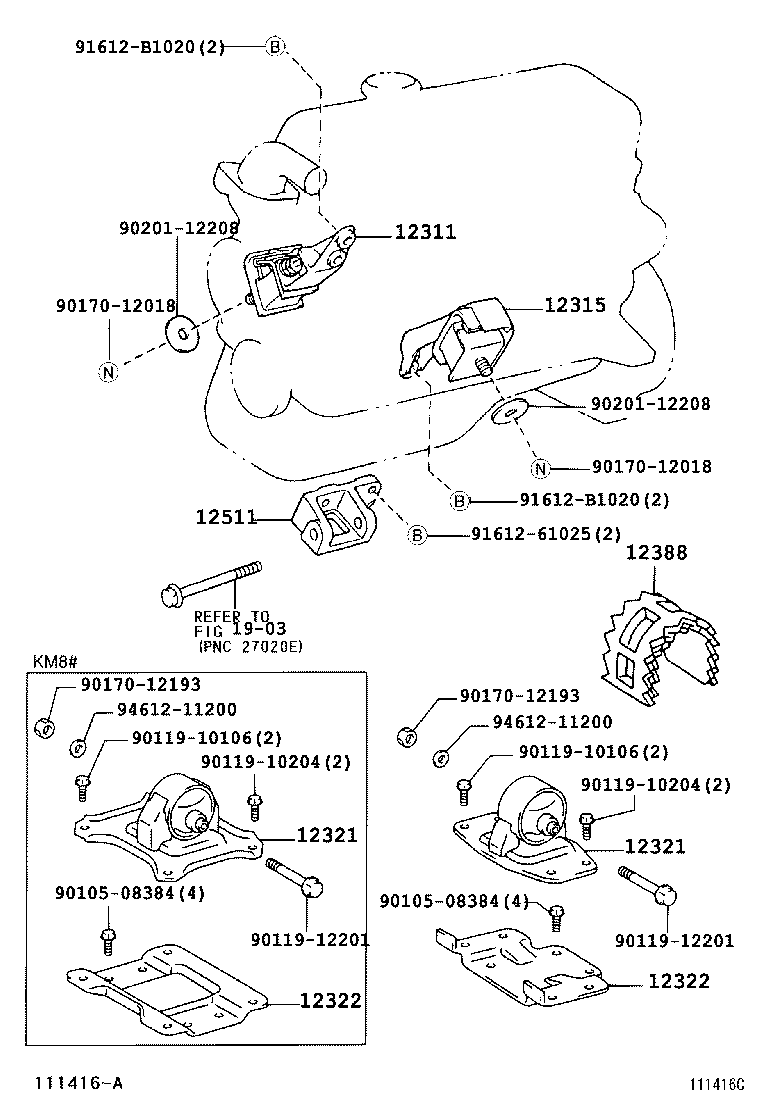

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12388 12511 1903 9010508384 9010508384 9011910106 9011910106 9011910204 9011910204 9011912201 9011912201 9017012018 9017012018 9017012193 9017012193 9020112208 9020112208 9161261025 91612B1020 91612B1020 9461211200 9461211200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-13160

7KE..KM7#,8#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13171

7KE..KM7#,8#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64200

7KE..KM7#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64200

7KE..KM7#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64020

7KE..KM7#..4HC

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-64020

7KE..KM7#..4HC

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

7KE..KM7#,8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-13030

7KE..KM7#,8#

 1
Common parts
90105-08384
90119-10106
90119-10204
90119-12201
90170-12018
90170-12193
90201-12208
91612-61025
91612-B1020
94612-11200
Linked diagrams
1903
