KM70-TYSDE (2002)

Toyota Lite/Townace

Production Aug 2002 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )KM7#,8#

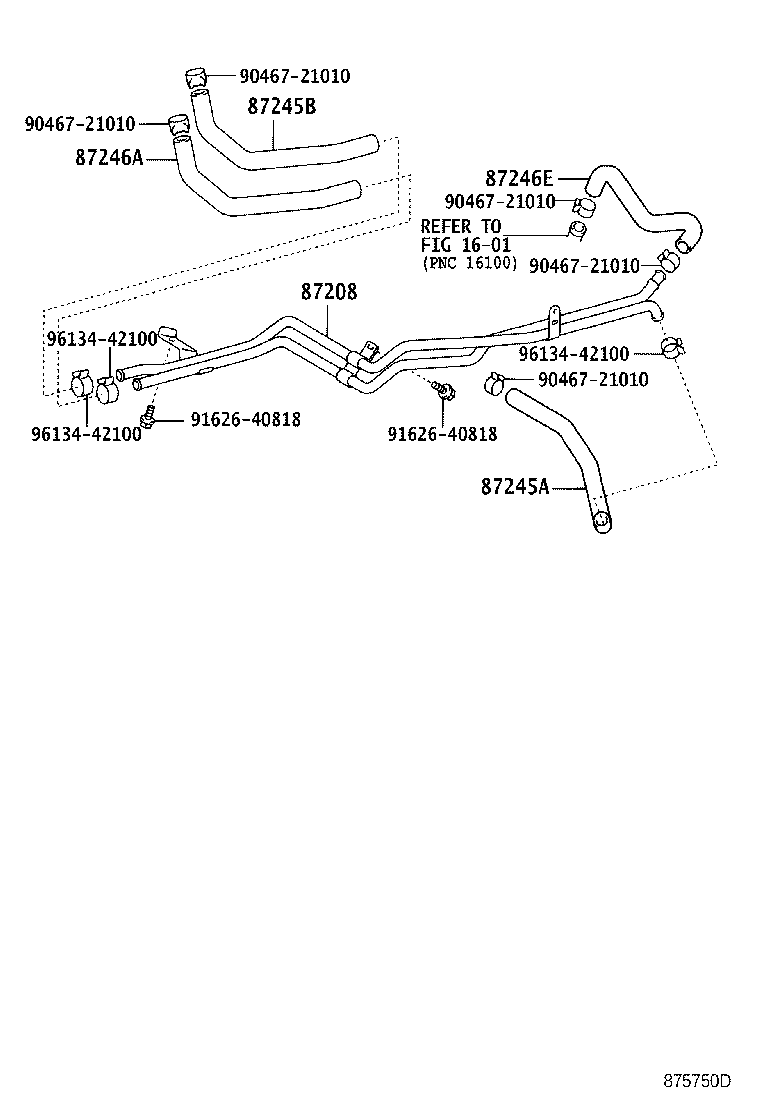

Click highlighted areas on diagram

diagram 1601 87208 87245A 87245B 87246A 87246E 9046721010 9046721010 9046721010 9046721010 9046721010 9162640818 9162640818 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-27040

KM7#,8#

 1
87208-27020

KM7#,8#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-27060

KM7#,8#

 1
87245-27060

KM7#,8#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

KM7#,8#

*H,L=460

 1
87245-27080

KM7#,8#

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

KM7#,8#

*H,L=460

 1
87245-27080

KM7#,8#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-27070

KM7#,8#

 1
87245-27070

KM7#,8#

 1
Common parts
90467-21010
91626-40818
96134-42100
Linked diagrams
1601
