KM70-TYSDE (2002)

Toyota Lite/Townace

Production Aug 2002 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0408)

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81551 81555 81561 81565 9017906159
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-60442

KM7#,8#

 1
81551-27051

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
81551-27051

KM70..1SO

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-27051

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
81555-27051

KM70..1SO

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-60372

KM7#,8#

 1
81561-27051

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
81561-27051

KM70..1SO

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-27051

KM70..1SO

 1
81555-27051

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
Common parts
90179-06159

(0408- )

Click highlighted areas on diagram

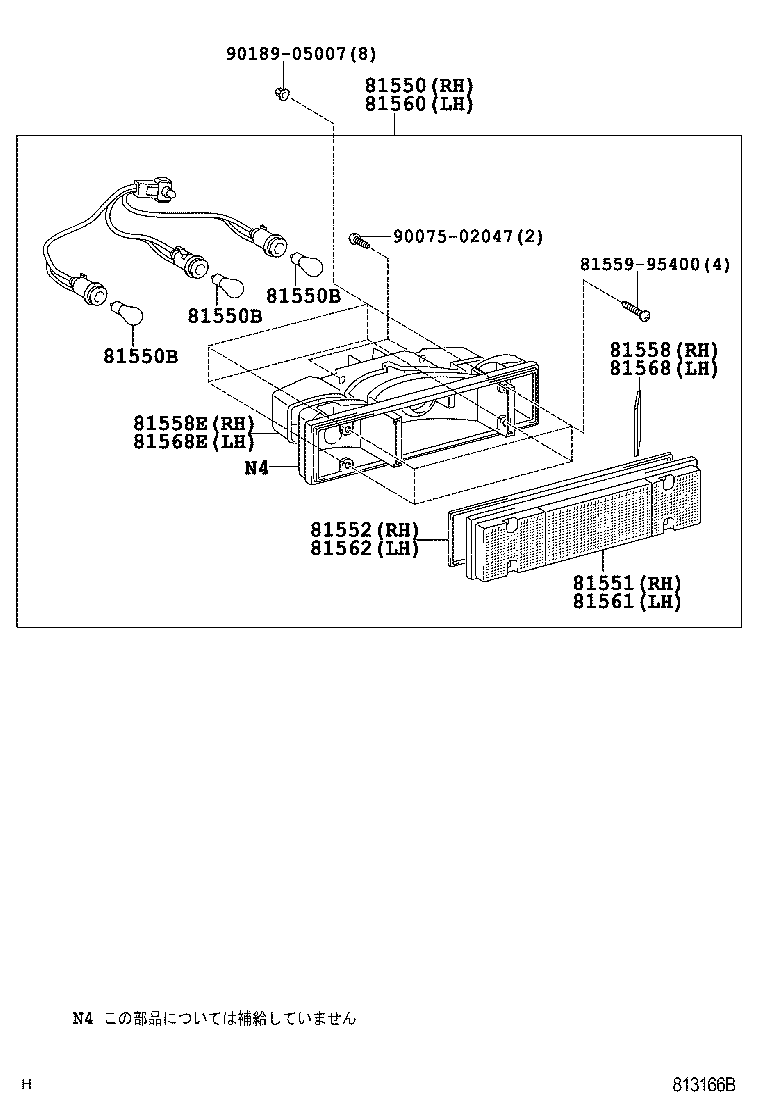

diagram 81550 81550B 81550B 81550B 81551 81552 81558 81558E 8155995400 81560 81561 81562 81568 81568E 9007502047 9018905007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-27070

KM7#,8#..CBU

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-21210

CM7#,8#,KM7#,8#

12V 21/5W

 2
99132-11210

CM7#,8#,KM7#,8#

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-60442

KM7#,8#

 1
81551-27051

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
81551-27051

KM70..1SO

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

KM7#,8#

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-95403

KM7#,8#

 1
81558E - COVER, REAR COMBINATION LAMP, RH
81558-27070

KM7#,8#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-27040

KM7#,8#..CBU

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-60372

KM7#,8#

 1
81561-27051

KM70..1SO;KM70..GUT;CM80,KM80..T1

 1
81561-27051

KM70..1SO

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

KM7#,8#

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-95403

KM7#,8#

 1
81568E - COVER, REAR COMBINATION LAMP, LH
81568-27040

KM7#,8#

 1
Common parts
81559-95400
90075-02047
90189-05007
