KM70-TYQNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

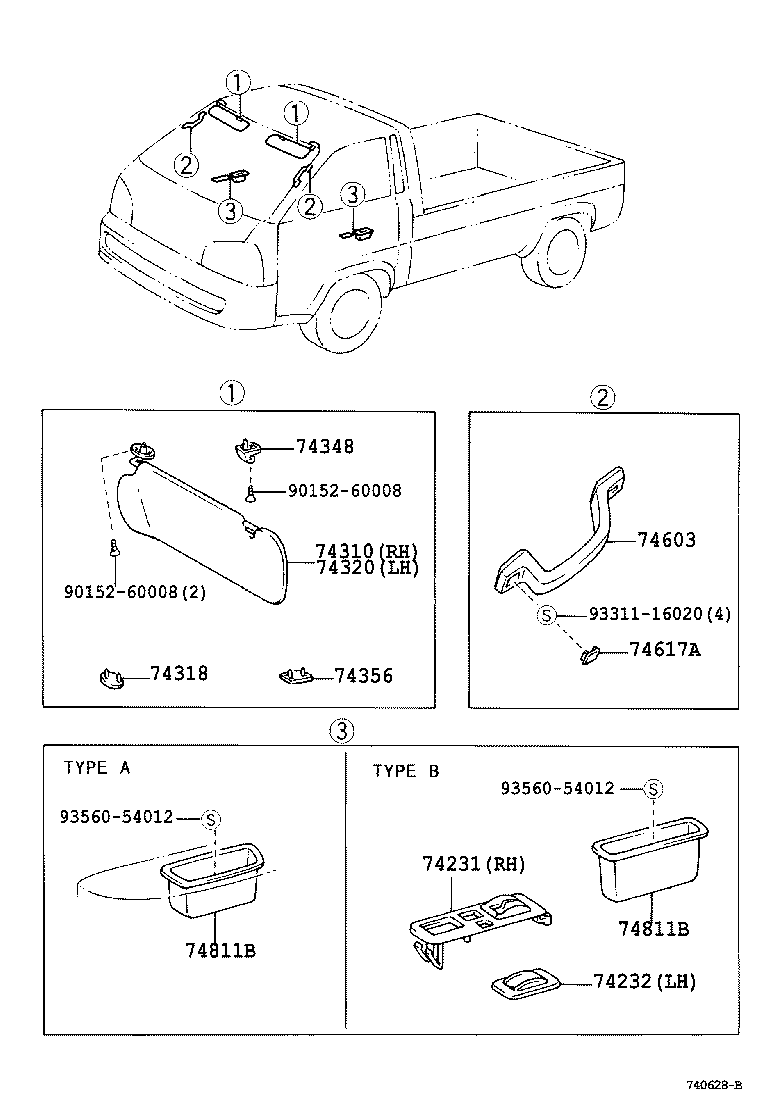

Click highlighted areas on diagram

diagram 74231 74232 74310 74318 74320 74348 74356 74603 74617A 74811B 74811B 9015260008 9015260008 9331116020 9356054012 9356054012
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-27020B0

KM70,80..SPX

DK.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-87002B1

KM70,80..SPX

DK.CHARCOAL,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-27010B0

CM7#,KM7#

ｱﾘ(*80),MD.CHARCOAL,TRIM1#

 1
74310-27040B0

CM7#,KM7#

MD.CHARCOAL,TRIM1#

 1
74318 - COVER, VISOR BRACKET, LH
74318-25010B1

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
74348 - HOLDER, VISOR
74348-12020B4

CM7#,8#,KM7#,8#

ｱﾘ(ﾊﾞｲｻﾞ = ｼﾞﾖｼﾕｾｷ),MD.CHARCOAL,TRIM1#

 2
74348-12020B4

CM7#,8#,KM7#,8#

ｱﾘ(ﾊﾞｲｻﾞ = ｳﾝﾃﾝｾｷ ﾉﾐ),MD.CHARCOAL,TRIM1#

 1
74356 - COVER, VISOR HOLDER HOLE
74356-25010B1

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-16010B2

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#,左側

 1
74603-95702B2

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#,右側

 1
74617A - PLUG, ASSIST GRIP
74617-16010P8

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 4
74811B - HANDLE, DOOR PULL
74811-87001B1

KM70,80..SPX

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.CHARCOAL,TRIM1#

 2
74811B - HANDLE, DOOR PULL
74811-87001B1

KM70,80..SPX

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.CHARCOAL,TRIM1#

 2
Common parts
90152-60008
93311-16020
93560-54012
