KM70-TYQNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)CM7#,KM7# ; (0208- )CM7#,KM7#..CBU,IV3

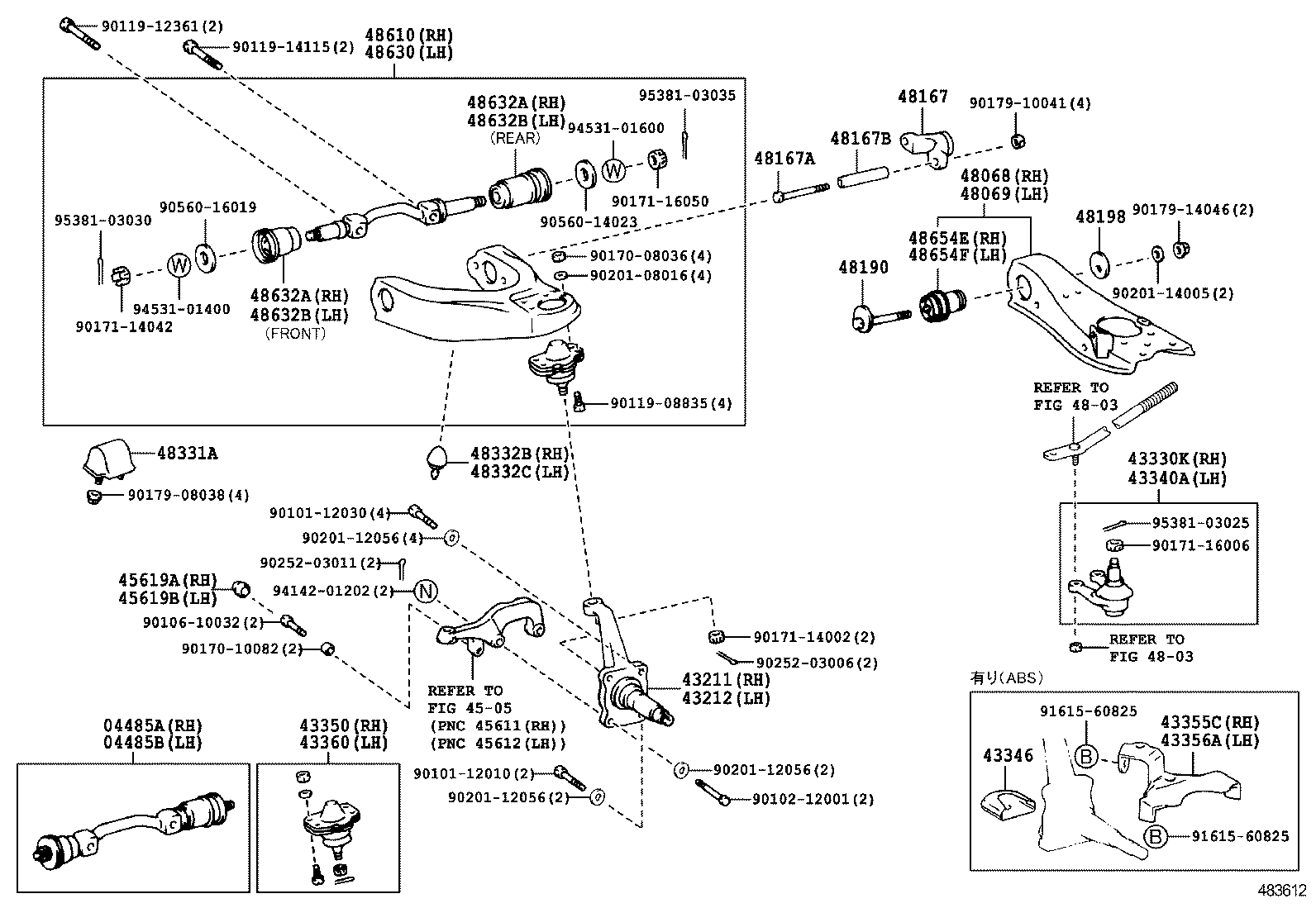

Click highlighted areas on diagram

diagram 04485A 04485B 43211 43212 43330K 43340A 43346 43350 43355C 43356A 43360 4505 45619A 45619B 4803 4803 48068 48069 48167 48167A 48167B 48190 48198 48331A 48332B 48332C 48332C 48610 48630 48632A 48632A 48632B 48632B 48654E 48654F 9010112010 9010112030 9010212001 9010610032 9011908835 9011912361 9011914115 9017008036 9017010082 9017114002 9017114042 9017116006 9017116050 9017908038 9017910041 9017914046 9020108016 9020112056 9020112056 9020112056 9020114005 9025203006 9025203011 9056014023 9056016019 9161560825 9161560825 9414201202 9453101400 9453101600 9538103025 9538103030 9538103035
Part # Description Qty Price
04485A - SHAFT KIT, FRONT SUSPENSION UPPER ARM, RH
04485-28050

CM7#,KM7#

 1
04485B - SHAFT KIT, FRONT SUSPENSION UPPER ARM, LH
04485-28050

CM7#,KM7#

 1
43211 - KNUCKLE, STEERING, RH
43211-28021

CM7#,KM7#

 1
43211-28070

CM7#,KM7#

ｱﾘ(ABS)

 1
43212 - KNUCKLE, STEERING, LH
43212-28050

CM7#,KM7#

ｱﾘ(ABS)

 1
43211-28021

CM7#,KM7#

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29175

CM7#,KM7#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29175

CM7#,KM7#

 1
43346 - PROTECTOR, LOWER BALL JOINT DUST COVER
43346-28012

CM7#,KM7#

 2
43350 - JOINT ASSY, FRONT UPPER BALL, RH
43350-29076

CM7#,KM7#

 1
43355C - DEFLECTOR, LOWER ARM ICE, RH NO.1
43355-28021

CM7#,KM7#

 1
43356A - DEFLECTOR, LOWER ARM ICE, LH NO.1
43355-28021

CM7#,KM7#

 1
43360 - JOINT ASSY, FRONT UPPER BALL, LH
43350-29076

CM7#,KM7#

 1
45619A - COVER, STEERING KNUCKLE STOPPER, RH
45619-14020

CM7#,8#,KM7#,8#

 1
45619B - COVER, STEERING KNUCKLE STOPPER, LH
45619-14020

CM7#,8#,KM7#,8#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28070

CM7#,KM7#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28070

CM7#,KM7#

 1
48167 - ARM, TORQUE
48106-27040

CM7#,KM7#

 2
48167A - BOLT(FOR TORQUE ARM SETTING)
90101-10177

CM7#,KM7#

 4
48167B - TUBE(FOR TORQUE ARM SETTING BOLT)
90440-17029

CM7#,KM7#

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-27020

CM7#,KM7#

 2
48198 - CAM, CAMBER ADJUST, NO.2
48198-27010

CM7#,KM7#

 2
48331A - BUMPER, FRONT SPRING, NO.1
48331-27051

CM7#,KM7#

 2
48332B - BUMPER, FRONT SPRING, NO.2 RH
48332-35020

CM7#,8#,KM7#,8#

 1
48332C - BUMPER, FRONT SPRING, NO.2 LH
48332-35020

CM7#,8#,KM7#,8#

 1
48332C - BUMPER, FRONT SPRING, NO.2 LH
48332-35020

CM7#,8#,KM7#,8#

 1
48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-28030

CM7#,KM7#

 1
48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-28030

CM7#,KM7#

 1
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-28050

CM7#,KM7#

ﾌﾛﾝﾄ

 1
48635-28060

CM7#,KM7#

ﾘﾔ

 1
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-28050

CM7#,KM7#

ﾌﾛﾝﾄ

 1
48635-28060

CM7#,KM7#

ﾘﾔ

 1
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-28050

CM7#,KM7#

ﾌﾛﾝﾄ

 1
48635-28060

CM7#,KM7#

ﾘﾔ

 1
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-28050

CM7#,KM7#

ﾌﾛﾝﾄ

 1
48635-28060

CM7#,KM7#

ﾘﾔ

 1
48654E - BUSH, FRONT LOWER ARM, NO.1 RH
48061-27011

CM7#,KM7#

 1
48654F - BUSH, FRONT LOWER ARM, NO.1 LH
48061-27011

CM7#,KM7#

 1
Common parts
90101-12010
90101-12030
90102-12001
90106-10032
90119-08835
90119-12361
90119-14115
90170-08036
90170-10082
90171-14002
90171-14042
90171-16006
90171-16050
90179-08038
90179-10041
90179-14046
90201-08016
90201-12056
90201-14005
90252-03006
90252-03011
90560-14023
90560-16019
91615-60825
94142-01202
94531-01400
94531-01600
95381-03025
95381-03030
95381-03035
Linked diagrams
4505
4803
