KM70-TYQNE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)7KE

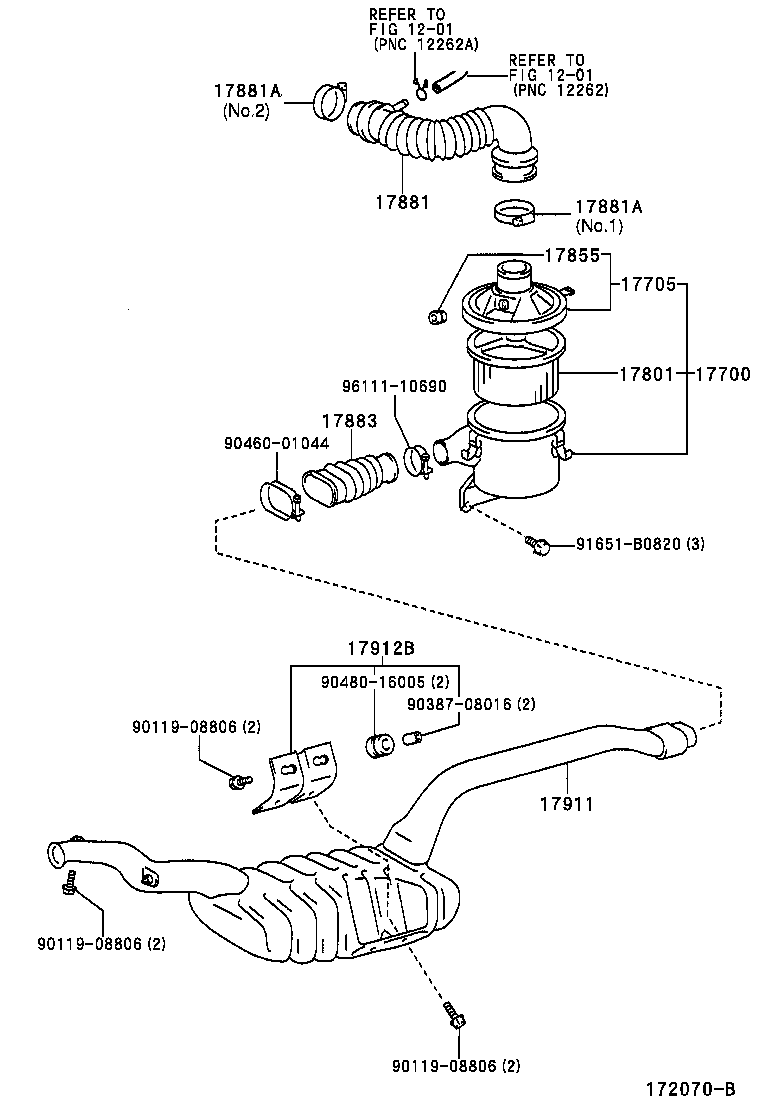

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17801 17855 17881 17881A 17881A 17883 17911 17912B 9011908806 9011908806 9011908806 9038708016 9046001044 9048016005 91651B0820 9611110690
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13860

7KE..KM7#,8#

 1
17700-13861

7KE..KM7#,8#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13260

7KE..KM7#,8#

 1
17705-13261

7KE..KM7#,8#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050

7KE..KM7#,8#

 1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-67010

7KE..KM7#,8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13200

7KE..KM7#,8#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-77002

7KE..KM7#,8#

NO.1

 1
90460-73003

7KE..KM7#,8#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-77002

7KE..KM7#,8#

NO.1

 1
90460-73003

7KE..KM7#,8#

NO.2

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-13020

7KE..KM7#,8#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-27010

7KE..KM7#,8#

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52854-27010

7KE..KM7#,8#

 1
Common parts
90119-08806
90387-08016
90460-01044
90480-16005
91651-B0820
96111-10690
Linked diagrams
1201
