KM70-TYQDE (1999)
Toyota Lite/Townace
ILLUST NO. 1 OF 3(9906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-27011 |
CM7#,8#,KM7#,8# |
2 | ||
| 04483-27011 |
CM7#,8#,KM7#,8# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
KM70..JL,SJL;CM7#,8#,KM75,8# |
2 | ||
| 04484-26030 |
CM7#,8#,KM7#,8# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-27160 |
CM7#,KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 48046-27160 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 48046-27150 |
CM7#,KM7# |
1 | ||
| 48046-27150 |
CM7#,KM7#..CBU,IV3 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14065 |
CM7#,KM75;KM70..JL,T1;KM70..TB,TJ;KM70..SJL..TS..3SO 長さ=160 |
4 | ||
| 90117-14062 |
CM70,KM70 長さ=145 |
4 | ||
| 90117-14042 |
CM70,KM70..SJL..(GUT,TB,TS) 長さ=138 |
4 | ||
| 90117-14065 |
CM7#,KM7#..CBU,IV3 長さ=160 |
4 | ||
| 90117-14062 |
CM7#,KM7#..JL,SJL,SJLC 長さ=145 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-27120 |
CM7#,KM7# |
1 | ||
| 48047-27120 |
CM7#,KM7#..CBU,IV3 |
1 | ||
| 48047-27130 |
CM7#,KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 48047-27130 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
KM70..JL,SJL;CM7#,8#,KM75,8# |
4 | ||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
KM70..JL,SJL;CM7#,8#,KM75,8# |
4 | ||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 90385-18046 |
CM7#,8#,KM7#,8# |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27091 |
CM70,8#,KM70,8#..JL |
2 | ||
| 48341-27101 |
CM7#,80,KM7#,80..SJL,SJLC,T1 |
2 | ||
| 48341-27091 |
CM7#,8#,KM7#,8#..JL |
2 | ||
| 48341-27101 |
CM7#,KM7#..SJL |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80627 |
CM70,KM70..JL,T1 |
1 | ||
| 48531-80628 |
CM7#,KM7#..SJL,SJLC |
1 | ||
| 48531-80706 |
KM7#..SJL ﾏｰｸ 48531−27410 |
1 | ||
| 48531-80705 |
KM70..JL ﾏｰｸ 48531−27400 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
CM7#,8#,KM7#,8# |
4 | ||
| 90385-16001 |
CM7#,8#,KM7#,8# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
CM7#,8#,KM7#,8# |
4 | ||
| 90385-16001 |
CM7#,8#,KM7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM7#,8#,KM7#,8# |
4 | ||
| 90948-03004 |
CM7#,8#,KM7#,8# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM7#,8#,KM7#,8# |
4 | ||
| 90948-03004 |
CM7#,8#,KM7#,8# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80705 |
KM70..JL ﾏｰｸ 48531−27400 |
1 | ||
| 48531-80627 |
CM70,KM70..JL,T1 |
1 | ||
| 48531-80706 |
KM7#..SJL ﾏｰｸ 48531−27410 |
1 | ||
| 48531-80628 |
CM7#,KM7#..SJL,SJLC |
1 | ||
| Common parts | ||||
| 48444-27020 | ||||
| 90119-08336 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 94621-11400 | ||||

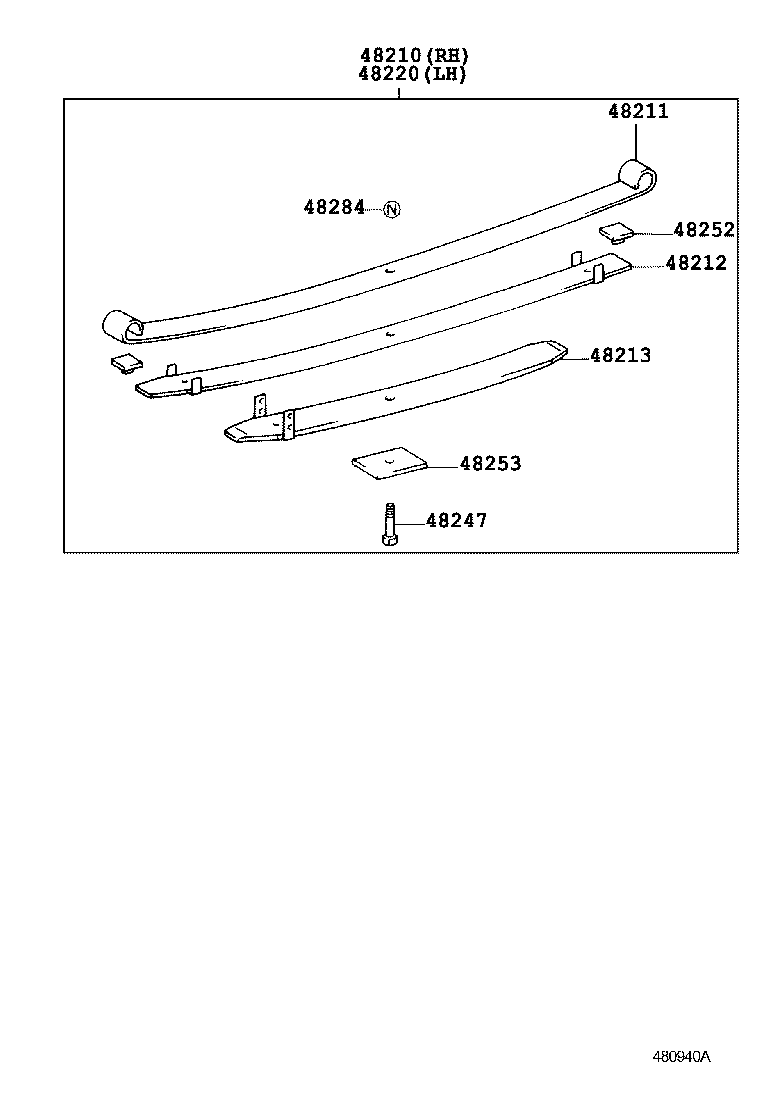

ILLUST NO. 2 OF 3(9906-0208)CM70,KM70..JL,SJL..GUT,TB,TS
3-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48211-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48211-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48202-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48202-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48247-36020 |
CM70,KM70..JL;CM80,KM80..T1 4-LEAF(TYPE C);3-LEAF(TYPE A) |
2 | ||
| 48247-25170 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48247-36060 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48216-35390 |
KM70..TJ;CM70..JL..4HC..IV3;CM70,KM70..(JL,T1)..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
CM75..CBU;CM70,8#,KM7#,8# |
2 | ||
| 48284-37130 |
CM7#,8#,KM7#,8# |
2 | ||
ILLUST NO. 2 OF 3(9906-0208)CM7#,KM75 ; (9906-0208)KM70..JL,T1 ;(9906-0208)KM70..SJL..3SO
4-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48211-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48211-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48202-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48202-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48247-36020 |
CM70,KM70..JL;CM80,KM80..T1 4-LEAF(TYPE C);3-LEAF(TYPE A) |
2 | ||
| 48247-25170 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48247-36060 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48216-35390 |
KM70..TJ;CM70..JL..4HC..IV3;CM70,KM70..(JL,T1)..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
CM75..CBU;CM70,8#,KM7#,8# |
2 | ||
| 48284-37130 |
CM7#,8#,KM7#,8# |
2 | ||

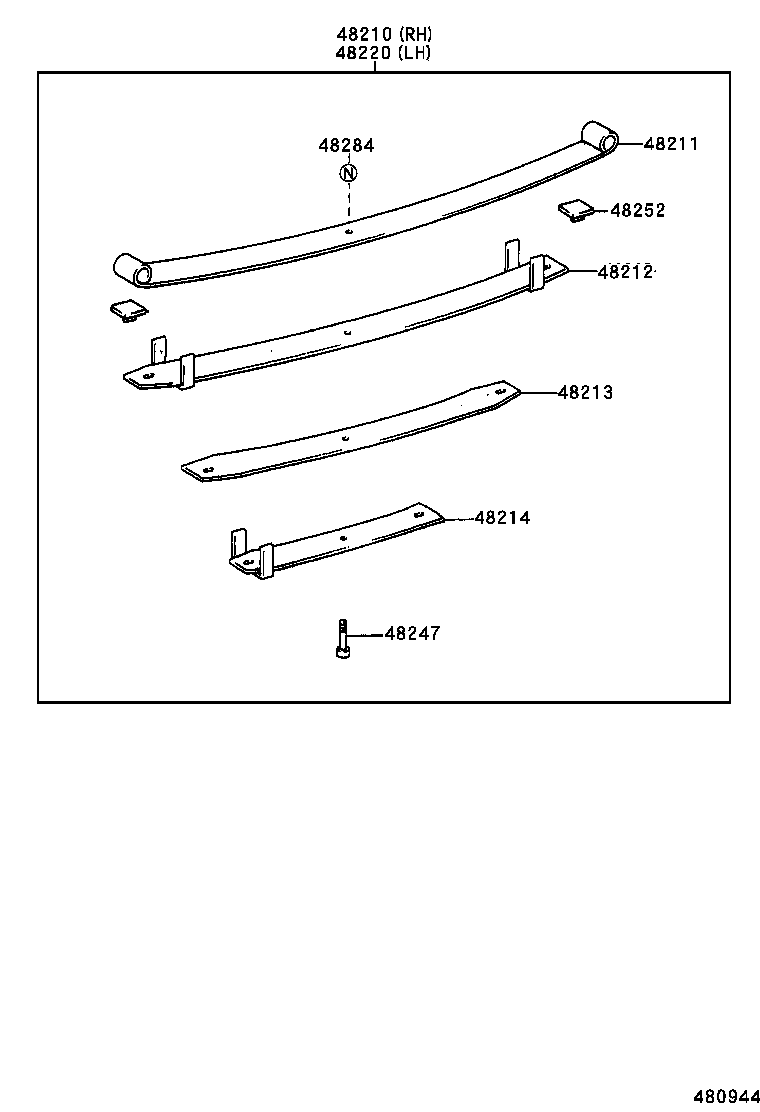

ILLUST NO. 2 OF 3(9906-0208)CM85 ; (9906-0208)CM80,KM8#..TS..3SO; (0208-0408)CM70,KM70..JL ; (0408-
4-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48211-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48211-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48202-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48202-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48247-36020 |
CM70,KM70..JL;CM80,KM80..T1 4-LEAF(TYPE C);3-LEAF(TYPE A) |
2 | ||
| 48247-25170 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48247-36060 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48216-35390 |
KM70..TJ;CM70..JL..4HC..IV3;CM70,KM70..(JL,T1)..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
CM75..CBU;CM70,8#,KM7#,8# |
2 | ||
| 48284-37130 |
CM7#,8#,KM7#,8# |
2 | ||
ILLUST NO. 2 OF 3(9906-0208)CM80,KM80 ; (0208-0408)CM70,KM70..SJL; (0408- )KM70..SJL
4-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48211-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48211-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48202-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48202-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48247-36020 |
CM70,KM70..JL;CM80,KM80..T1 4-LEAF(TYPE C);3-LEAF(TYPE A) |
2 | ||
| 48247-25170 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48247-36060 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
CM75..CBU;CM70,8#,KM7#,8# |
2 | ||
| 48284-37130 |
CM7#,8#,KM7#,8# |
2 | ||
ILLUST NO. 2 OF 3(9906-0208)CM85,KM85..TS ; (9906-0208)CM80,KM80..TS..3SO..CBU ; (0208-0408)CM7#,80,
5-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48211-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48211-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48202-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48202-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48247-36020 |
CM70,KM70..JL;CM80,KM80..T1 4-LEAF(TYPE C);3-LEAF(TYPE A) |
2 | ||
| 48247-25170 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48247-36060 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
CM75..CBU;CM70,8#,KM7#,8# |
2 | ||
| 48284-37130 |
CM7#,8#,KM7#,8# |
2 | ||
ILLUST NO. 2 OF 3(0208-0408)CM75,8#,KM75,80..JL ; (0208- )KM85..5H ; (0408- )KM75,80..JL ; (05
5-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48211-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48211-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48211-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48202-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27492 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48212-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27760 |
CM70,KM70..JL 3-LEAF(TYPE A) |
2 | ||
| 48202-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48202-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-27780 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48203-27770 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27493 |
CM70,KM70..SJL..(GUT,TB,TS) 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27770 |
CM70,KM70..JL 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27760 |
CM70,KM70..JL 3枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-27780 |
CM70,KM70..SJL 4枚ﾘｰﾌ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35480 |
CM70,KM70..SJL..(GUT,TB,TS) 3-LEAF(TYPE A) |
2 | ||
| 48247-36020 |
CM70,KM70..JL;CM80,KM80..T1 4-LEAF(TYPE C);3-LEAF(TYPE A) |
2 | ||
| 48247-25170 |
CM70,KM70..SJL 4-LEAF(TYPE C) |
2 | ||
| 48247-36060 |
CM70,KM70..JL 4-LEAF(TYPE B) |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM7#,8#,KM7#,8# |
4 | ||
| 48252-26070 |
CM70,KM70;KM85..4HC;CM8#,KM8#..TB;CM85,KM85..IV6;CM75,80,KM75,80..JL..(IV3,IV6) |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48216-35390 |
KM70..TJ;CM70..JL..4HC..IV3;CM70,KM70..(JL,T1)..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
CM75..CBU;CM70,8#,KM7#,8# |
2 | ||
| 48284-37130 |
CM7#,8#,KM7#,8# |
2 | ||
ILLUST NO. 3 OF 3(9906- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
