KM70-TSQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

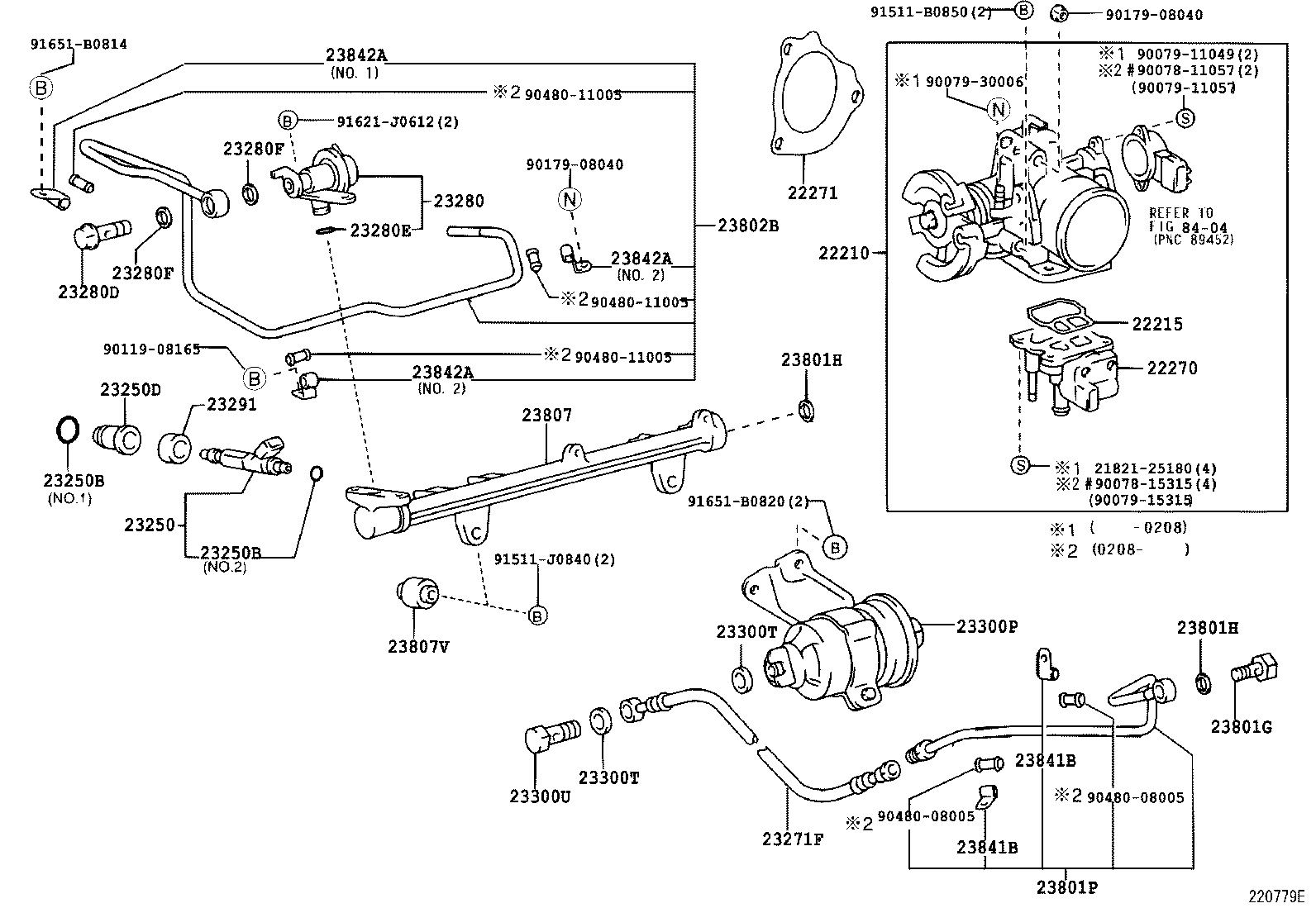

ILLUST NO. 1 OF 2(9906- )7KE

Click highlighted areas on diagram

diagram 2182125180 22210 22215 22270 22271 23250 23250B 23250B 23250D 23271F 23280 23280D 23280E 23280F 23280F 23291 23300P 23300T 23300T 23300U 23801G 23801H 23801H 23801P 23802B 23807 23807V 23841B 23841B 23842A 23842A 23842A 8404 9007811057 9007815315 9007911049 9007911057 9007915315 9007930006 9011908165 9017908040 9017908040 9048008005 9048008005 9048011005 9048011005 9048011005 91511B0850 91511J0840 91621J0612 91651B0814 91651B0820
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-06020

7KE..KM7#,8#

 1
22215 - GASKET, THROTTLE BODY COVER
22215-74400

7KE..KM7#,8#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-06020

7KE..KM7#,8#

ﾏｰｸ 22270−06020

 1
22270-13020

7KE..KM7#,8#

ﾏｰｸ 22270−13020

 1
22271 - GASKET, THROTTLE BODY
22271-74070

7KE..KM7#,8#

 1
23250 - INJECTOR ASSY, FUEL
23209-13030

7KE..KM7#,8#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

7KE..KM7#,8#

NO.2

 4
90301-19006

7KE..KM7#,8#

NO.1

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

7KE..KM7#,8#

NO.2

 4
90301-19006

7KE..KM7#,8#

NO.1

 4
23250D - SPACER(FOR FUEL INJECTOR)
90561-10018

7KE..KM7#,8#

 4
23271F - HOSE, FUEL
23271-13040

7KE..KM7#,8#

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-13020

7KE..KM7#,8#

 1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-08004

7KE..KM7#,8#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

7KE..KM7#,8#

 1
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-08014

7KE..KM7#,8#

 2
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-08014

7KE..KM7#,8#

 2
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

7KE..KM7#,8#

 4
23300P - FILTER, FUEL(FOR EFI)
23030-13020

7KE..KM7#,8#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

7KE..KM7#,8#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

7KE..KM7#,8#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12029

7KE..KM7#,8#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

7KE..KM7#,8#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

7KE..KM7#,8#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

7KE..KM7#,8#

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-13170

7KE..KM7#,8#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-13011

7KE..KM7#,8#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-13010

7KE..KM7#,8#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08009

7KE..KM7#,8#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-13030

7KE..KM7#,8#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-13030

7KE..KM7#,8#

 2
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23847-13010

7KE..KM7#,8#

NO.1

 1
23842-13020

7KE..KM7#,8#

NO.2

 2
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23847-13010

7KE..KM7#,8#

NO.1

 1
23842-13020

7KE..KM7#,8#

NO.2

 2
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23847-13010

7KE..KM7#,8#

NO.1

 1
23842-13020

7KE..KM7#,8#

NO.2

 2
Common parts
21821-25180
90078-11057
90078-15315
90079-11049
90079-11057
90079-15315
90079-30006
90119-08165
90179-08040
90480-08005
90480-11005
91511-B0850
91511-J0840
91621-J0612
91651-B0814
91651-B0820
Linked diagrams
8404

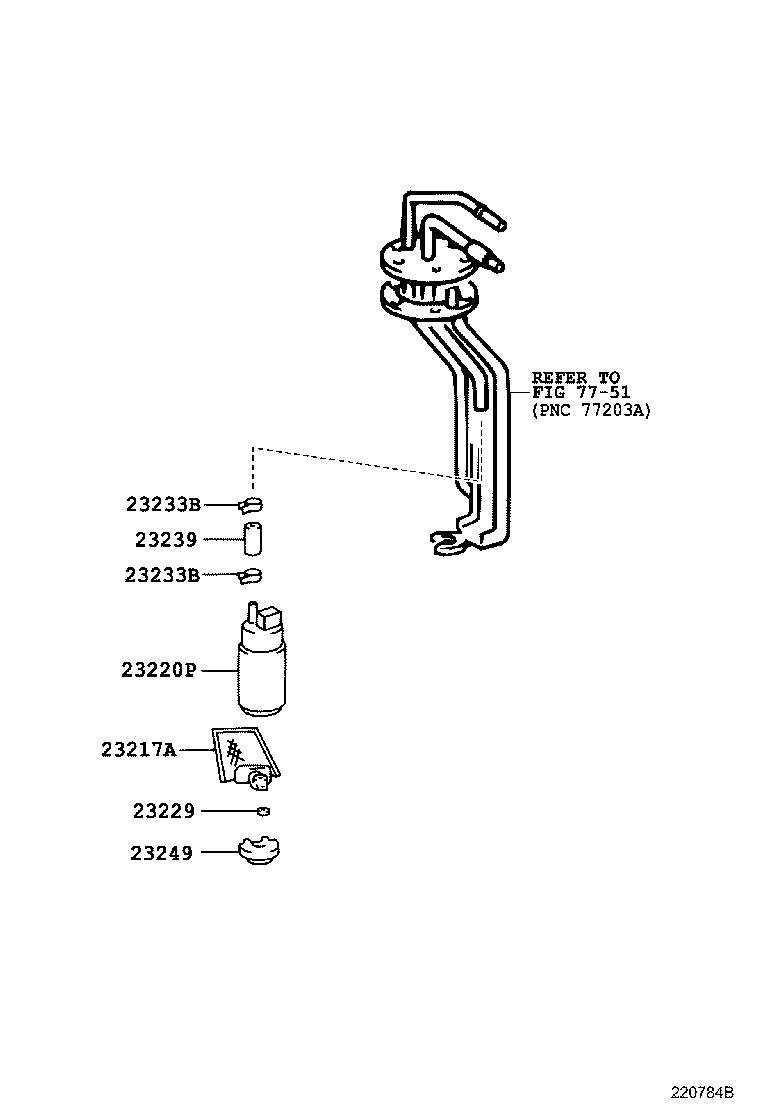

ILLUST NO. 2 OF 2(9906- )7KE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233B 23233B 23239 23249 7751
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-76040

7KE..KM7#,8#

 1
23220P - PUMP ASSY, FUEL
23221-13020

7KE..KM7#,8#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

7KE..KM7#,8#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

7KE..KM7#,8#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

7KE..KM7#,8#

 1
23239 - HOSE
23239-11010

7KE..KM7#,8#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

7KE..KM7#,8#

 1
Linked diagrams
7751
