KM70-TRQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

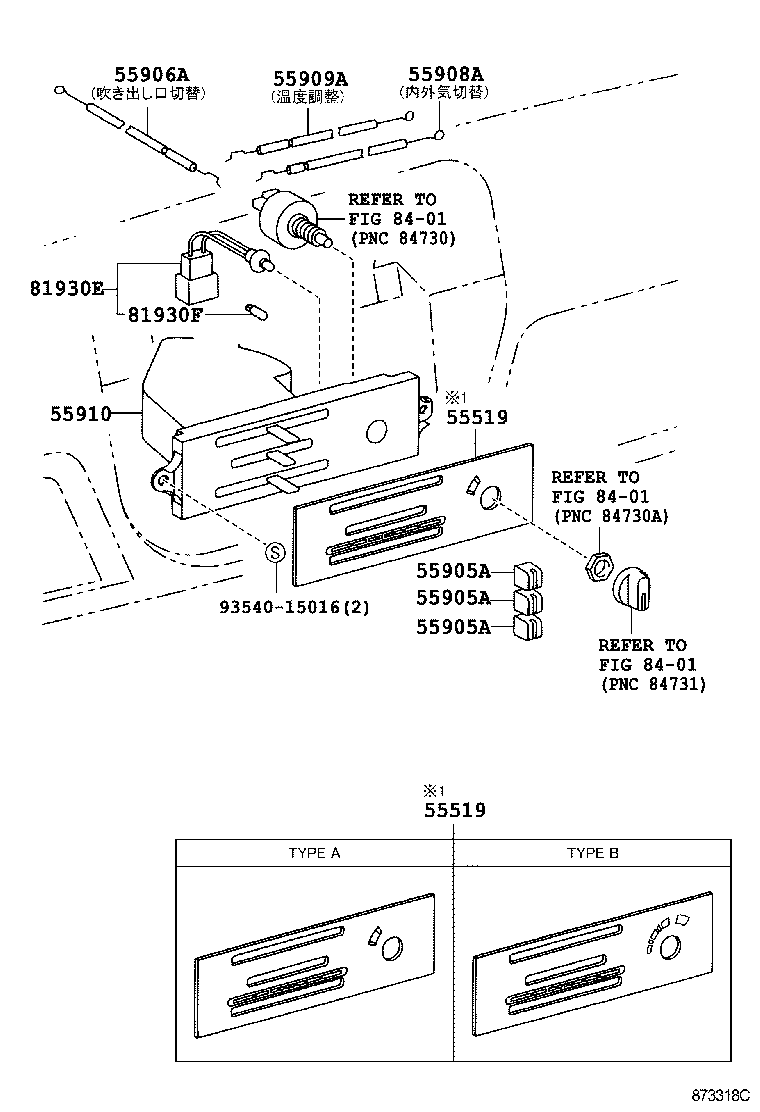

ILLUST NO. 1 OF 2(9906- )

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙ

diagram 55519 55519 55905A 55905A 55905A 55906A 55908A 55909A 55910 81930E 81930F 8401 8401 8401 9354015016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-27010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55519-27020

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55519 - PLATE, HEATER CONTROL NAME
55519-27010

CM7#,8#,KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55519-27020

CM7#,8#,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
55905A - KNOB, HEATER CONTROL
55905-10110

CM7#,8#,KM7#,8#

 3
55905A - KNOB, HEATER CONTROL
55905-10110

CM7#,8#,KM7#,8#

 3
55905A - KNOB, HEATER CONTROL
55905-10110

CM7#,8#,KM7#,8#

 3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-27011

CM7#,8#,KM7#,8#

ﾅﾁｭﾗﾙ

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-27011

CM7#,8#,KM7#,8#

ｸﾞﾚｰ

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-27021

CM7#,8#,KM7#,8#

ﾌﾞﾙｰ

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-27010

CM7#,8#,KM7#,8#

 1
81930E - LAMP ASSY, HEATER CONTROL INDICATOR
81930-95700

CM7#,8#,KM7#,8#

 1
81930F - BULB, HEATER CONTROL INDICATOR LAMP
90981-11014

CM7#,8#,KM7#,8#

14V 1.4W

 1
Common parts
93540-15016
Linked diagrams
8401

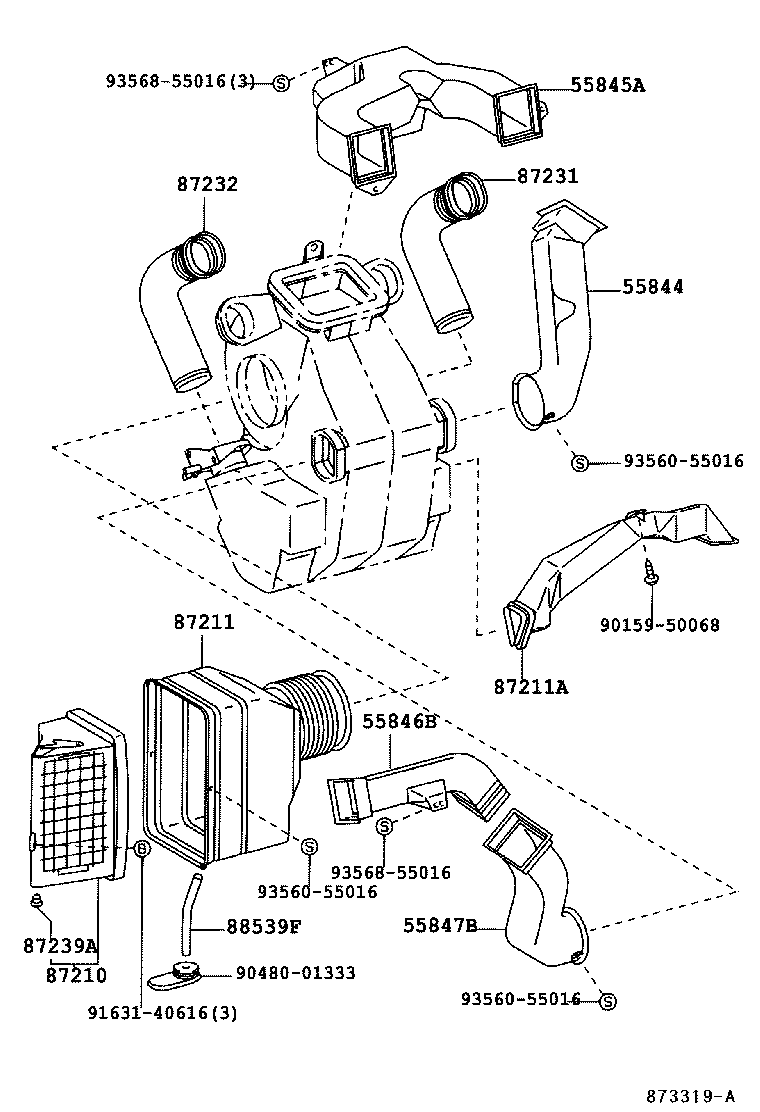

ILLUST NO. 2 OF 2(9906- )

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ

diagram 55844 55845A 55846B 55847B 87210 87211 87211A 87231 87232 87239A 88539F 9015950068 9048001333 9163140616 9356055016 9356055016 9356055016 9356855016 9356855016
Part # Description Qty Price
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-27020

CM7#,8#,KM7#,8#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-27020

CM7#,8#,KM7#,8#

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-27020

CM7#,8#,KM7#,8#

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-27020

CM7#,8#,KM7#,8#

 1
87210 - DAMPER ASSY, AIR
87210-27011

CM7#,8#,KM7#,8#

 1
87211 - DUCT, AIR, NO.1
87211-95715

CM7#,8#,KM7#,8#

 1
87211A - DUCT, AIR, NO.2
87211-27010

CM7#,8#,KM7#,8#

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95702

CM7#,8#,KM7#,8#

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95702

CM7#,8#,KM7#,8#

 1
87239A - COVER, HEATER INLET HOLE
87239-95700

CM7#,8#,KM7#,8#

 1
88539F - HOSE, DRAIN
88539-95711

CM7#,8#,KM7#,8#

 1
Common parts
90159-50068
90480-01333
91631-40616
93560-55016
93568-55016
