KM70-TRQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )KM7#,8#

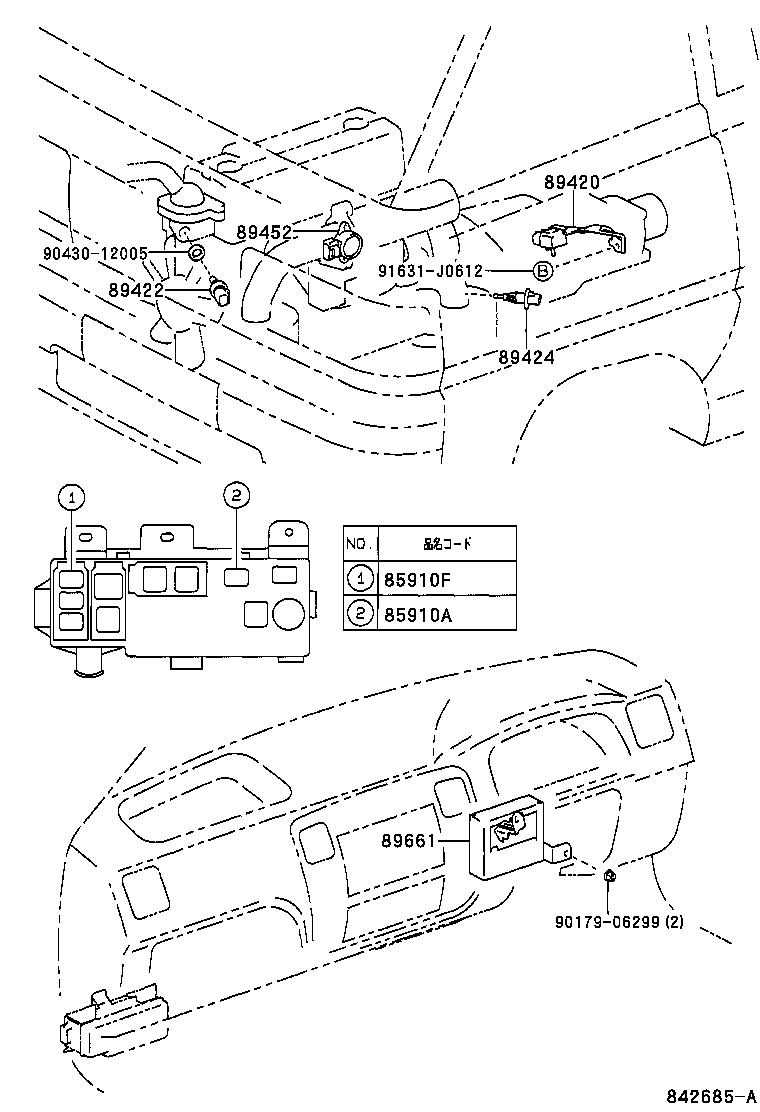

Click highlighted areas on diagram

diagram 85910A 85910F 89420 89422 89424 89452 89661 9017906299 9043012005 91631J0612
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

KM7#,8#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

KM7#,8#

 1
89420 - SENSOR ASSY, VACUUM
89420-27020

KM7#,8#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

KM7#,8#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

KM7#,8#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-0A010

KM7#,8#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89452-0A010

 1
89452-33030

KM7#,8#

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89452-33030

 1
89661 - COMPUTER, ENGINE CONTROL
89660-27030

KM7#,8#

FUJITSU TEN

 1
Common parts
90179-06299
90430-12005
91631-J0612
