KM70-TRQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)

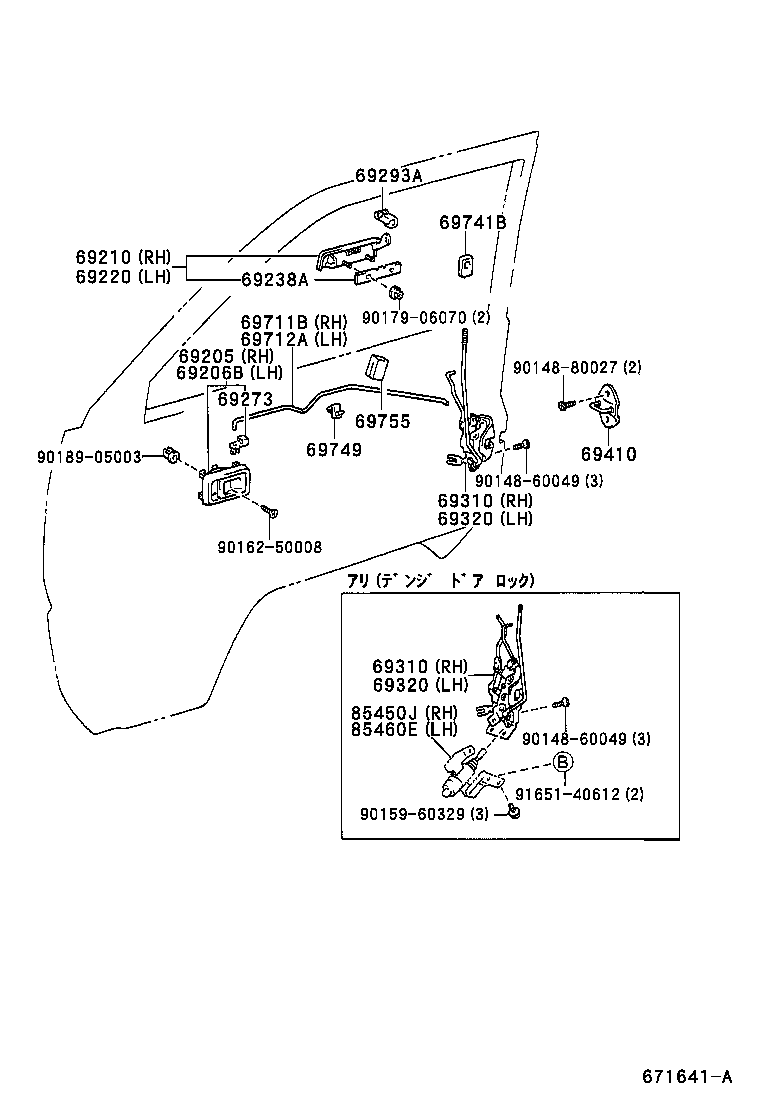

Click highlighted areas on diagram

diagram 69205 69206B 69210 69220 69238A 69273 69293A 69310 69310 69320 69320 69410 69711B 69712A 69741B 69749 69755 85450J 85460E 9014860049 9014860049 9014880027 9015960329 9016250008 9017906070 9018905003 9165140612
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-95703B3

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-95703B3

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95702

CM7#,8#,KM7#,8#

塗装不要

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95702

CM7#,8#,KM7#,8#

ﾌﾞﾗｯｸ

 1
69238A - PAD, DOOR OUTSIDE HANDLE
69238-95J00

CM7#,8#,KM7#,8#

 2
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-14050

CM7#,8#,KM7#,8#

右側

 1
69759-24070

CM7#,8#,KM7#,8#

左側

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

CM7#,8#,KM7#,8#

右側

 1
69293-12040

CM7#,8#,KM7#,8#

左側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-27020

CM7#,8#,KM7#,8#..DX

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-27020

CM7#,8#,KM7#,8#..DX

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-27010

CM7#,8#,KM7#,8#..DX

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-27010

CM7#,8#,KM7#,8#..DX

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-27010

CM7#,8#,KM7#,8#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-95700

CM7#,8#,KM7#,8#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-95700

CM7#,8#,KM7#,8#

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-90K00B7

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30020

CM7#,8#,KM7#,8#

 4
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

CM7#,8#,KM7#,8#

 2
Common parts
90148-60049
90148-80027
90159-60329
90162-50008
90179-06070
90189-05003
91651-40612
