KM70-TRQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)7KE

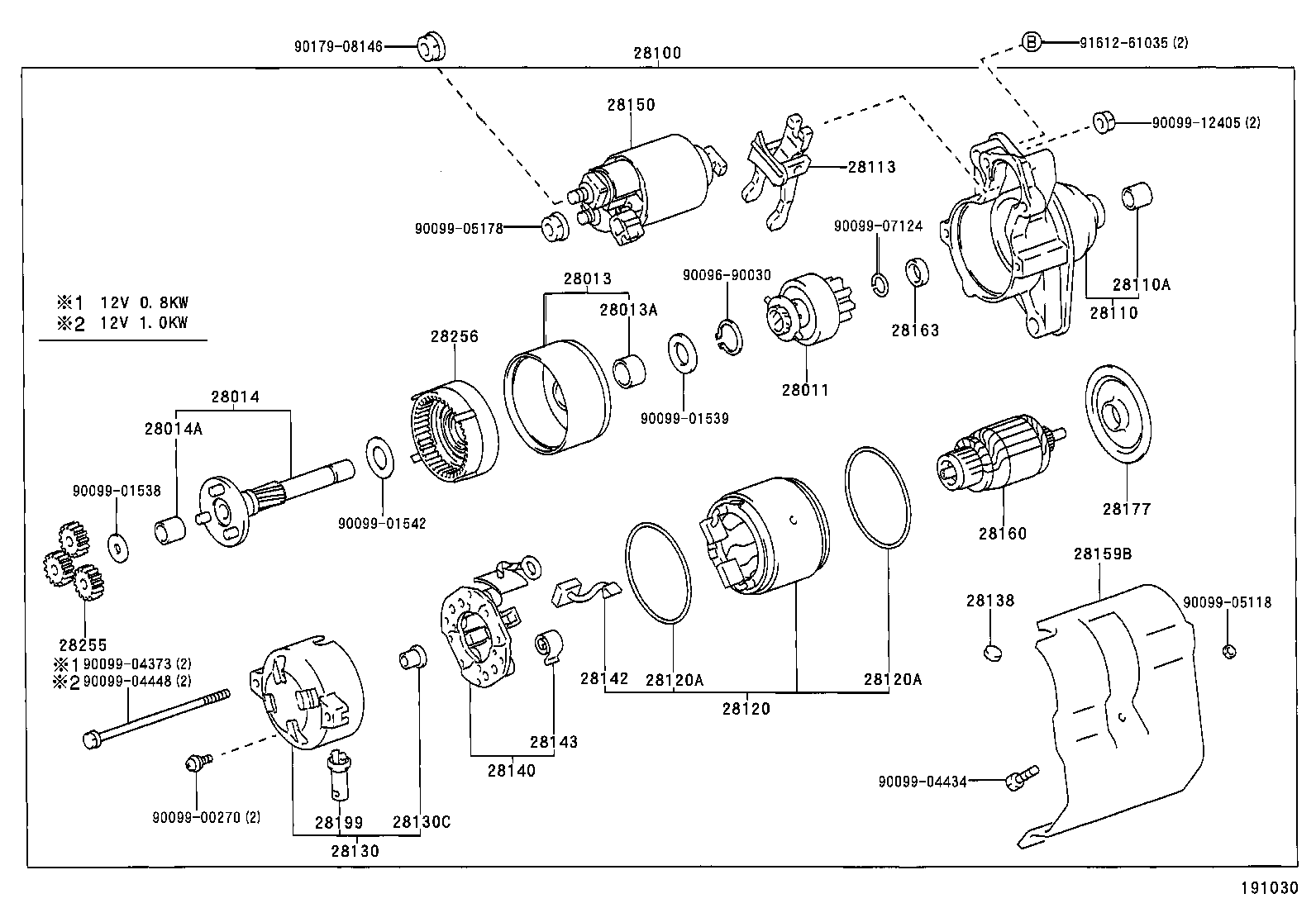

Click highlighted areas on diagram

12V 0.8KW,1.0KW

diagram 28011 28013 28013A 28014 28014A 28100 28110 28110A 28113 28120 28120A 28120A 28130 28130C 28138 28140 28142 28143 28150 28159B 28160 28163 28177 28199 28255 28256 9009690030 9009900270 9009901538 9009901539 9009901542 9009904373 9009904434 9009904448 9009905118 9009905178 9009907124 9009912405 9017908146 9161261035
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

7KE..KM7#,8#

12V 0.8KW,1.0KW

 1
28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013-70020

7KE..KM7#,8#

 1
28013-70030

7KE..KM7#,8#

 1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181

7KE..KM7#,8#

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-70020

7KE..KM7#,8#

 1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180

7KE..KM7#,8#

 1
28100 - STARTER ASSY
28100-13130

7KE..KM7#,8#

12V 1.0KW

 1
28100-13080

7KE..KM7#,8#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-13080

7KE..KM7#,8#

12V 0.8KW,1.0KW

 1
28110A - BEARING(FOR STARTER HOUSING)
90099-10171

7KE..KM7#,8#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-70020

7KE..KM7#,8#

 1
28120 - YOKE ASSY, STARTER
28120-13081

7KE..KM7#,8#

12V 0.8KW

 1
28120-13130

7KE..KM7#,8#

12V 1.0KW

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14092

7KE..KM7#,8#

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14092

7KE..KM7#,8#

 2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-13080

7KE..KM7#,8#

 1
28130C - BEARING, STARTER FLANGE
90099-10183

7KE..KM7#,8#

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-13080

7KE..KM7#,8#

 3
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

7KE..KM7#,8#

12V 0.8KW,1.0KW

 1
28142 - BRUSH, STARTER
28142-70020

7KE..KM7#,8#

 2
28143 - SPRING, STARTER BRUSH
28143-70020

7KE..KM7#,8#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-10021

7KE..KM7#,8#

12V 0.8KW,1.0KW

 1
28159B - COVER, MAGNET SWITCH
28159-13080

7KE..KM7#,8#

12V 0.8KW,1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-70050

7KE..KM7#,8#

12V 1.0KW

 1
28160-70021

7KE..KM7#,8#

12V 0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-70020

7KE..KM7#,8#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-70020

7KE..KM7#,8#

 1
28199 - COVER, STARTER
28199-46080

7KE..KM7#,8#

 1
28255 - GEAR, PLANET
28255-70020

7KE..KM7#,8#

 3
28256 - GEAR, STARTER INTERNAL
28256-70020

7KE..KM7#,8#

 1
Common parts
90096-90030
90099-00270
90099-01538
90099-01539
90099-01542
90099-04373
90099-04434
90099-04448
90099-05118
90099-05178
90099-07124
90099-12405
90179-08146
91612-61035
