KM70-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

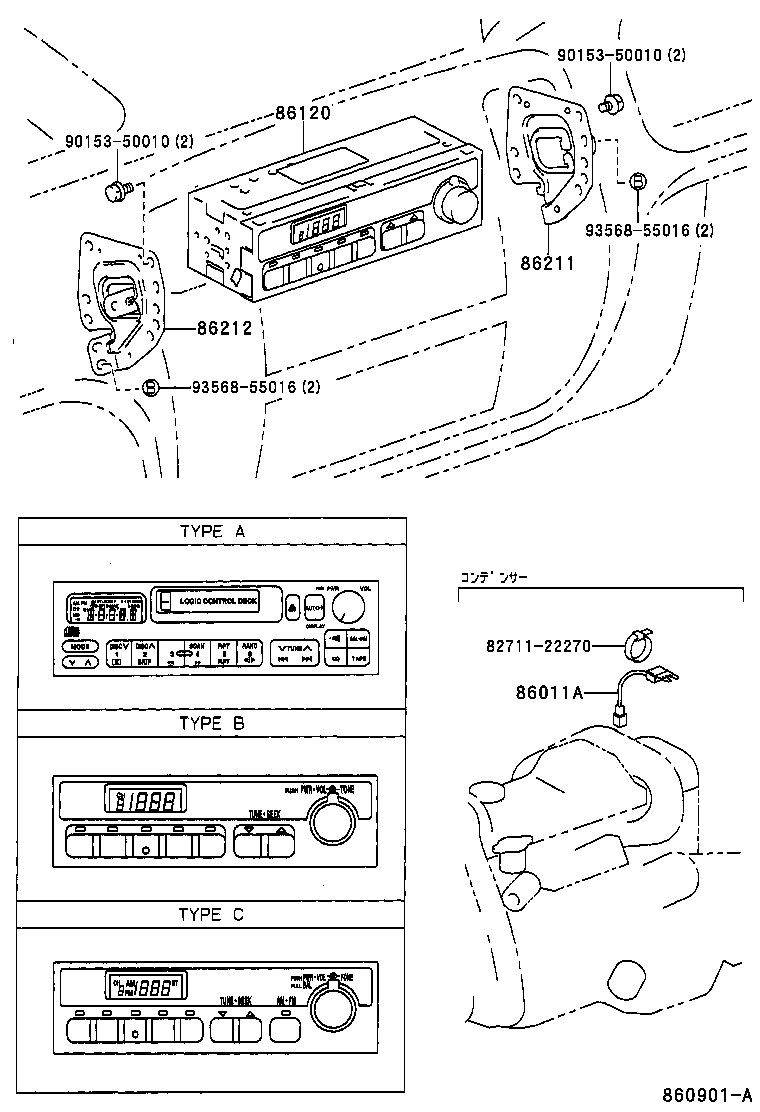

Click highlighted areas on diagram

diagram 8271122270 86011A 86120 86211 86212 9015350010 9015350010 9356855016 9356855016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04040

KM7#,8#

 1
90980-04040

KM7#,8#

 1
86120 - RECEIVER ASSY, RADIO
86120-27010

CM7#,8#,KM7#,8#..DX

FUJITSU TEN,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-32480

KM7#,8#..CBU,IV3

FUJITSU TEN,ID=10210,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-32480

CM7#,8#,KM7#,8#

FUJITSU TEN,ID=10210,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-27030

KM7#,8#

 1
86211-27030

CM7#,8#,KM7#,8#

 1
86212 - BRACKET, RADIO, NO.2
86212-27030

KM7#,8#

 1
86212-27030

CM7#,8#,KM7#,8#

 1
Common parts
82711-22270
90153-50010
93568-55016
