KM70-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

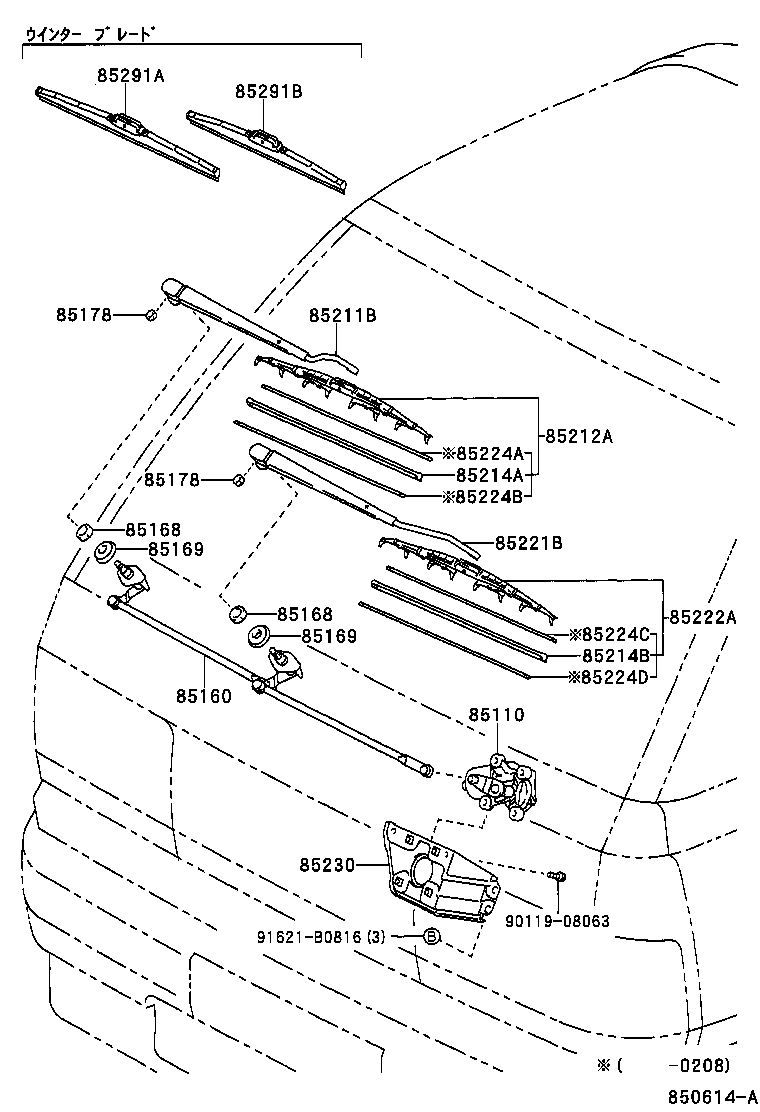

Click highlighted areas on diagram

diagram 85110 85160 85168 85168 85169 85169 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 85230 85291A 85291B 9011908063 91621B0816
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-27010

CM7#,8#,KM7#,8#

 1
85110-27020

CM7#,8#,KM7#,8#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-27020

KM7#,8#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85110-27010

KM7#,8#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95707

KM7#,8#

 1
85160-95707

CM7#,8#,KM7#,8#

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

CM7#,8#,KM7#,8#

 2
85168-95700

KM7#,8#

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

CM7#,8#,KM7#,8#

 2
85168-95700

KM7#,8#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-95701

CM7#,8#,KM7#,8#

 2
85179-95701

KM7#,8#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-95701

CM7#,8#,KM7#,8#

 2
85179-95701

KM7#,8#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08209

CM7#,8#,KM7#,8#

 2
90179-08209

KM7#,8#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08209

CM7#,8#,KM7#,8#

 2
90179-08209

KM7#,8#

 2
85211B - ARM, FRONT WIPER, RH
85211-27010

CM7#,8#,KM7#,8#

 1
85211-27010

KM7#,8#

 1
85212A - BLADE, FR WIPER, RH
85212-27010

KM7#,8#

 1
85212-27010

CM7#,8#,KM7#,8#

 1
85214A - RUBBER, WIPER, RH
85214-33110

CM7#,8#,KM7#,8#

 1
85214-48010

KM7#,8#

 1
85214-48010

KM7#,80;KM85..5H

 1
85214B - RUBBER, WIPER, LH
85214-44080

CM7#,8#,KM7#,8#

 1
85214-68010

KM7#,8#

 1
85214-68011

KM7#,8#

 1
85214-44080

CM7#,8#,KM7#,8#

 1
85221B - ARM, FRONT WIPER, LH
85221-27010

KM7#,8#

 1
85221-27010

CM7#,8#,KM7#,8#

 1
85222A - BLADE, FR WIPER, LH
85222-27010

CM7#,8#,KM7#,8#

 1
85222-27011

KM7#,8#

 1
85222-52020

CM7#,8#,KM7#,8#

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-33040

CM7#,8#,KM7#,8#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-33040

CM7#,8#,KM7#,8#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-44031

CM7#,8#,KM7#,8#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-44031

CM7#,8#,KM7#,8#

 1
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-27010

KM7#,8#

 1
85230-27010

CM7#,8#,KM7#,8#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22090

KM7#,8#

 1
85291-50030

CM7#,8#,KM7#,8#

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-28120

KM7#,8#

 1
85291-60030

CM7#,8#,KM7#,8#

 1
Common parts
90119-08063
91621-B0816
