KM70-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

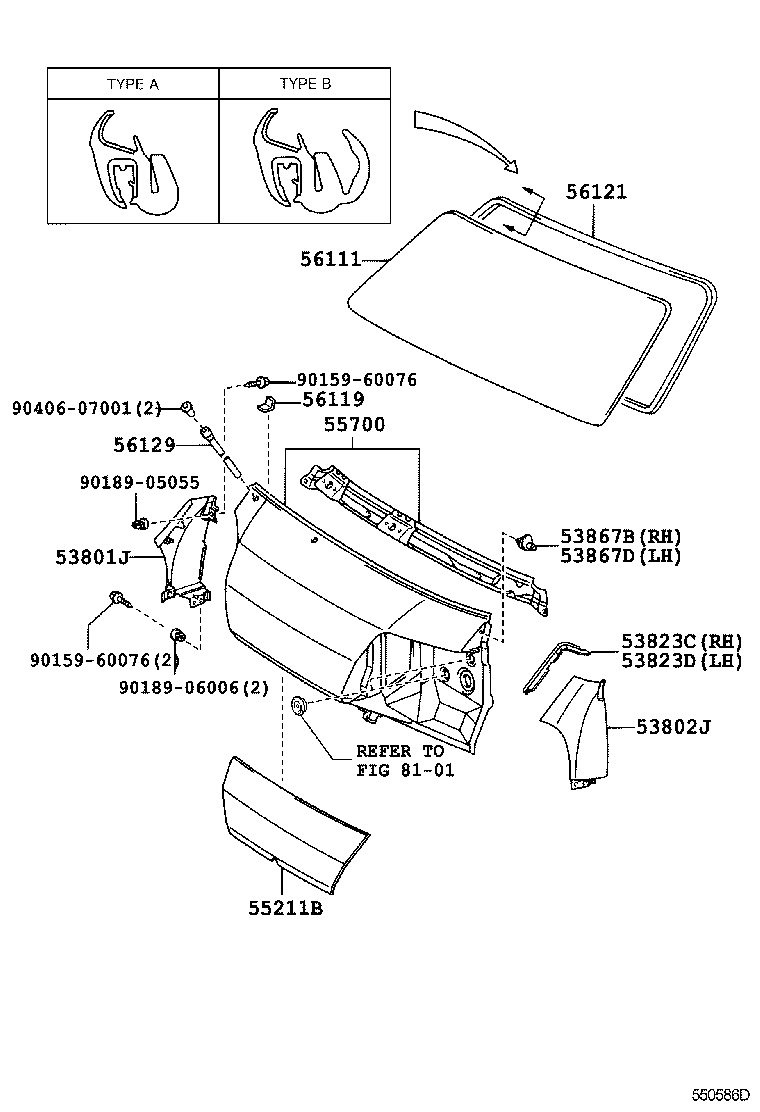

Click highlighted areas on diagram

diagram 53801J 53802J 53823C 53823D 53867B 53867D 55211B 55700 56111 56119 56121 56129 8101 9015960076 9015960076 9018905055 9018906006 9040607001
Part # Description Qty Price
53801J - PANEL SUB-ASSY, FRONT SIDE, RH
53813-27010

CM7#,8#,KM7#,8#

 1
53813-27010

KM7#,8#

 1
53802J - PANEL SUB-ASSY, FRONT SIDE, LH
53814-27010

CM7#,8#,KM7#,8#

 1
53814-27020

KM7#,8#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53814-27020

CM7#,8#,KM7#,8#..DX

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53814-27010

CM7#,8#,KM7#,8#..CBU,IV3

 1
53814-27020

KM7#,8#

 1
53823C - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-27010

CM7#,8#,KM7#,8#

 1
53823-27010

KM7#,8#

 1
53823D - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-27010

CM7#,8#,KM7#,8#

 1
53824-27010

KM7#,8#

 1
53867B - RETAINER, FRONT SIDE PANEL
53867-28020

CM7#,8#,KM7#,8#

 1
53867-28020

CM7#,8#,KM7#,8#

 1
53867D - RETAINER, FRONT SIDE PANEL, LH
53867-28020

CM7#,8#,KM7#,8#

 1
53867-28020

CM7#,8#,KM7#,8#

 1
55211B - SILENCER, FRONT PANEL
55211-27010

CM7#,8#,KM7#,8#

 1
55211-27010

KM7#,8#

 1
55700 - PANEL ASSY, FRONT
55700-27040

CM7#,8#,KM7#,8#

 1
55700-27050

KM7#,8#

 1
55700-27080

KM7#,8#

 1
56111 - GLASS, WINDSHIELD
56111-27010

KM7#,8#

*TL,T=3.5,ｸﾞﾘｰﾝ

 1
56111-27010

CM7#,8#,KM7#,8#..DX

*TL,T=3.5,ｸﾞﾘｰﾝ

 1
56119 - SEAL, WINDSHIELD GLASS
56119-95700

CM7#,8#,KM7#,8#

 2
56119-95700

KM7#,8#

 2
56121 - WEATHERSTRIP, WINDSHIELD
56121-27020

CM85..TS;CM7#,80,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
56121-27010

CM7#,8#,KM7#,8#..DX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
56121-27030

CM7#,8#,KM7#,8#..DX

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
56121-27040

CM85..TS;CM7#,80,KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
56121-27050

CM7#,8#,KM7#,8#

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95700

KM7#,8#

 2
56129-95700

CM7#,8#,KM7#,8#

 2
Common parts
90159-60076
90189-05055
90189-06006
90406-07001
Linked diagrams
8101
