KM70-TLSDE3 (1999)
Toyota Lite/Townace

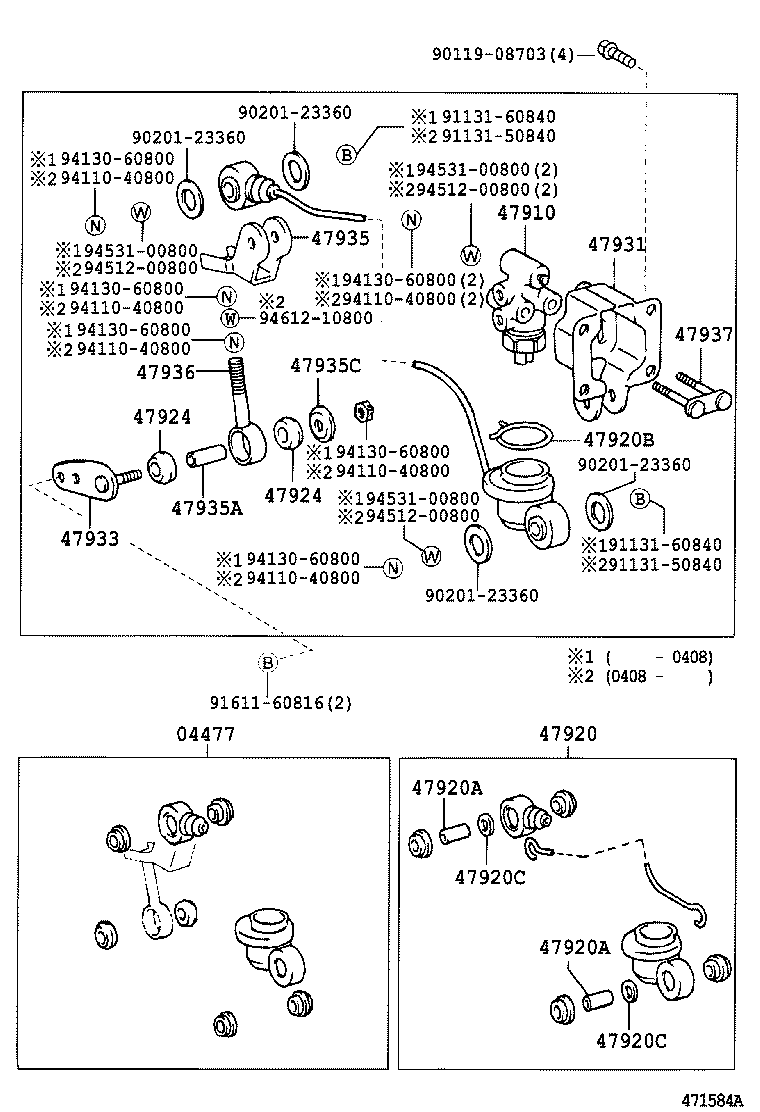

ILLUST NO. 3 OF 3(9906- )CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-27010 |
KM7#,8#..CBU,IV3 |
1 | ||
| 04477-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-27161 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47910-27161 |
CM7#,8#,KM7#,8# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-27070 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47920-27070 |
CM7#,8#,KM7#,8# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KM7#,8#..CBU,IV3 |
2 | ||
| 90387-08099 |
CM7#,8#,KM7#,8# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KM7#,8#..CBU,IV3 |
2 | ||
| 90387-08099 |
CM7#,8#,KM7#,8# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
KM7#,8#..CBU,IV3 |
1 | ||
| 90467-31110 |
CM7#,8#,KM7#,8# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KM7#,8#..CBU,IV3 |
2 | ||
| 90202-10103 |
CM7#,8#,KM7#,8# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KM7#,8#..CBU,IV3 |
2 | ||
| 90202-10103 |
CM7#,8#,KM7#,8# |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47924-35010 |
KM7#,8#..CBU,IV3 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47924-35010 |
KM7#,8#..CBU,IV3 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-27090 |
CM7#,8#,KM7#,8# |
1 | ||
| 47931-27090 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-27061 |
CM7#,8#,KM7#,8# |
1 | ||
| 47933-27061 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
CM7#,8#,KM7#,8# |
1 | ||
| 47935-35030 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
CM7#,8#,KM7#,8# |
1 | ||
| 90387-08099 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
CM7#,8#,KM7#,8# |
1 | ||
| 90201-08062 |
KM7#,8#..CBU,IV3 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 47936-35050 |
CM70,KM70..JL |
1 | ||
| 47936-26020 |
CM7#,KM7#..SJL;CM8#,KM8#..CBU,IV3 |
1 | ||
| 47936-35050 |
KM7#..SJL;KM8#..5H..(CBU,IV3) |
1 | ||
| 47936-26020 |
KM70..JL |
1 | ||
| 47936-35050 |
CM70,KM70..JL,T1 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
CM7#,8#,KM7#,8# |
1 | ||
| 47937-60010 |
KM7#,8#..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91131-60840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94612-10800 | ||||

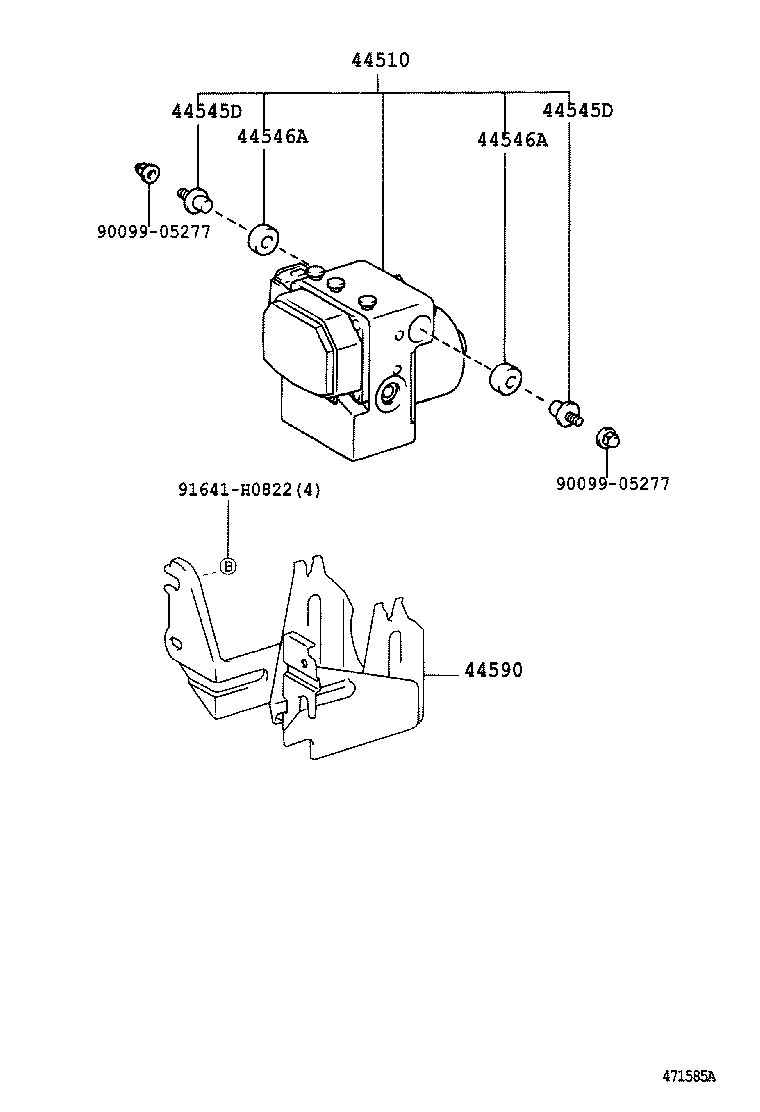

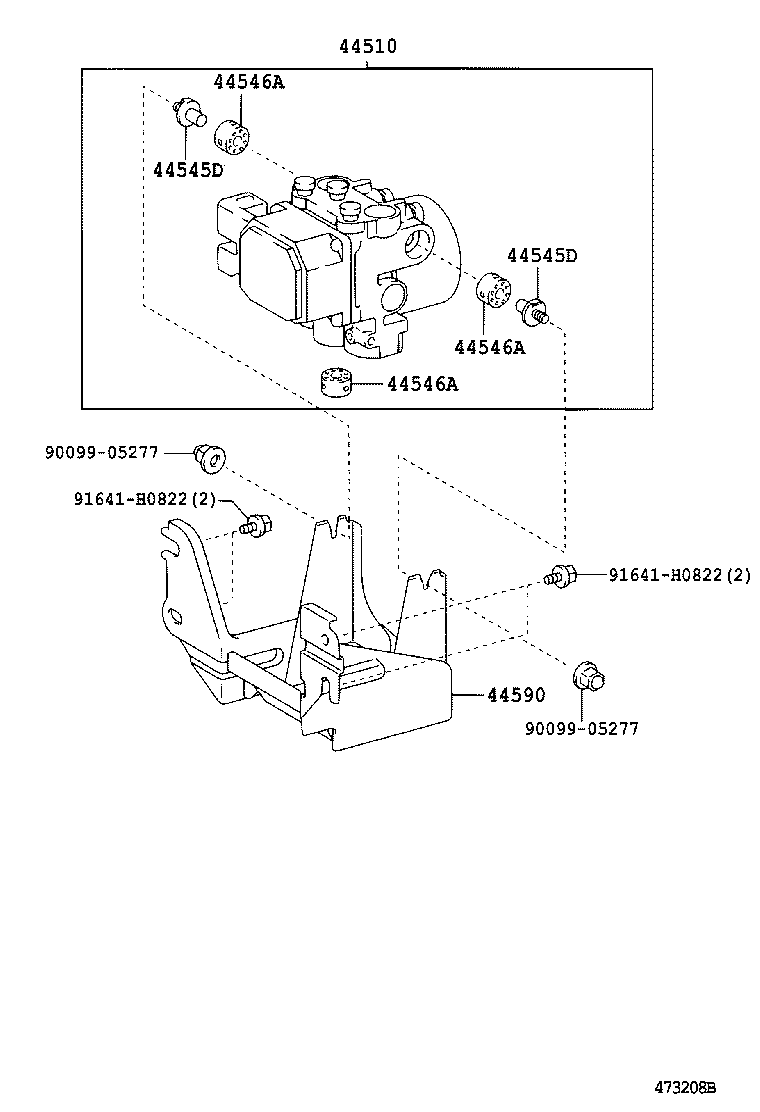

ILLUST NO. 2 OF 3(9906-0208)
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-27030 |
KM7#,8# |
1 | ||
| 44050-27020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
KM7#,8# |
2 | ||
| 44545-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
KM7#,8# |
2 | ||
| 44545-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546-42090 |
KM7#,8# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546-42090 |
KM7#,8# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-27020 |
KM7#,8# |
1 | ||
| 44590-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91641-H0822 | ||||

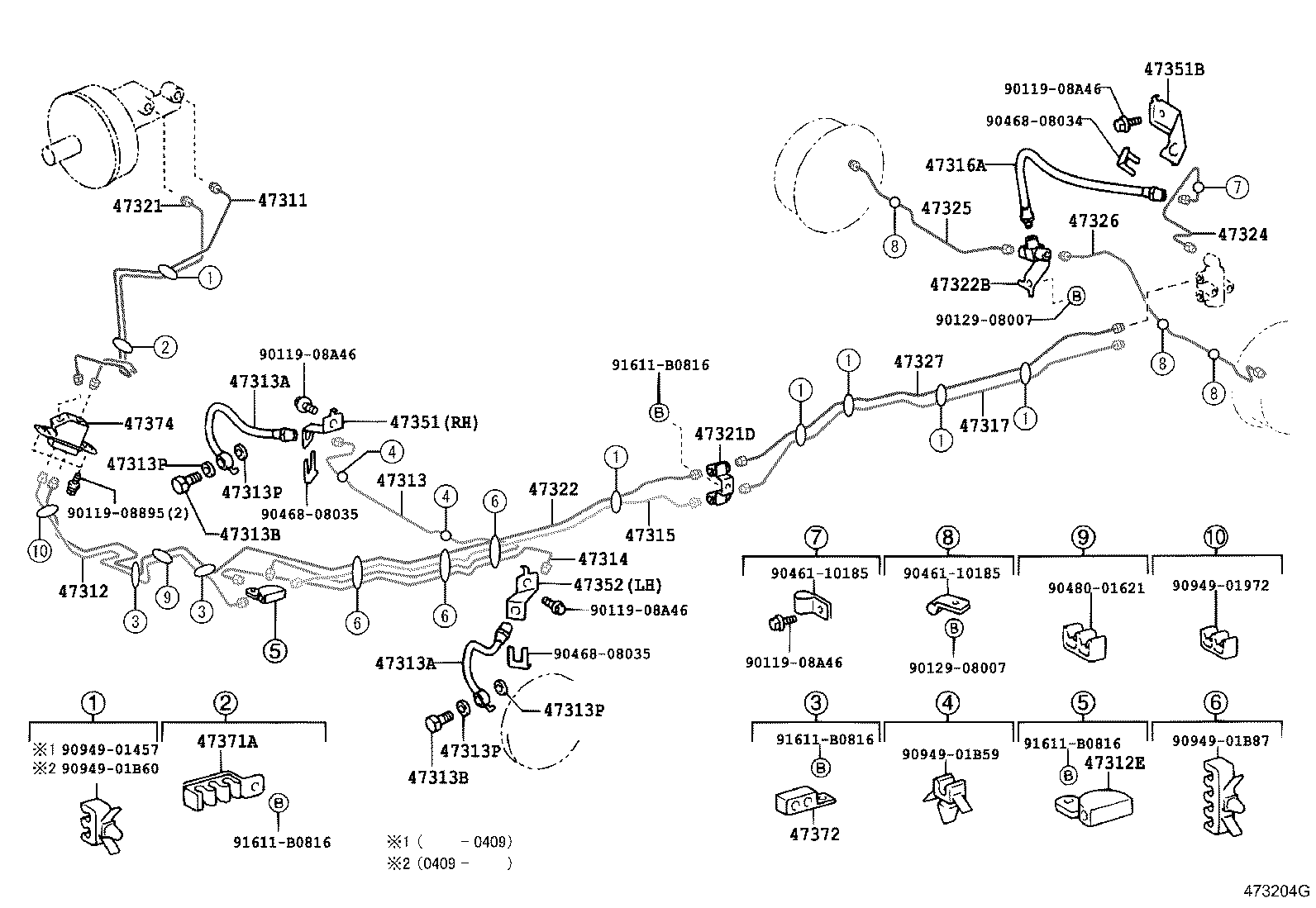

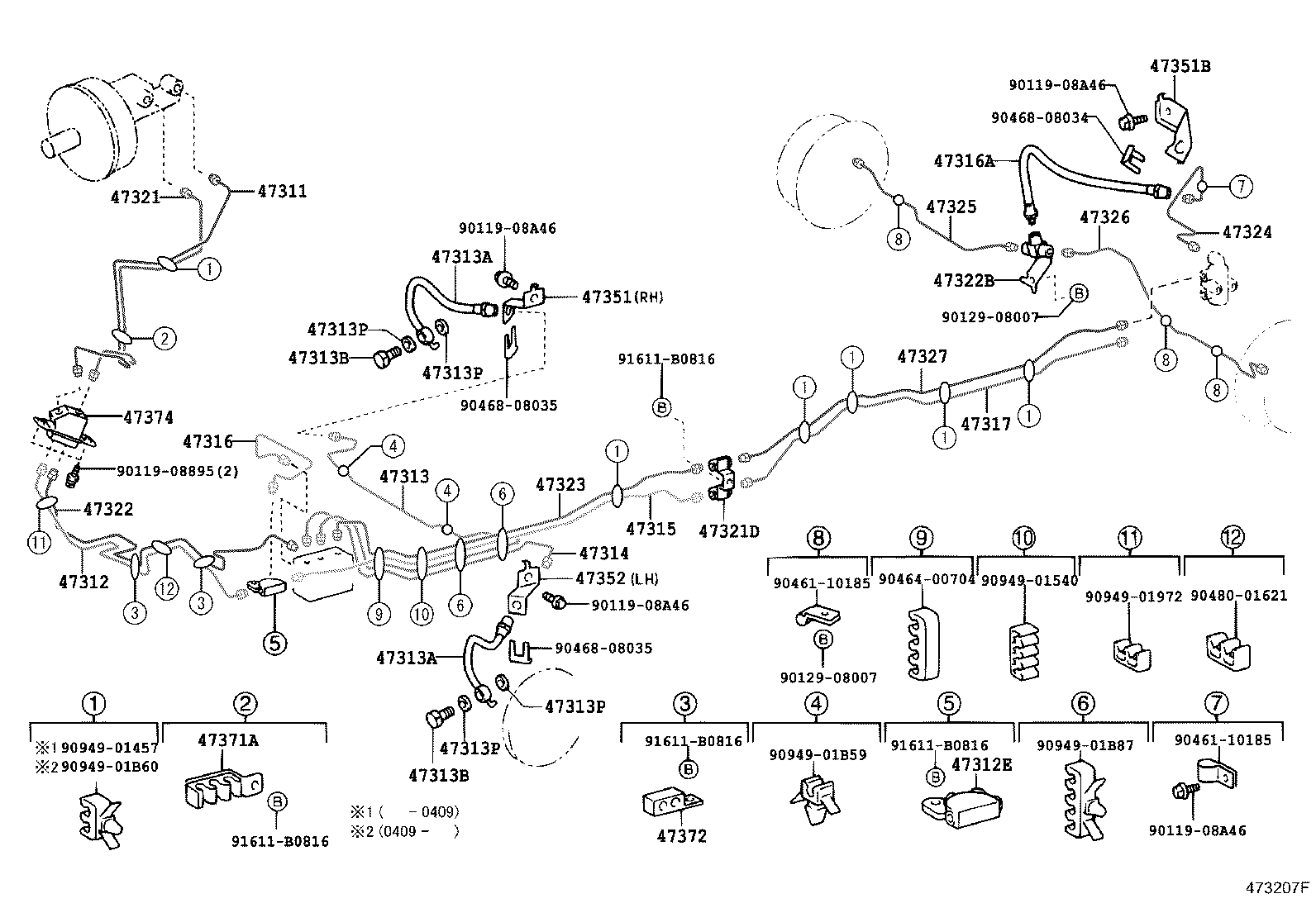

ILLUST NO. 1 OF 3(9906-0208)CM7#,KM7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27280 |
KM7#,8# |
1 | ||
| 47311-27270 |
CM7#,8#,KM7#,8# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10100 |
CM7#,85,KM7#..4HC |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10100 |
CM7#,85,KM7#..4HC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-27210 |
KM7#,8# |
1 | ||
| 47312-27200 |
CM7#,8#,KM7#,8# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10183 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 90413-10183 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 90414-10014 |
CM7#,8#,KM7#,8# |
1 | ||
| 90414-10014 |
KM7#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-27150 |
CM7#,KM7# |
1 | ||
| 47313-27151 |
KM7#..CBU,IV3 |
1 | ||
| 47313-27160 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47313-27190 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47314-27110 |
CM7#,KM7# |
1 | ||
| 47314-27150 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-27120 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-27050 |
CM7#,KM7# |
1 | ||
| 47315-27060 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315-27050 |
KM7#..CBU,IV3 |
1 | ||
| 47315-27090 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B22 |
CM70,KM70..SJL;CM75,8#,KM75,8# |
1 | ||
| 90947-02B22 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 90947-02A91 |
CM70,KM70..JL,T1 |
1 | ||
| 90947-02B25 |
CM70,KM70..JL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-27040 |
CM70,80,KM70,80 |
1 | ||
| 47317-27040 |
KM70,80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27260 |
KM7#,8# |
1 | ||
| 47321-27250 |
CM7#,8#,KM7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KM7#,8# |
1 | ||
| 90412-10166 |
CM7#,8#,KM7#,8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-27260 |
CM7#,KM7# |
1 | ||
| 47322-27270 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 47322-27300 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 47322-27290 |
KM7#..CBU,IV3 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10206 |
KM7#,8# |
1 | ||
| 90413-10206 |
CM7#,8#,KM7#,8# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-27240 |
CM7#,KM7# |
1 | ||
| 47324-27240 |
KM7#..CBU,IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-27200 |
CM7#,KM7# |
1 | ||
| 47325-27200 |
KM7#..CBU,IV3 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-27190 |
KM7#..CBU,IV3 |
1 | ||
| 47326-27190 |
CM7#,KM7# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-27070 |
CM70,80,KM70,80 |
1 | ||
| 47327-27070 |
KM70,80 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-27080 |
KM7#..CBU,IV3 |
1 | ||
| 47351-27080 |
CM7#,KM7# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47355-27080 |
CM70,KM70..JL,T1 |
1 | ||
| 47355-27090 |
KM75,8#;KM70..SJL |
1 | ||
| 47355-27090 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 47355-27080 |
KM70..JL |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-27110 |
CM7#,KM7# |
1 | ||
| 47352-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-35040 |
CM7#,8#,KM7#,8# |
1 | ||
| 47373-35040 |
KM7#,8# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
KM7#,8# |
2 | ||
| 47372-25010 |
CM7#,8#,KM7#,8# |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-10185 | ||||
| 90468-08034 | ||||
| 90468-08044 | ||||
| 90480-01054 | ||||
| 90480-01311 | ||||
| 90949-01457 | ||||
| 90949-01B59 | ||||
| 90949-01B87 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91651-60820 | ||||

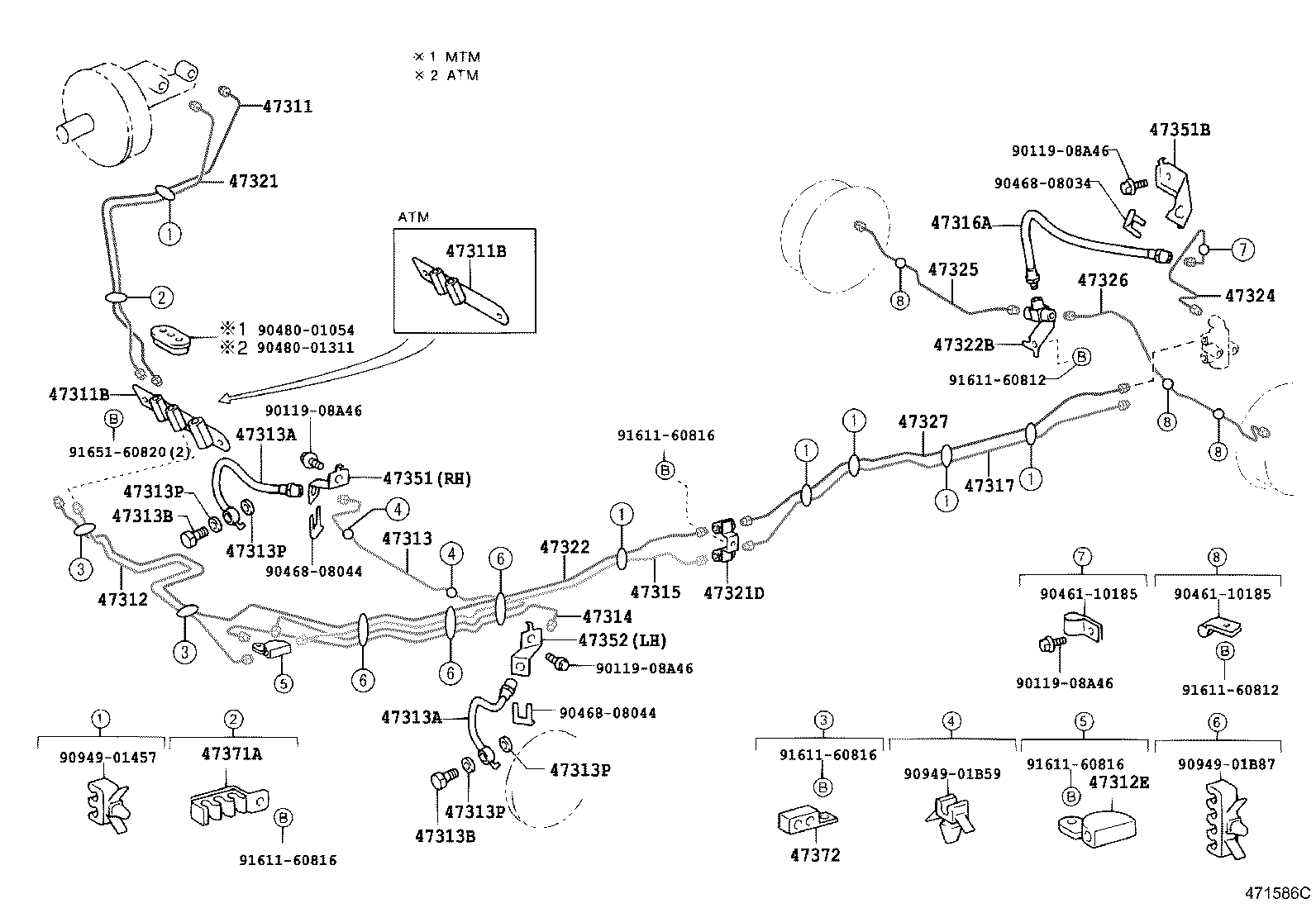

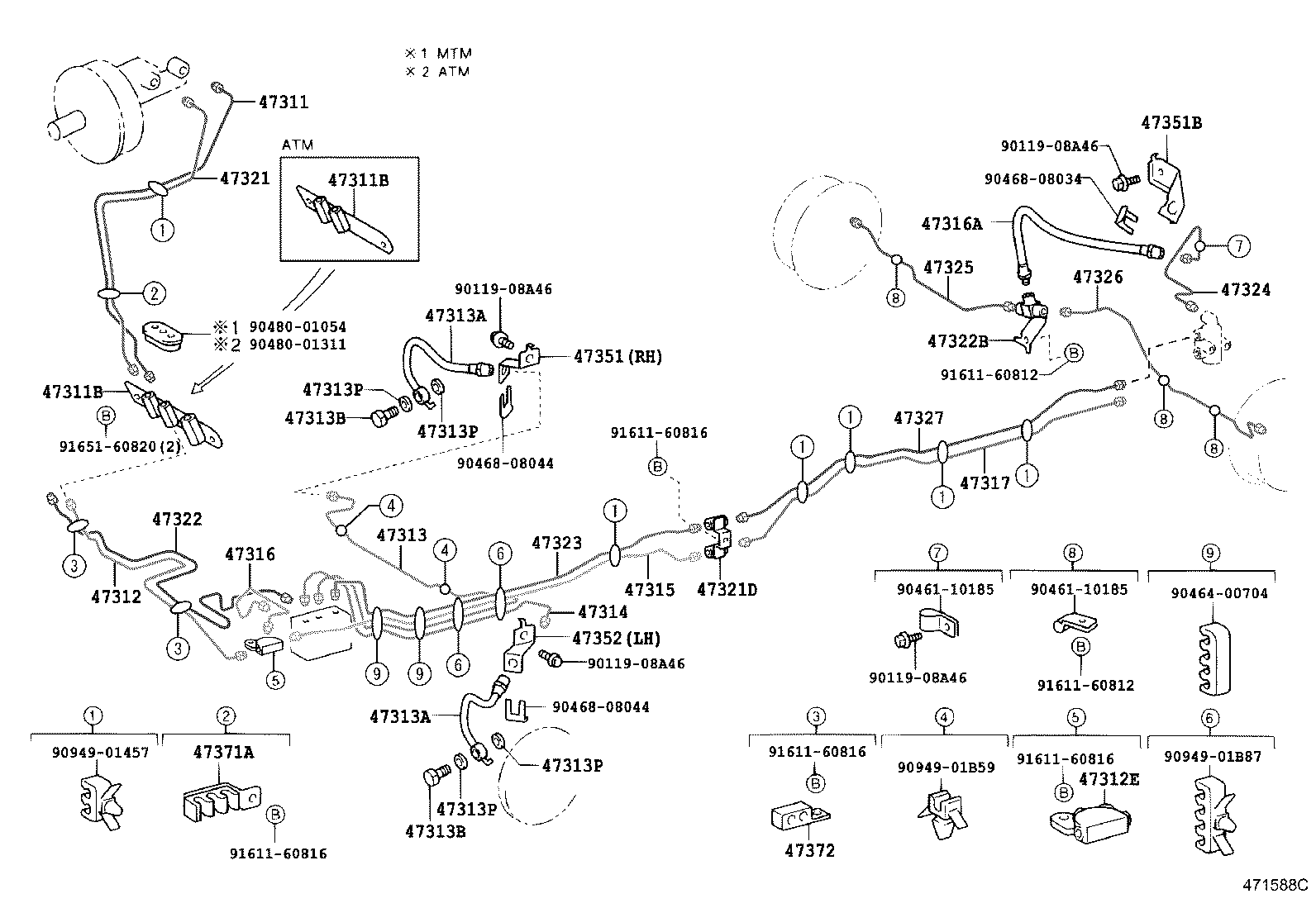

ILLUST NO. 1 OF 3(9906-0208)CM7#,KM7#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27280 |
KM7#,8# |
1 | ||
| 47311-27270 |
CM7#,8#,KM7#,8# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10100 |
CM7#,85,KM7#..4HC |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10100 |
CM7#,85,KM7#..4HC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-27210 |
KM7#,8# |
1 | ||
| 47312-27200 |
CM7#,8#,KM7#,8# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10183 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 90413-10183 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 90414-10014 |
CM7#,8#,KM7#,8# |
1 | ||
| 90414-10014 |
KM7#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-27150 |
CM7#,KM7# |
1 | ||
| 47313-27151 |
KM7#..CBU,IV3 |
1 | ||
| 47313-27160 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47313-27190 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47314-27110 |
CM7#,KM7# |
1 | ||
| 47314-27150 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-27120 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-27050 |
CM7#,KM7# |
1 | ||
| 47315-27060 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315-27050 |
KM7#..CBU,IV3 |
1 | ||
| 47315-27090 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-27170 |
CM7#,8#,KM7#,8# |
1 | ||
| 47316-27180 |
KM7#,8# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B22 |
CM70,KM70..SJL;CM75,8#,KM75,8# |
1 | ||
| 90947-02B22 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 90947-02A91 |
CM70,KM70..JL,T1 |
1 | ||
| 90947-02B25 |
CM70,KM70..JL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-27040 |
CM70,80,KM70,80 |
1 | ||
| 47317-27040 |
KM70,80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27260 |
KM7#,8# |
1 | ||
| 47321-27250 |
CM7#,8#,KM7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KM7#,8# |
1 | ||
| 90412-10166 |
CM7#,8#,KM7#,8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-27260 |
CM7#,KM7# |
1 | ||
| 47322-27270 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 47322-27300 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 47322-27290 |
KM7#..CBU,IV3 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10206 |
KM7#,8# |
1 | ||
| 90413-10206 |
CM7#,8#,KM7#,8# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-27440 |
CM7#,KM7# |
1 | ||
| 47323-27470 |
KM7#..CBU,IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-27240 |
CM7#,KM7# |
1 | ||
| 47324-27240 |
KM7#..CBU,IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-27200 |
CM7#,KM7# |
1 | ||
| 47325-27200 |
KM7#..CBU,IV3 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-27190 |
KM7#..CBU,IV3 |
1 | ||
| 47326-27190 |
CM7#,KM7# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-27070 |
CM70,80,KM70,80 |
1 | ||
| 47327-27070 |
KM70,80 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-27080 |
KM7#..CBU,IV3 |
1 | ||
| 47351-27080 |
CM7#,KM7# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47355-27080 |
CM70,KM70..JL,T1 |
1 | ||
| 47355-27090 |
KM75,8#;KM70..SJL |
1 | ||
| 47355-27090 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 47355-27080 |
KM70..JL |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-27110 |
CM7#,KM7# |
1 | ||
| 47352-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-35040 |
CM7#,8#,KM7#,8# |
1 | ||
| 47373-35040 |
KM7#,8# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
KM7#,8# |
2 | ||
| 47372-25010 |
CM7#,8#,KM7#,8# |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-10185 | ||||
| 90464-00704 | ||||
| 90468-08034 | ||||
| 90468-08044 | ||||
| 90480-01054 | ||||
| 90480-01311 | ||||
| 90949-01457 | ||||
| 90949-01B59 | ||||
| 90949-01B87 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91651-60820 | ||||
ILLUST NO. 1 OF 3(0208- )CM7#,KM7#..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27280 |
KM7#,8# |
1 | ||
| 47311-27270 |
CM7#,8#,KM7#,8# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-27210 |
KM7#,8# |
1 | ||
| 47312-27200 |
CM7#,8#,KM7#,8# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10183 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 90413-10183 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 90414-10014 |
CM7#,8#,KM7#,8# |
1 | ||
| 90414-10014 |
KM7#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-27150 |
CM7#,KM7# |
1 | ||
| 47313-27151 |
KM7#..CBU,IV3 |
1 | ||
| 47313-27160 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47313-27190 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 90430-10074 |
KM7#,8# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47314-27110 |
CM7#,KM7# |
1 | ||
| 47314-27150 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-27120 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-27050 |
CM7#,KM7# |
1 | ||
| 47315-27060 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315-27050 |
KM7#..CBU,IV3 |
1 | ||
| 47315-27090 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B22 |
CM70,KM70..SJL;CM75,8#,KM75,8# |
1 | ||
| 90947-02B22 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 90947-02A91 |
CM70,KM70..JL,T1 |
1 | ||
| 90947-02B25 |
CM70,KM70..JL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-27040 |
CM70,80,KM70,80 |
1 | ||
| 47317-27040 |
KM70,80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27260 |
KM7#,8# |
1 | ||
| 47321-27250 |
CM7#,8#,KM7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KM7#,8# |
1 | ||
| 90412-10166 |
CM7#,8#,KM7#,8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-27260 |
CM7#,KM7# |
1 | ||
| 47322-27270 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 47322-27300 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 47322-27290 |
KM7#..CBU,IV3 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10206 |
KM7#,8# |
1 | ||
| 90413-10206 |
CM7#,8#,KM7#,8# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-27240 |
CM7#,KM7# |
1 | ||
| 47324-27240 |
KM7#..CBU,IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-27200 |
CM7#,KM7# |
1 | ||
| 47325-27200 |
KM7#..CBU,IV3 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-27190 |
KM7#..CBU,IV3 |
1 | ||
| 47326-27190 |
CM7#,KM7# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-27070 |
CM70,80,KM70,80 |
1 | ||
| 47327-27070 |
KM70,80 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-27080 |
KM7#..CBU,IV3 |
1 | ||
| 47351-27080 |
CM7#,KM7# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47355-27080 |
CM70,KM70..JL,T1 |
1 | ||
| 47355-27090 |
KM75,8#;KM70..SJL |
1 | ||
| 47355-27090 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 47355-27080 |
KM70..JL |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-27110 |
CM7#,KM7# |
1 | ||
| 47352-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-35040 |
CM7#,8#,KM7#,8# |
1 | ||
| 47373-35040 |
KM7#,8# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
KM7#,8# |
2 | ||
| 47372-25010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-27020 |
KM7#,85..4HC |
1 | ||
| Common parts | ||||
| 90119-08895 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90461-10185 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90949-01457 | ||||
| 90949-01972 | ||||
| 90949-01B59 | ||||
| 90949-01B60 | ||||
| 90949-01B87 | ||||
| 91611-B0816 | ||||
ILLUST NO. 1 OF 3(0208- )CM7#,KM7#..CBU,IV3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-27280 |
KM7#,8# |
1 | ||
| 47311-27270 |
CM7#,8#,KM7#,8# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-27210 |
KM7#,8# |
1 | ||
| 47312-27200 |
CM7#,8#,KM7#,8# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10183 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 90413-10183 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 90414-10014 |
CM7#,8#,KM7#,8# |
1 | ||
| 90414-10014 |
KM7#,8# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-27150 |
CM7#,KM7# |
1 | ||
| 47313-27151 |
KM7#..CBU,IV3 |
1 | ||
| 47313-27160 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47313-27190 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A55 |
KM7#..CBU,IV3 |
2 | ||
| 90947-02A55 |
CM7#,KM7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CM7#,8#,KM7#,8# |
2 | ||
| 90401-10015 |
KM7#,8# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KM7#,8# |
4 | ||
| 90430-10074 |
CM7#,8#,KM7#,8# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47314-27110 |
CM7#,KM7# |
1 | ||
| 47314-27150 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47314-27120 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-27050 |
CM7#,KM7# |
1 | ||
| 47315-27060 |
CM7#,KM7# ｱﾘ(ABS) |
1 | ||
| 47315-27050 |
KM7#..CBU,IV3 |
1 | ||
| 47315-27090 |
KM7#..CBU,IV3 ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-27170 |
CM7#,8#,KM7#,8# |
1 | ||
| 47316-27180 |
KM7#,8# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B22 |
CM70,KM70..SJL;CM75,8#,KM75,8# |
1 | ||
| 90947-02B22 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 90947-02A91 |
CM70,KM70..JL,T1 |
1 | ||
| 90947-02B25 |
CM70,KM70..JL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-27040 |
CM70,80,KM70,80 |
1 | ||
| 47317-27040 |
KM70,80 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-27260 |
KM7#,8# |
1 | ||
| 47321-27250 |
CM7#,8#,KM7#,8# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KM7#,8# |
1 | ||
| 90412-10166 |
CM7#,8#,KM7#,8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-27260 |
CM7#,KM7# |
1 | ||
| 47322-27270 |
CM7#,8#,KM7#,8# ｱﾘ(ABS) |
1 | ||
| 47322-27300 |
KM7#,80;KM85..5H ｱﾘ(ABS) |
1 | ||
| 47322-27290 |
KM7#..CBU,IV3 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10206 |
KM7#,8# |
1 | ||
| 90413-10206 |
CM7#,8#,KM7#,8# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-27440 |
CM7#,KM7# |
1 | ||
| 47323-27470 |
KM7#..CBU,IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-27240 |
CM7#,KM7# |
1 | ||
| 47324-27240 |
KM7#..CBU,IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-27200 |
CM7#,KM7# |
1 | ||
| 47325-27200 |
KM7#..CBU,IV3 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-27190 |
KM7#..CBU,IV3 |
1 | ||
| 47326-27190 |
CM7#,KM7# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-27070 |
CM70,80,KM70,80 |
1 | ||
| 47327-27070 |
KM70,80 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-27080 |
KM7#..CBU,IV3 |
1 | ||
| 47351-27080 |
CM7#,KM7# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47355-27080 |
CM70,KM70..JL,T1 |
1 | ||
| 47355-27090 |
KM75,8#;KM70..SJL |
1 | ||
| 47355-27090 |
CM8#,KM8#;CM7#,KM7#..SJL,SJLC |
1 | ||
| 47355-27080 |
KM70..JL |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-27110 |
CM7#,KM7# |
1 | ||
| 47352-27110 |
KM7#..CBU,IV3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-35040 |
CM7#,8#,KM7#,8# |
1 | ||
| 47373-35040 |
KM7#,8# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
KM7#,8# |
2 | ||
| 47372-25010 |
CM7#,8#,KM7#,8# |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-27020 |
KM7#,85..4HC |
1 | ||
| Common parts | ||||
| 90119-08895 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90461-10185 | ||||
| 90464-00704 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90949-01457 | ||||
| 90949-01540 | ||||
| 90949-01972 | ||||
| 90949-01B59 | ||||
| 90949-01B60 | ||||
| 90949-01B87 | ||||
| 91611-B0816 | ||||
ILLUST NO. 2 OF 3(0208- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-27030 |
KM7#,8# |
1 | ||
| 44050-27020 |
CM7#,8#,KM7#,8# |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
KM7#,8# |
2 | ||
| 44545-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
KM7#,8# |
2 | ||
| 44545-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546-42090 |
KM7#,8# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546-42090 |
KM7#,8# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
CM7#,8#,KM7#,8# |
2 | ||
| 44546-42090 |
KM7#,8# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-27020 |
KM7#,8# |
1 | ||
| 44590-27010 |
CM7#,8#,KM7#,8# |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91641-H0822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
