KM70-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9906- )KM7#,85..4HC

Click highlighted areas on diagram

A42D,A44DF

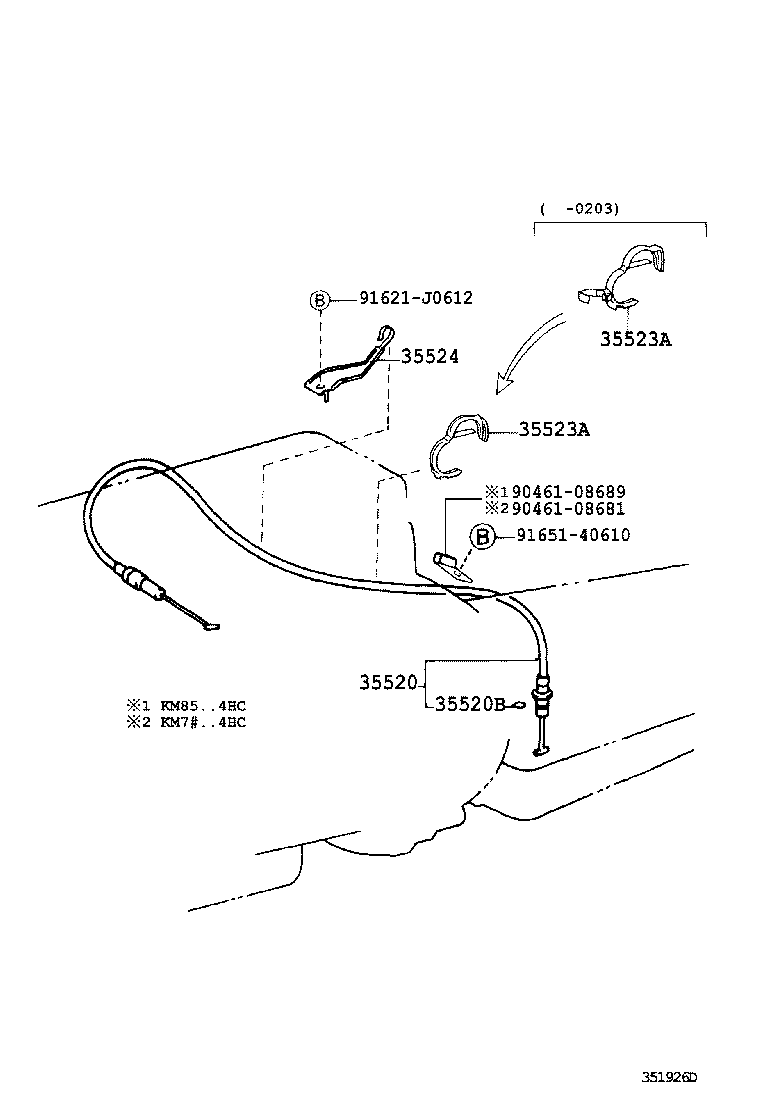

diagram 35520 35520B 35523A 35523A 35524 9046108681 9046108689 91621J0612 9165140610
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-27030

KM7#..4HC

 1
35520-27030

KM7#,85..4HC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

CM7#,85,KM7#..4HC

 1
90301-09012

KM7#,85..4HC

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
82711-2A730

KM7#,85..4HC

 1
90949-01C15

KM7#..4HC

 1
82711-2A730

KM7#..4HC

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
82711-2A730

KM7#,85..4HC

 1
90949-01C15

KM7#..4HC

 1
82711-2A730

KM7#..4HC

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35524-27010

KM7#,85..4HC

 1
35524-27010

KM7#..4HC

 1
Common parts
90461-08681
90461-08689
91621-J0612
91651-40610

ILLUST NO. 1 OF 2(9906- )4HC

Click highlighted areas on diagram

A42D,A44DF

diagram 35501 35505 35506C 35506F 35506F 35506H 35506H 35556 35556E 35557 35557A 35561 35572 35595 9010106024 9411050800 9451200800 9454200600
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-26020

KM7#,85..4HC

 1
35501-26020

CM7#,85,KM7#..4HC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-28010

CM7#,85,KM7#..4HC

 1
35505-28010

KM7#,85..4HC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

KM7#,85..4HC

 1
90254-04011

CM7#,85,KM7#..4HC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

KM7#,85..4HC

 2
90311-11003

CM7#,85,KM7#..4HC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11003

KM7#,85..4HC

 2
90311-11003

CM7#,85,KM7#..4HC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

CM7#,85,KM7#..4HC

 1
90560-20025

KM7#,85..4HC

 1
90560-20003

CM7#,85,KM7#..4HC

 1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

CM7#,85,KM7#..4HC

 1
90560-20025

KM7#,85..4HC

 1
90560-20003

CM7#,85,KM7#..4HC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-26010

KM7#,85..4HC

 1
35556-26010

CM7#,85,KM7#..4HC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

KM7#,85..4HC

 1
90523-08021

CM7#,85,KM7#..4HC

 1
35557 - PAWL, PARKING LOCK
35557-26020

CM7#,85,KM7#..4HC

 1
35557-26020

KM7#,85..4HC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21001

KM7#,85..4HC

 1
90508-21001

CM7#,85,KM7#..4HC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-40010

KM7#,85..4HC

 1
35561-40010

CM7#,85,KM7#..4HC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-28080

CM7#,85,KM7#..4HC

 1
35572-28080

KM7#,85..4HC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

CM7#,85,KM7#..4HC

 1
35595-40010

KM7#,85..4HC

 1
Common parts
90101-06024
94110-50800
94512-00800
94542-00600
