KM70-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )4HC

Click highlighted areas on diagram

A42D,A44DF

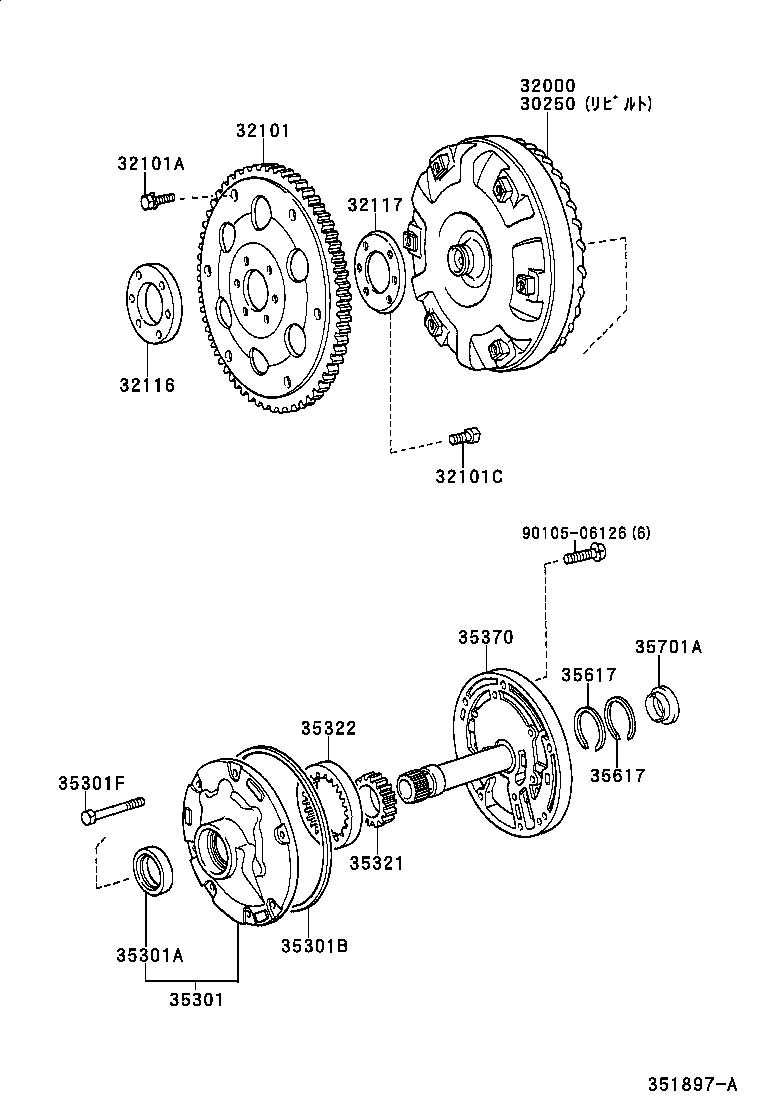

diagram 30250 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35321 35322 35370 35617 35617 35701A 9010506126
Part # Description Qty Price
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-28100

KM7#,85..4HC

 1
30250-28100

KM7#..4HC

 1
32000 - CONVERTER ASSY, TORQUE
32000-28100

KM7#..4HC

 1
32000-28100

KM7#,85..4HC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-27010

KM7#..4HC

 1
32101-27010

KM7#,85..4HC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08519

KM7#,85..4HC

*8−1.25PX10.5−5.6,ﾎﾜｲﾄ

 1
90119-08520

CM7#,85,KM7#..4HC

*8−1.25PX10.5−6.5,ｲｴﾛｰ

 5
90119-08520

KM7#,85..4HC

*8−1.25PX10.5−6.5,ｲｴﾛｰ

 5
90119-08C66

KM7#,85..4HC

*8−1.25PX10.5−6.9,ﾎﾜｲﾄ

 1
90119-08519

CM7#,85,KM7#..4HC

*8−1.25PX10.5−5.6,ﾎﾜｲﾄ

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10306

KM7#,85..4HC

 6
90105-10306

KM7#..4HC

 6
32116 - SPACER, DRIVE PLATE, FRONT
32115-27010

KM7#..4HC

 1
32115-27010

KM7#,85..4HC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-12020

KM7#..4HC

 1
32117-12020

KM7#,85..4HC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

CM7#,85,KM7#..4HC

 1
35301-14010

KM7#,85..4HC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

CM7#,85,KM7#..4HC

 1
90311-38064

CM7#,85,KM7#..4HC

 1
90311-38064

KM7#,85..4HC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

KM7#,85..4HC

 1
90301-99010

CM7#,85,KM7#..4HC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

CM7#,85,KM7#..4HC

 7
90105-08137

KM7#,85..4HC

 7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22100

CM7#,85,KM7#..4HC

厚さ=15.275−15.266

 1
35321-22090

CM7#,85,KM7#..4HC

厚さ=15.265−15.255

 1
35321-22080

CM7#,85,KM7#..4HC

厚さ=15.254−15.245

 1
35321-22070

CM7#,85,KM7#..4HC

厚さ=15.244−15.235

 1
35321-22110

CM7#,85,KM7#..4HC

厚さ=15.285−15.276

 1
35321-22040

KM7#,85..4HC

厚さ=17.265−17.255

 1
35321-22050

KM7#,85..4HC

厚さ=17.275−17.266

 1
35321-22060

KM7#,85..4HC

厚さ=17.285−17.276

 1
35321-22020

KM7#,85..4HC

厚さ=17.244−17.235

 1
35321-22030

KM7#,85..4HC

厚さ=17.254−17.245

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22090

CM7#,85,KM7#..4HC

厚さ=15.265−15.255

 1
35322-22070

CM7#,85,KM7#..4HC

厚さ=15.244−15.235

 1
35322-22020

KM7#,85..4HC

厚さ=17.244−17.235

 1
35322-22100

CM7#,85,KM7#..4HC

厚さ=15.275−15.266

 1
35322-22110

CM7#,85,KM7#..4HC

厚さ=15.285−15.276

 1
35322-22030

KM7#,85..4HC

厚さ=17.254−17.245

 1
35322-22080

CM7#,85,KM7#..4HC

厚さ=15.254−15.245

 1
35322-22040

KM7#,85..4HC

厚さ=17.265−17.255

 1
35322-22060

KM7#,85..4HC

厚さ=17.285−17.276

 1
35322-22050

KM7#,85..4HC

厚さ=17.275−17.266

 1
35370 - SHAFT ASSY, STATOR
35370-22050

KM7#..4HC

 1
35370-22050

KM7#,85..4HC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010

CM7#,85,KM7#..4HC

 2
35617-32010

KM7#,85..4HC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010

CM7#,85,KM7#..4HC

 2
35617-32010

KM7#,85..4HC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

KM7#,85..4HC

 1
90374-25003

CM7#,85,KM7#..4HC

 1
Common parts
90105-06126
