KM70-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )7KE

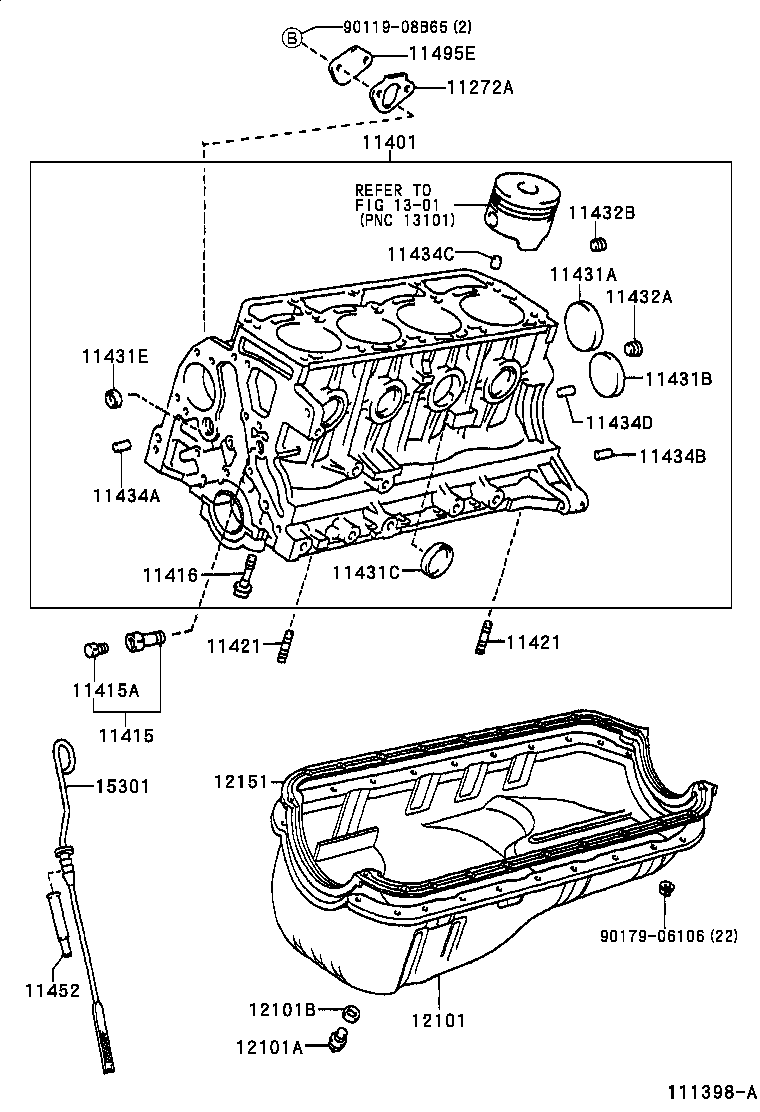

Click highlighted areas on diagram

diagram 11272A 11401 11415 11415A 11416 11421 11421 11431A 11431B 11431C 11431E 11432A 11432B 11434A 11434B 11434C 11434D 11452 11495E 12101 12101A 12101B 12151 1301 15301 9011908B65 9017906106
Part # Description Qty Price
11272A - GASKET, CYLINDER BLOCK SIDE COVER, NO.2
11496-13010

7KE..KM7#,8#

 1
11496-13010

7KE..KM7#,8#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-09160

7KE..KM7#,8#

 1
11401-09160

7KE..KM7#,8#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09107

7KE..KM7#,8#

 1
90910-09107

7KE..KM7#,8#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

7KE..KM7#,8#

 1
90910-09087

7KE..KM7#,8#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

7KE..KM7#,8#

 10
90910-02019

7KE..KM7#,8#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90109-06291

7KE..KM7#,8#

 16
90109-06291

7KE..KM7#,8#

 16
11421 - BOLT, STUD(FOR OIL PAN)
90109-06291

7KE..KM7#,8#

 16
90109-06291

7KE..KM7#,8#

 16
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-47025

7KE..KM7#,8#

 1
90331-47025

7KE..KM7#,8#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-64500

7KE..KM7#,8#

 1
96411-64500

7KE..KM7#,8#

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-63500

7KE..KM7#,8#

 4
96411-63500

7KE..KM7#,8#

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96412-01800

7KE..KM7#,8#

 1
96412-01800

7KE..KM7#,8#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

7KE..KM7#,8#

 1
90344-53011

7KE..KM7#,8#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-51014

7KE..KM7#,8#

 3
90344-51014

7KE..KM7#,8#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

7KE..KM7#,8#

長さ=18,外径=8

 2
90250-08120

7KE..KM7#,8#

長さ=18,外径=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

7KE..KM7#,8#

長さ=22,外径=10

 2
90250-10113

7KE..KM7#,8#

長さ=22,外径=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

7KE..KM7#,8#

長さ=18,外径=8

 2
90250-08120

7KE..KM7#,8#

長さ=18,外径=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

7KE..KM7#,8#

長さ=18,外径=8

 2
90250-08120

7KE..KM7#,8#

長さ=18,外径=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-13050

7KE..KM7#,8#

 1
11452-13050

7KE..KM7#,8#

 1
11495E - PLUG, PLATE
11495-40010

7KE..KM7#,8#

 1
11495-40010

7KE..KM7#,8#

 1
12101 - PAN SUB-ASSY, OIL
12101-06021

7KE..KM7#,8#

 1
12101-06020

7KE..KM7#,8#

 1
12101-06021

7KE..KM7#,8#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

7KE..KM7#,8#

 1
90341-12012

7KE..KM7#,8#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

7KE..KM7#,8#

 1
90430-12031

7KE..KM7#,8#

 1
12151 - GASKET, OIL PAN
12151-13030

7KE..KM7#,8#

 1
12151-13030

7KE..KM7#,8#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-13040

7KE..KM7#,8#

 1
15301-13040

7KE..KM7#,8#

 1
Common parts
90119-08B65
90179-06106
Linked diagrams
1301
