KM70-TLQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)CM7#,KM7# ; (0208- )CM7#,KM7#..CBU,IV3

Click highlighted areas on diagram

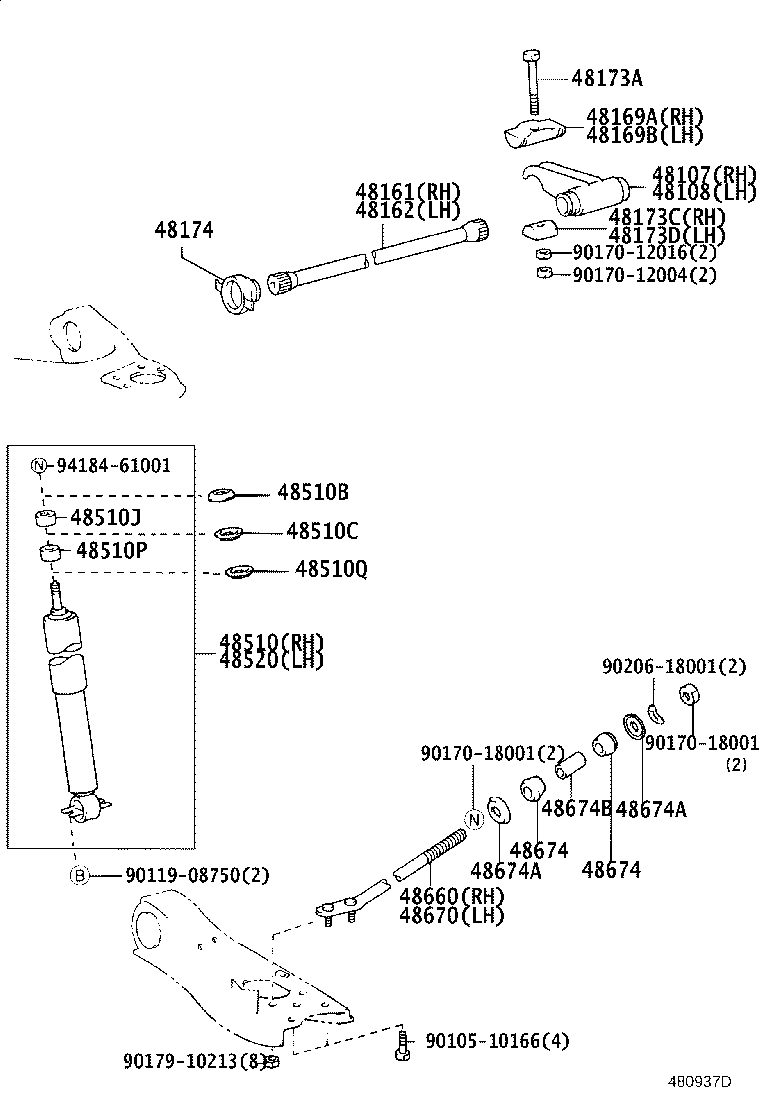

diagram 48107 48108 48161 48162 48169A 48169B 48173A 48173C 48173D 48174 48510 48510B 48510C 48510J 48510P 48510Q 48520 48660 48670 48674 48674 48674A 48674A 48674B 9010510166 9011908750 9017012004 9017012016 9017018001 9017018001 9017910213 9020618001 9418461001
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-27060

CM7#,8#,KM7#,8#

 1
48107-27060

KM7#,8#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27060

CM7#,8#,KM7#,8#

 1
48108-27060

KM7#,8#

 1
48161 - SPRING, TORSION BAR, RH
48161-27270

KM7#..CBU,IV3

 1
48161-27220

CM7#,KM7#

 1
48162 - SPRING, TORSION BAR, LH
48162-27220

CM7#,KM7#

 1
48162-27270

KM7#..CBU,IV3

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-26020

CM7#,8#,KM7#,8#

 1
48169-26020

KM7#,8#

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-26020

CM7#,8#,KM7#,8#

 1
48169-26020

KM7#,8#

 1
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM7#,8#,KM7#,8#

 2
90101-12059

KM7#,8#

 2
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-27010

CM7#,8#,KM7#,8#

 1
48173-27010

KM7#,8#

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-27010

CM7#,8#,KM7#,8#

 1
48173-27010

KM7#,8#

 1
48174 - COVER, TORSION BAR DUST
48175-27030

CM7#,8#,KM7#,8#

 2
48175-27030

KM7#,8#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80096

KM7#..CBU,IV3

ﾏｰｸ 48511−27050

 1
48500-29366

CM7#,KM7#

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM7#,8#,KM7#,8#

 2
90948-02002

KM7#,8#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02105

KM7#,8#

 2
90948-02105

CM7#,8#,KM7#,8#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01003

CM7#,8#,KM7#,8#

 2
90948-01003

KM7#,8#

 2
48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2
90948-01029

CM7#,8#,KM7#,8#

 2
90948-01029

KM7#,8#

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02076

CM7#,8#,KM7#,8#

 2
90948-02076

KM7#,8#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29366

CM7#,KM7#

 1
48511-80096

KM7#..CBU,IV3

ﾏｰｸ 48511−27050

 1
48660 - BAR ASSY, STRUT, RH
48660-27060

KM7#..CBU,IV3

ｱﾘ(ABS)

 1
48660-27020

CM7#,KM7#

 1
48660-27060

CM7#,KM7#

ｱﾘ(ABS)

 1
48660-27020

KM7#..CBU,IV3

 1
48670 - BAR ASSY, STRUT, LH
48670-27060

KM70..JL..5H;KM70..1SO..5H;KM70..SJL..3SO;CM7#,KM75..CBU,IV3

ｱﾘ(ABS)

 1
48670-27020

CM7#,KM7#

 1
48670-27020

KM7#..CBU,IV3

 1
48670-27060

KM7#..CBU,IV3

ｱﾘ(ABS)

 1
48670-27060

CM7#,KM7#

ｱﾘ(ABS)

 1
48674 - CUSHION, STRUT BAR
48674-22021

KM7#..CBU,IV3

 4
48674-22021

CM7#,KM7#

 4
48674 - CUSHION, STRUT BAR
48674-22021

KM7#..CBU,IV3

 4
48674-22021

CM7#,KM7#

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM7#,KM7#

 4
90948-02030

KM7#..CBU,IV3

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

CM7#,KM7#

 4
90948-02030

KM7#..CBU,IV3

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18090

CM7#,KM7#

 2
90387-18090

KM7#..CBU,IV3

 2
Common parts
90105-10166
90119-08750
90170-12004
90170-12016
90170-18001
90179-10213
90206-18001
94184-61001

(9906-0208)CM8#,KM8# ; (0208- )KM85..5H ; (0208- )CM75,8#,KM75,80..JL ; (0501

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169A 48169B 48173A 48173C 48173D 48174 48510 48510B 48510C 48510J 48510P 48510Q 48520 48811 48815 48815A 48819A 48824A 48825 48827 48828 48829A 48836 48837 9010112157 9011908C44 9017012004 9017012016 9017912020 9094801003 9094801003 9094802002 9094802002 9094802168 9164180822 91641K0822 91641K0822 91641K0822 91651B0820 91651B0820 9418461001 9418461001
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-27060

CM7#,8#,KM7#,8#

 1
48107-27060

KM7#,8#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27060

CM7#,8#,KM7#,8#

 1
48108-27060

KM7#,8#

 1
48161 - SPRING, TORSION BAR, RH
48161-27270

KM7#..CBU,IV3

 1
48161-27220

CM7#,KM7#

 1
48162 - SPRING, TORSION BAR, LH
48162-27220

CM7#,KM7#

 1
48162-27270

KM7#..CBU,IV3

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-26020

CM7#,8#,KM7#,8#

 1
48169-26020

KM7#,8#

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-26020

CM7#,8#,KM7#,8#

 1
48169-26020

KM7#,8#

 1
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12059

CM7#,8#,KM7#,8#

 2
90101-12059

KM7#,8#

 2
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-27010

CM7#,8#,KM7#,8#

 1
48173-27010

KM7#,8#

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-27010

CM7#,8#,KM7#,8#

 1
48173-27010

KM7#,8#

 1
48174 - COVER, TORSION BAR DUST
48175-27030

CM7#,8#,KM7#,8#

 2
48175-27030

KM7#,8#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80096

KM7#..CBU,IV3

ﾏｰｸ 48511−27050

 1
48500-29366

CM7#,KM7#

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

CM7#,8#,KM7#,8#

 2
90948-02002

KM7#,8#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02105

KM7#,8#

 2
90948-02105

CM7#,8#,KM7#,8#

 2
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01003

CM7#,8#,KM7#,8#

 2
90948-01003

KM7#,8#

 2
48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2
90948-01029

CM7#,8#,KM7#,8#

 2
90948-01029

KM7#,8#

 2
48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
90948-02076

CM7#,8#,KM7#,8#

 2
90948-02076

KM7#,8#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29366

CM7#,KM7#

 1
48511-80096

KM7#..CBU,IV3

ﾏｰｸ 48511−27050

 1
Common parts
90101-12157
90119-08C44
90170-12004
90170-12016
90179-12020
90948-01003
90948-02002
90948-02168
91641-80822
91641-K0822
91651-B0820
94184-61001
