KM70-TBSDE (2002)

Toyota Lite/Townace

Production Aug 2002 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

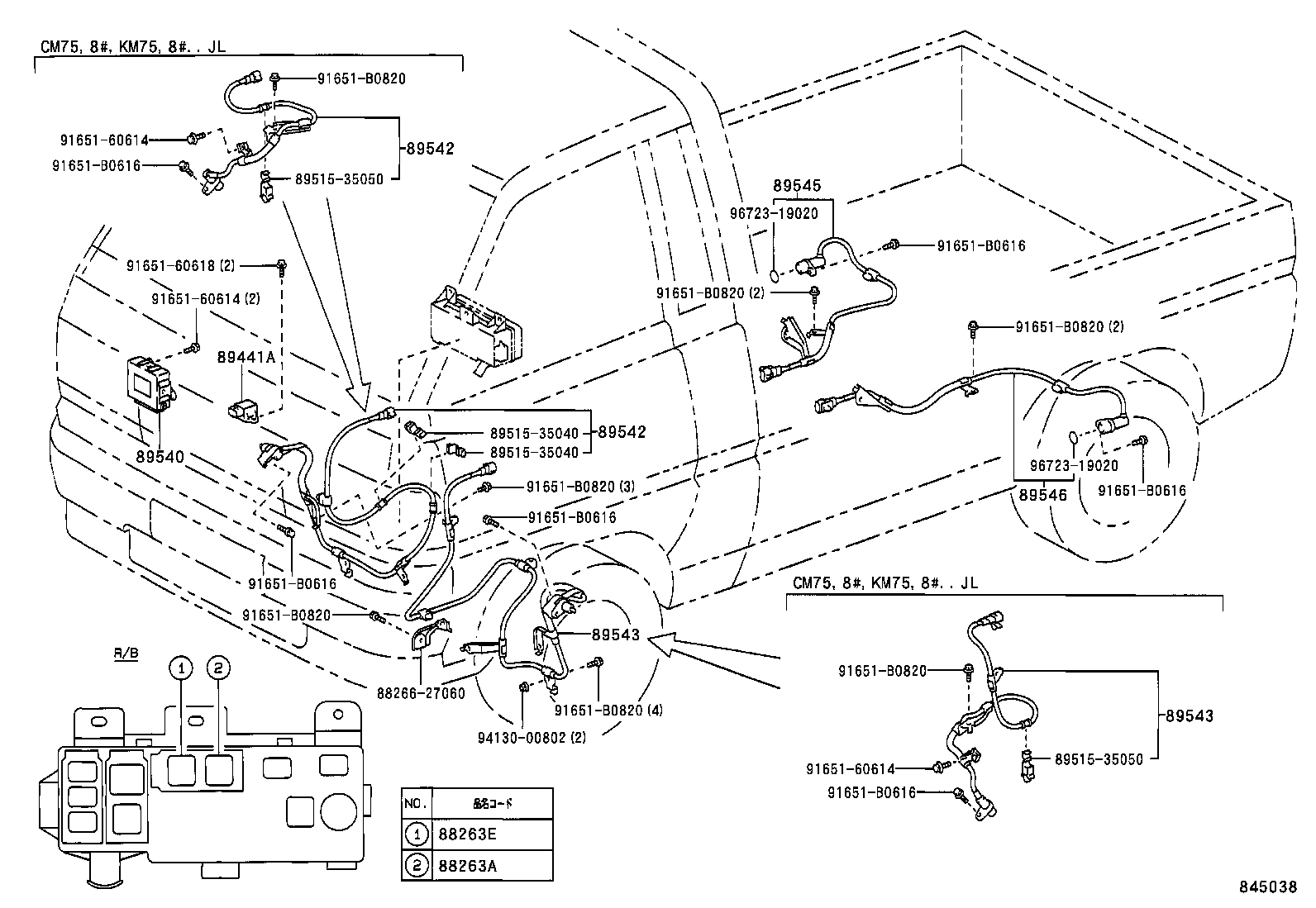

Click highlighted areas on diagram

diagram 88263A 88263E 8826627060 89441A 8951535040 8951535040 8951535050 8951535050 89540 89542 89542 89543 89543 89545 89546 9165160614 9165160614 9165160614 9165160618 91651B0616 91651B0616 91651B0616 91651B0616 91651B0616 91651B0616 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 9413000802 9672319020 9672319020
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

CM7#,8#,KM7#,8#

 1
88263-14110

CM7#,8#,KM7#,8#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

CM7#,8#,KM7#,8#

 1
88263-24030

CM7#,8#,KM7#,8#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-27030

KM70..1SO;CM70,KM70..IV3;CM70,KM70..JL..CBU

 1
89540-27010

CM7#,KM7#

 1
89540-27031

KM70..IV3;KM70..1SO;KM70..JL..CBU

 1
89542 - SENSOR, SPEED, FRONT RH
89542-27010

CM7#,KM7#

 1
89542-27030

CM7#,KM7#..CBU,IV3

 1
89542 - SENSOR, SPEED, FRONT RH
89542-27010

CM7#,KM7#

 1
89542-27030

CM7#,KM7#..CBU,IV3

 1
89543 - SENSOR, SPEED, FRONT LH
89543-27030

CM7#,KM7#..CBU,IV3

 1
89543-27010

CM7#,KM7#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-27030

CM7#,KM7#..CBU,IV3

 1
89543-27010

CM7#,KM7#

 1
89545 - SENSOR, SPEED, REAR RH
89545-27040

CM70,KM70..JL

 1
89545-27020

CM70,KM70..JL,T1

 1
89546 - SENSOR, SPEED, REAR LH
89546-27020

CM70,KM70..JL,T1

 1
89546-27040

CM70,KM70..JL

 1
Common parts
88266-27060
89515-35040
89515-35050
91651-60614
91651-60618
91651-B0616
91651-B0820
94130-00802
96723-19020
