KM70-TBSDE (2002)

Toyota Lite/Townace

Production Aug 2002 - Aug 2007
Engine 7KE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )7KE..KM7#,85..4HC ; (0208- )7KE..KM7#,85..5H..IV3,IV6

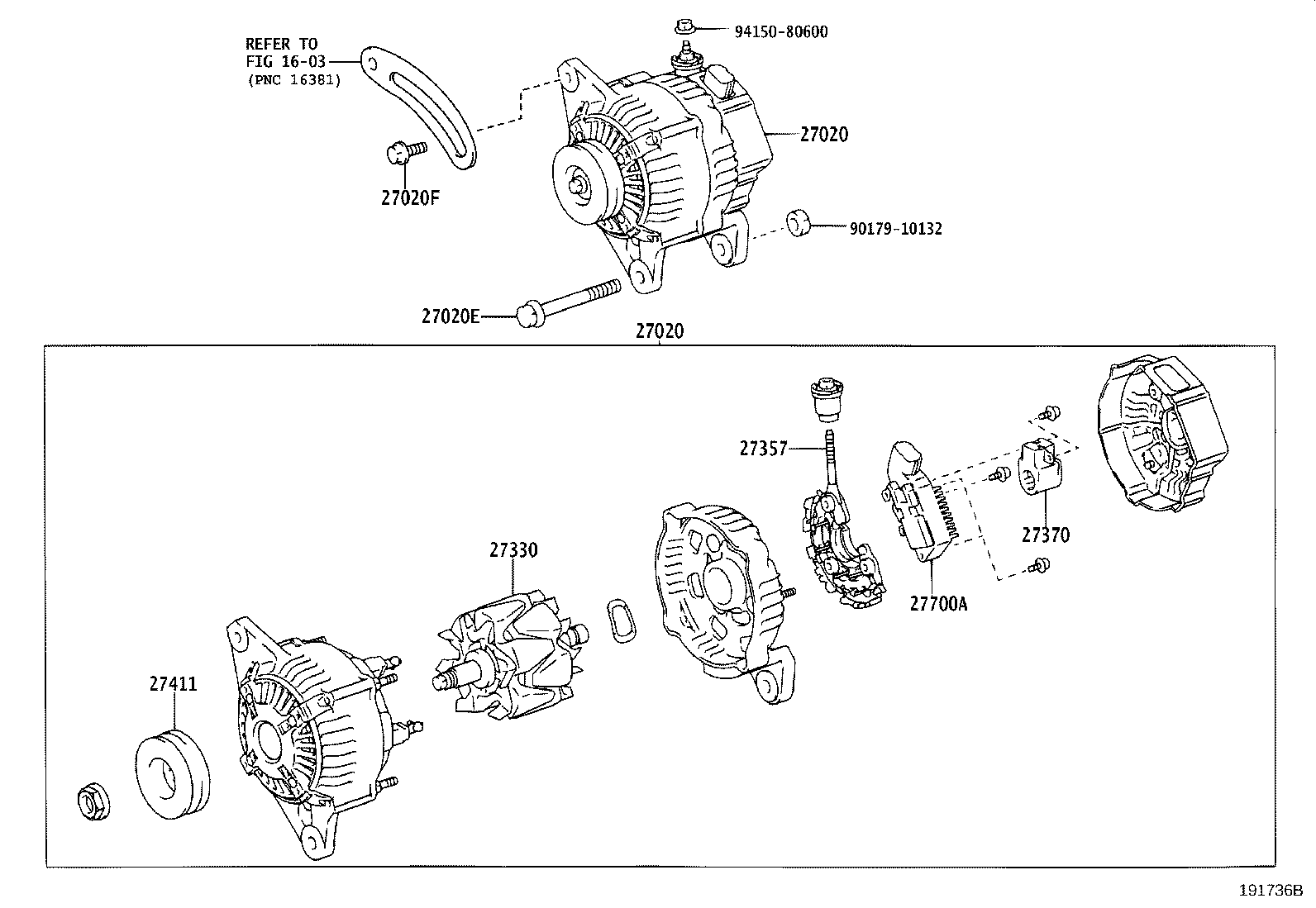

Click highlighted areas on diagram

12V 80A

diagram 1603 27020 27020 27020E 27020F 27330 27357 27370 27411 27700A 9017910132 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-13110

7KE..KM7#..4HC

12V 70A

 1
27060-13090

7KE..KM7#,85..4HC;7KE..KM7#,85..5H..(IV3,IV6)

12V 80A

 1
27020 - ALTERNATOR ASSY
27060-13110

7KE..KM7#..4HC

12V 70A

 1
27060-13090

7KE..KM7#,85..4HC;7KE..KM7#,85..5H..(IV3,IV6)

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10221

7KE..KM7#,8#

 1
90105-10221

7KE..KM7#,8#

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90119-08654

7KE..KM7#,8#

 1
90119-08654

7KE..KM7#,8#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

7KE..KM7#..4HC;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU

12V 70A,80A

 1
27330-16390

7KE..KM85..IV6;7KE..KM7#..1SO..4HC;7KE..KM70,85..JL..4HC

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

7KE..KM7#..1SO..4HC;7KE..KM70,85..JL..4HC;7KE..KM85..5H..(IV3,IV6)

 1
27357-55080

7KE..KM7#..4HC;3CE..CM7#,85..IV3;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU

12V 70A,80A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

7KE..KM7#..1SO..4HC;7KE..KM70,85..JL..4HC;7KE..KM85..5H..(IV3,IV6)

 1
27370-75060

7KE..KM7#..4HC;3CE..CM7#,85..IV3;7KE..KM7#..5H..IV3;3CE..CM75,85..(JL,SJL)..TS..5H..CBU

12V 70A,80A

 1
27411 - PULLEY, ALTERNATOR
27411-13390

7KE..KM7#..4HC;7KE..KM7#..5H..IV3

12V 70A,80A

 1
27411-13390

7KE..KM7#..1SO..4HC;7KE..KM70,85..JL..4HC;7KE..KM85..5H..(IV3,IV6)

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13130

7KE..KM7#,8#

 1
27700-13130

7KE..KM7#,8#

 1
Common parts
90179-10132
94150-80600
Linked diagrams
1603
