KM70-TBQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)7KE

Click highlighted areas on diagram

diagram 17303B 17341T 23265 25860 9046400079 9046400175 9099992002 9099992002 9099992003 91621J0814 9162640818
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13220

7KE..KM7#,8#

 1
17303-13220

7KE..KM7#,8#

 1
17341T - HOSE, AIR, NO.1
90999-92002

7KE..KM7#,8#

 1
90999-92002

7KE..KM7#,8#

 1
23265 - FILTER, GAS, NO.1
90917-11037

7KE..KM7#,8#

 1
90917-11037

7KE..KM7#,8#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-13120

7KE..KM7#,8#

 1
25860-13110

7KE..KM7#,8#

 1
Common parts
90464-00079
90464-00175
90999-92002
90999-92003
91621-J0814
91626-40818

(0208- )7KE

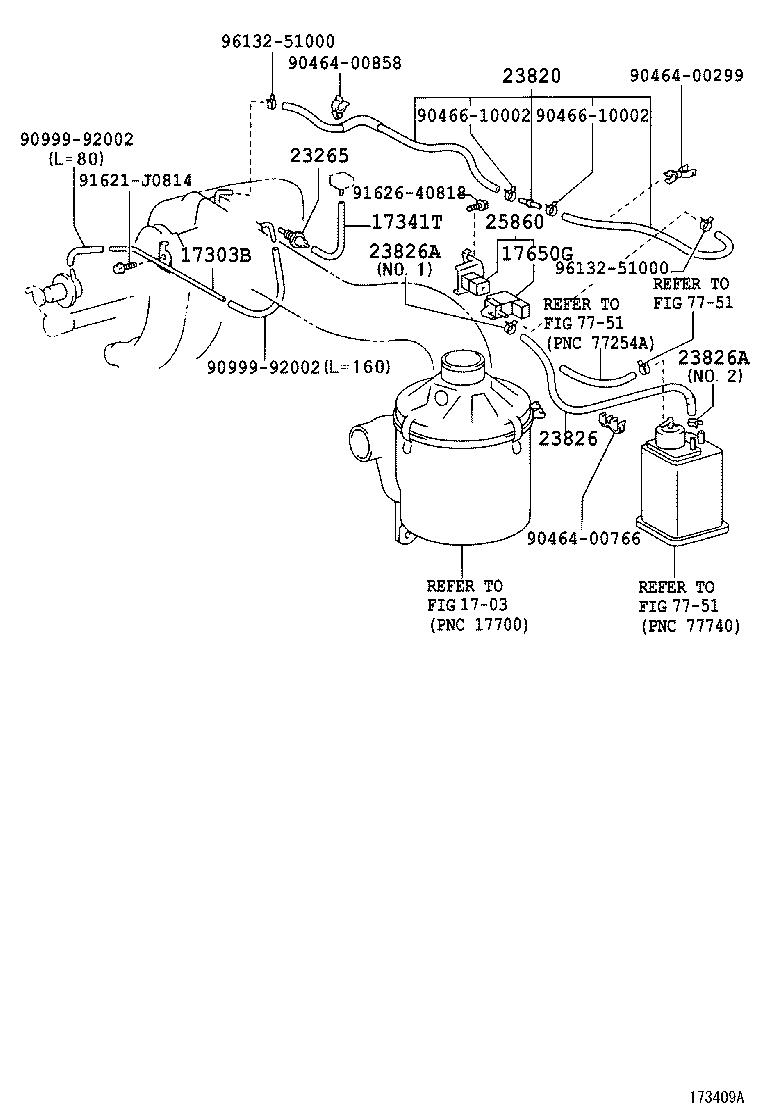

Click highlighted areas on diagram

diagram 1703 17303B 17341T 17650G 23265 23820 23826 23826A 23826A 25860 7751 7751 7751 9046400299 9046400766 9046400858 9046610002 9046610002 9099992002 9099992002 91621J0814 9162640818 9613251000 9613251000
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13220

7KE..KM7#,8#

 1
17303-13220

7KE..KM7#,8#

 1
17341T - HOSE, AIR, NO.1
90999-92002

7KE..KM7#,8#

 1
90999-92002

7KE..KM7#,8#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12187

7KE..KM7#,8#

 1
23265 - FILTER, GAS, NO.1
90917-11037

7KE..KM7#,8#

 1
90917-11037

7KE..KM7#,8#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-13010

7KE..KM7#,8#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-13110

7KE..KM7#,8#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-09001

7KE..KM7#,8#

NO.1

 1
90466-11003

7KE..KM7#,8#

NO.2

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-09001

7KE..KM7#,8#

NO.1

 1
90466-11003

7KE..KM7#,8#

NO.2

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-13120

7KE..KM7#,8#

 1
25860-13110

7KE..KM7#,8#

 1
Common parts
90464-00299
90464-00766
90464-00858
90466-10002
90999-92002
91621-J0814
91626-40818
96132-51000
Linked diagrams
1703
7751
