KM70-TBQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )7KE

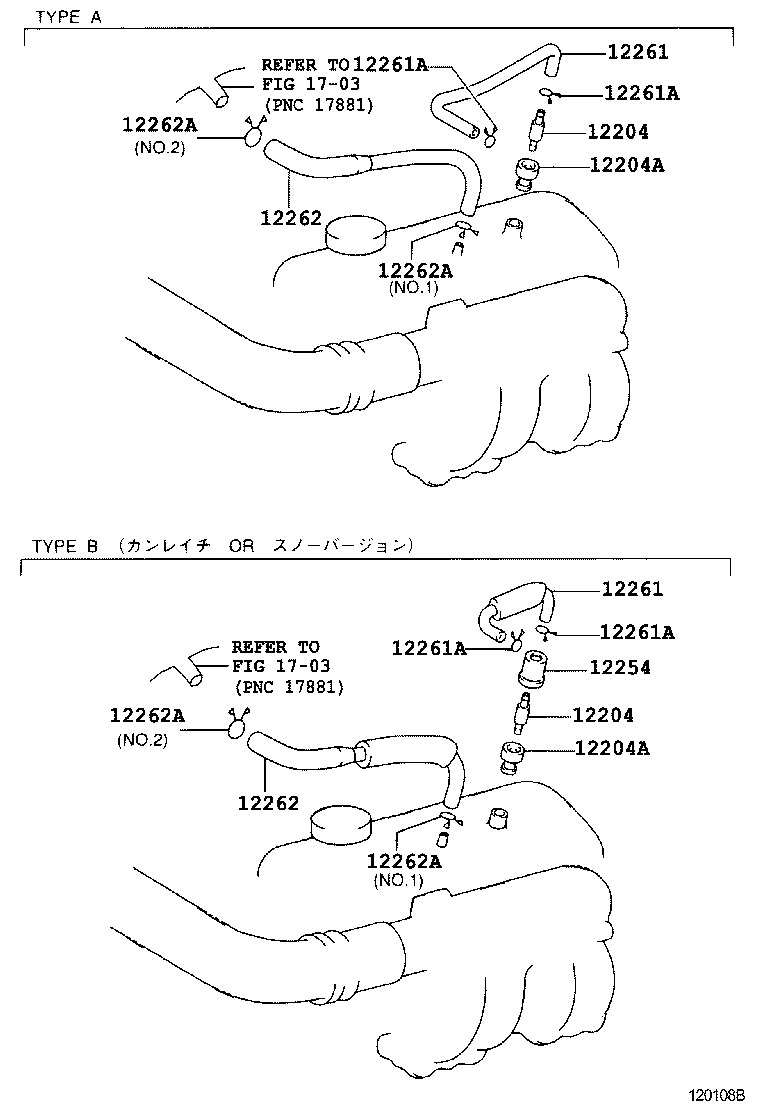

Click highlighted areas on diagram

diagram 12204 12204 12204A 12204A 12254 12261 12261 12261A 12261A 12261A 12261A 12262 12262 12262A 12262A 12262A 12262A 1703 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-13030

7KE..KM7#,8#

 1
12204-13030

7KE..KM7#,8#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-13030

7KE..KM7#,8#

 1
12204-13030

7KE..KM7#,8#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

7KE..KM7#,8#

 1
90480-16003

7KE..KM7#,8#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

7KE..KM7#,8#

 1
90480-16003

7KE..KM7#,8#

 1
12254 - COVER, VENTILATION VALVE
12236-13010

7KE..KM7#,8#

 1
12236-13010

7KE..KM7#,8#

 1
12261 - HOSE, VENTILATION
12261-13090

7KE..KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261-13120

7KE..KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261-13090

7KE..KM7#,80;7KE..KM85..5H

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261-13120

7KE..KM7#,80;7KE..KM85..5H

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261 - HOSE, VENTILATION
12261-13090

7KE..KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261-13120

7KE..KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261-13090

7KE..KM7#,80;7KE..KM85..5H

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261-13120

7KE..KM7#,80;7KE..KM85..5H

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

7KE..KM7#,8#

 2
90467-14001

7KE..KM7#,8#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

7KE..KM7#,8#

 2
90467-14001

7KE..KM7#,8#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

7KE..KM7#,8#

 2
90467-14001

7KE..KM7#,8#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

7KE..KM7#,8#

 2
90467-14001

7KE..KM7#,8#

 2
12262 - HOSE, VENTILATION, NO.2
12262-13050

7KE..KM7#,80;7KE..KM85..5H

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262-13080

7KE..KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262-13050

7KE..KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262-13080

7KE..KM7#,80;7KE..KM85..5H

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262 - HOSE, VENTILATION, NO.2
12262-13050

7KE..KM7#,80;7KE..KM85..5H

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262-13080

7KE..KM7#,8#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262-13050

7KE..KM7#,8#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262-13080

7KE..KM7#,80;7KE..KM85..5H

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-22010

7KE..KM7#,8#

NO.2

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
90467-17126

7KE..KM7#,8#

NO.1

 1
