KM70-TBQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2007
Engine 7KE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

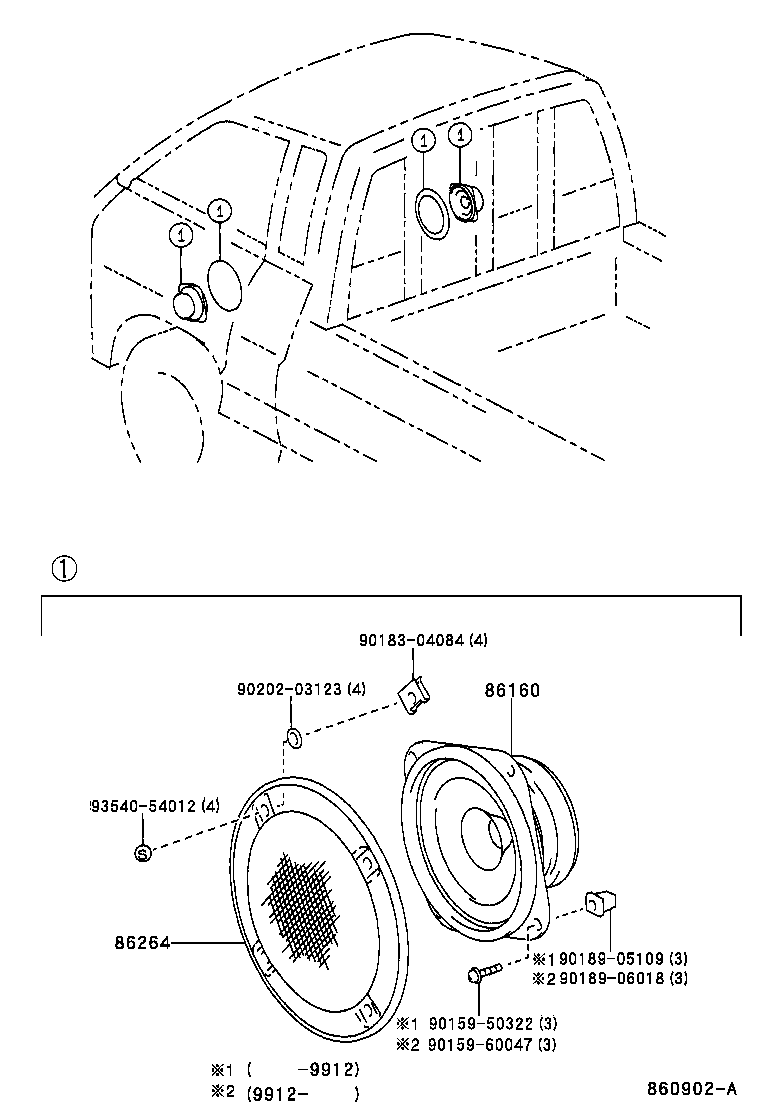

Click highlighted areas on diagram

diagram 86160 86264 9015950322 9015960047 9018304084 9018905109 9018906018 9020203123 9354054012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-27040

KM7#,8#

2ｽﾋﾟ-ｶ

 2
86160-27040

CM7#,8#,KM7#,8#

2ｽﾋﾟ-ｶ

 2
86160-27040

CM7#,8#,KM7#,8#..DX

1ｽﾋﾟ-ｶ

 1
Common parts
90159-50322
90159-60047
90183-04084
90189-05109
90189-06018
90202-03123
93540-54012
