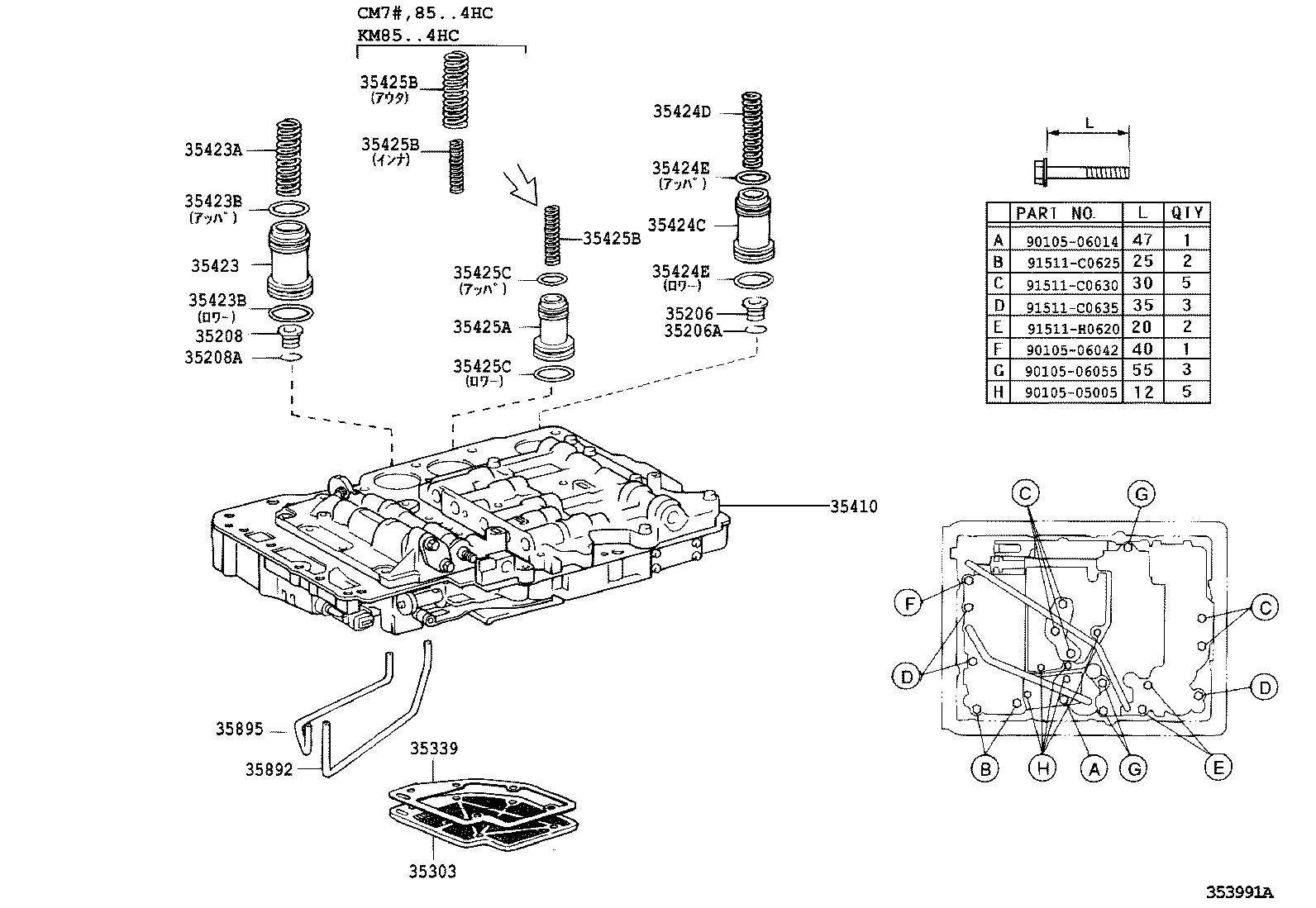

Toyota Lite/townace CM85 VALVE BODY & OIL STRAINER (ATM)

Part #	Description	Period	Qty
35206 - SPRING SUB-ASSY, C-1 ACCUMULATOR
35206-28010	CM7#,85..4HC	06/1999 - 08/2002	1
35206A - RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)
90521-22004	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR
35208-26010	CM7#,85..4HC	08/2002 - 08/2004	1
35208-26010	CM7#,85..4HC	06/1999 - 08/2002	1
35208-28010	KM7#,85..4HC	08/2002 - 12/2999	1
35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
90521-22004	KM7#,85..4HC	08/2002 - 12/2999	1
90521-22004	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
90521-22004	CM7#,85..4HC	08/2002 - 08/2004	1
35303 - STRAINER SUB-ASSY, OIL
35303-35020	KM7#,85..4HC	08/2002 - 12/2999	1
35303-35020	CM7#,85..4HC	08/2002 - 08/2004	1
35303-30050	CM7#,85,KM7#..4HC	06/1999 - 01/2002	1
35339 - GASKET, OIL STRAINER
35339-28010	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
35339-28010	CM7#,85..4HC	08/2002 - 08/2004	1
35339-28010	KM7#,85..4HC	08/2002 - 12/2999	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-28380	CM85..4HC	06/1999 - 01/2002	1
35410-27150	CM85..4HC	08/2002 - 08/2004	1
35423 - PISTON, B-2 ACCUMULATOR
35421-26010	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
35421-26010	CM7#,85..4HC	08/2002 - 08/2004	1
35421-26010	KM7#,85..4HC	08/2002 - 12/2999	1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-25037	CM7#,85..4HC	06/1999 - 08/2002	1
90501-25037	CM85..4HC	08/2002 - 08/2004	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-23010	CM7#,85,KM7#..4HC 上側	06/1999 - 08/2002	1
90301-29011	CM7#,85..4HC 下側	08/2002 - 08/2004	1
90301-29011	KM7#,85..4HC 下側	08/2002 - 12/2999	1
90301-23010	CM7#,85..4HC 上側	08/2002 - 08/2004	1
90301-29011	CM7#,85,KM7#..4HC 下側	06/1999 - 08/2002	1
90301-23010	KM7#,85..4HC 上側	08/2002 - 12/2999	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-23010	CM7#,85,KM7#..4HC 上側	06/1999 - 08/2002	1
90301-29011	CM7#,85..4HC 下側	08/2002 - 08/2004	1
90301-29011	KM7#,85..4HC 下側	08/2002 - 12/2999	1
90301-23010	CM7#,85..4HC 上側	08/2002 - 08/2004	1
90301-29011	CM7#,85,KM7#..4HC 下側	06/1999 - 08/2002	1
90301-23010	KM7#,85..4HC 上側	08/2002 - 12/2999	1
35424C - PISTON, C-1 ACCUMULATOR
35421-22030	CM85..4HC	06/1999 - 08/2002	1
35421-22030	KM7#,85..4HC	08/2002 - 12/2999	1
35421-22030	CM7#,85..4HC	08/2002 - 08/2004	1
35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-19017	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
90501-20063	KM7#,85..4HC	08/2002 - 12/2999	1
90501-20063	CM7#,85..4HC	08/2002 - 08/2004	1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-21012	CM7#,85,KM7#..4HC 上側	06/1999 - 08/2002	1
90301-21012	KM7#,85..4HC 上側	08/2002 - 12/2999	1
90301-21012	CM7#,85..4HC 上側	08/2002 - 08/2004	1
90301-26012	CM7#,85..4HC 下側	08/2002 - 08/2004	1
90301-26012	KM7#,85..4HC 下側	08/2002 - 12/2999	1
90301-26012	CM7#,85,KM7#..4HC 下側	06/1999 - 08/2002	1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-21012	CM7#,85,KM7#..4HC 上側	06/1999 - 08/2002	1
90301-21012	KM7#,85..4HC 上側	08/2002 - 12/2999	1
90301-21012	CM7#,85..4HC 上側	08/2002 - 08/2004	1
90301-26012	CM7#,85..4HC 下側	08/2002 - 08/2004	1
90301-26012	KM7#,85..4HC 下側	08/2002 - 12/2999	1
90301-26012	CM7#,85,KM7#..4HC 下側	06/1999 - 08/2002	1
35425A - PISTON, C-2 ACCUMULATOR
35441-30010	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
35423-30010	CM7#,85..4HC	08/2002 - 08/2004	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-27016	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
90501-18041	CM85..4HC 内側	08/2002 - 08/2004	1
90501-16093	CM7#,85..4HC 外側	08/2002 - 08/2004	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-27016	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
90501-18041	CM85..4HC 内側	08/2002 - 08/2004	1
90501-16093	CM7#,85..4HC 外側	08/2002 - 08/2004	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-27016	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
90501-18041	CM85..4HC 内側	08/2002 - 08/2004	1
90501-16093	CM7#,85..4HC 外側	08/2002 - 08/2004	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-26012	CM7#,85..4HC 下側	08/2002 - 08/2004	1
90301-18010	CM7#,85,KM7#..4HC 上側	06/1999 - 08/2002	1
90301-26012	CM7#,85,KM7#..4HC 下側	06/1999 - 08/2002	1
90301-26012	KM7#,85..4HC 下側	08/2002 - 12/2999	1
90301-18010	KM7#,85..4HC 上側	08/2002 - 12/2999	1
90301-18010	CM7#,85..4HC 上側	08/2002 - 08/2004	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-26012	CM7#,85..4HC 下側	08/2002 - 08/2004	1
90301-18010	CM7#,85,KM7#..4HC 上側	06/1999 - 08/2002	1
90301-26012	CM7#,85,KM7#..4HC 下側	06/1999 - 08/2002	1
90301-26012	KM7#,85..4HC 下側	08/2002 - 12/2999	1
90301-18010	KM7#,85..4HC 上側	08/2002 - 12/2999	1
90301-18010	CM7#,85..4HC 上側	08/2002 - 08/2004	1
35892 - TUBE, OVERDRIVE BRAKE
35892-28020	CM7#,85..4HC	08/2002 - 08/2004	1
35892-28010	CM7#,85,KM7#..4HC	06/1999 - 01/2002	1
35892-28020	KM7#,85..4HC	08/2002 - 12/2999	1
35895 - TUBE, FRONT CLUTCH APPLY
35895-30021	KM7#,85..4HC	08/2002 - 12/2999	1
35895-30021	CM7#,85..4HC	08/2002 - 08/2004	1
35895-30021	CM7#,85,KM7#..4HC	06/1999 - 08/2002	1
Common parts
90105-05005
90105-06014
90105-06042
90105-06055
91511-C0625
91511-C0630
91511-C0635
91511-H0620

CM85-TBSDE6 (2002)

(0208- )4HC
