CM85-TBSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

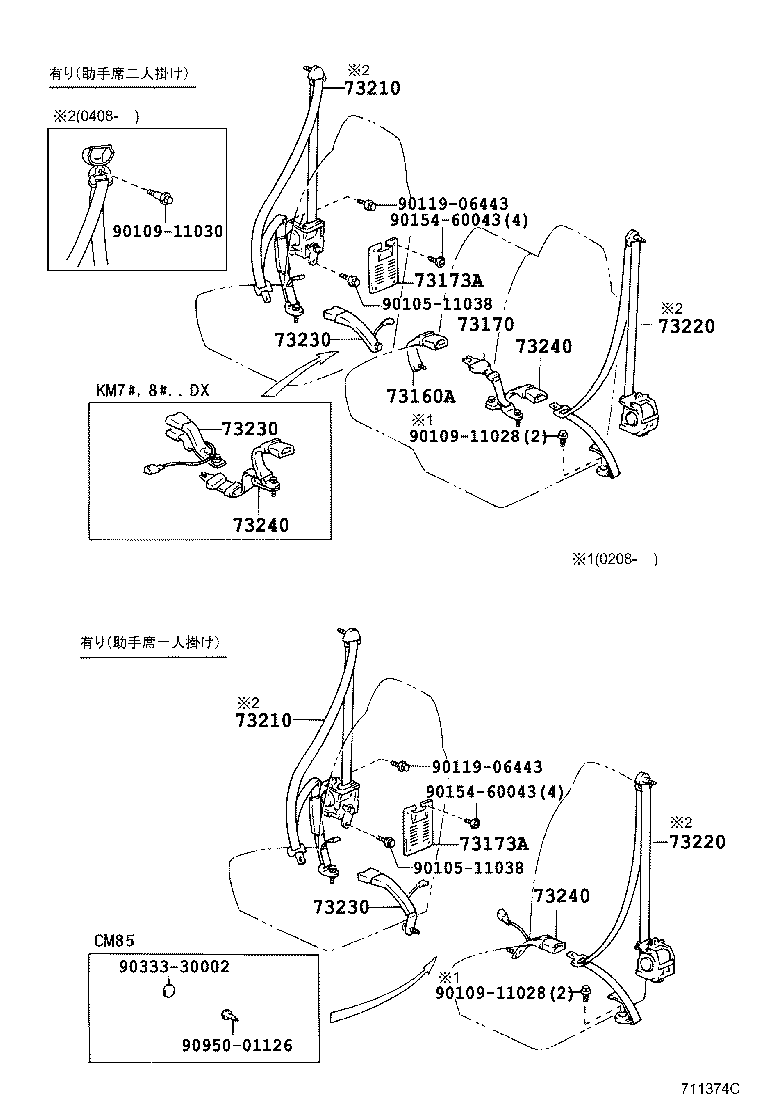

Click highlighted areas on diagram

diagram 73160A 73170 73173A 73173A 73210 73210 73220 73220 73230 73230 73230 73240 73240 73240 9010511038 9010511038 9010911028 9010911028 9010911030 9011906443 9011906443 9015460043 9015460043 9033330002 9095001126
Part # Description Qty Price
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73160-27020B0

CM7#..SJL;CM85..CBU,IV3

DK.CHARCOAL,TRIM1#

 1
73160-27010B0

CM7#,8#

DK.CHARCOAL,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73170-27010B0

CM7#..SJL;CM85..CBU,IV3

GRAY,TRIM1#

 1
73170-27010B0

CM7#,8#

GRAY,TRIM1#

 1
73173A - COVER, FRONT SEAT BELT HOLE
73173-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 2
73173A - COVER, FRONT SEAT BELT HOLE
73173-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-27040B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73210-27030B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-27040B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73210-27030B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-27040B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73220-27030B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-27040B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73220-27030B0

CM7#,8#,KM7#,8#

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-27030B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73230-27040B0

CM7#,8#

GRAY,TRIM1#

 1
73230-27080B0

CM7#,8#

DK.CHARCOAL,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-27030B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73230-27040B0

CM7#,8#

GRAY,TRIM1#

 1
73230-27080B0

CM7#,8#

DK.CHARCOAL,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-27030B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73230-27040B0

CM7#,8#

GRAY,TRIM1#

 1
73230-27080B0

CM7#,8#

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-27070B0

CM7#,8#

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27060B0

CM7#,8#

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27040B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27050B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27140B0

CM7#..SJL;CM85..CBU,IV3

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27090B0

CM85

ｱﾘ(ｼﾞｮｼｭｾｷ 1ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27130B0

CM7#..SJL;CM85..CBU,IV3

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27080B0

CM85

ｱﾘ(ｼﾞｮｼｭｾｷ 1ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-27070B0

CM7#,8#

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27060B0

CM7#,8#

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27040B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27050B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27140B0

CM7#..SJL;CM85..CBU,IV3

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27090B0

CM85

ｱﾘ(ｼﾞｮｼｭｾｷ 1ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27130B0

CM7#..SJL;CM85..CBU,IV3

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27080B0

CM85

ｱﾘ(ｼﾞｮｼｭｾｷ 1ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-27070B0

CM7#,8#

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27060B0

CM7#,8#

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27040B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27050B0

KM7#,8#..DX

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27140B0

CM7#..SJL;CM85..CBU,IV3

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27090B0

CM85

ｱﾘ(ｼﾞｮｼｭｾｷ 1ﾆﾝｶﾞｹ ｼｰﾄ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1#

 1
73240-27130B0

CM7#..SJL;CM85..CBU,IV3

ｱﾘ(ｼﾞｮｼｭｾｷ 2ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
73240-27080B0

CM85

ｱﾘ(ｼﾞｮｼｭｾｷ 1ﾆﾝｶﾞｹ ｼｰﾄ),GRAY,TRIM1#

 1
Common parts
90105-11038
90109-11028
90109-11030
90119-06443
90154-60043
90333-30002
90950-01126
