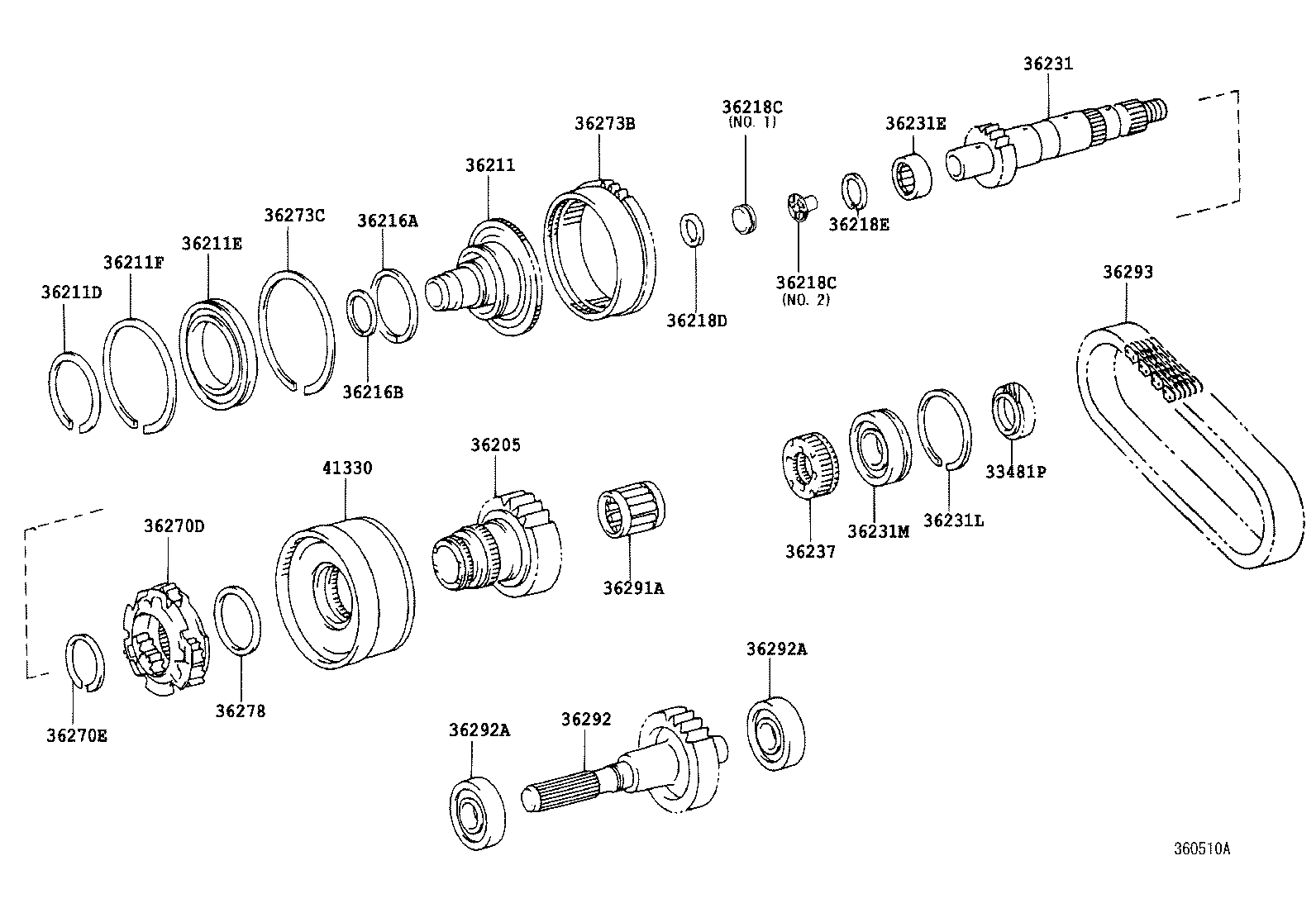

CM85-TBSDE3 (1999)
Toyota Lite/Townace
(9906- )KM85..5H ; (9906- )CM8#,KM80 ; (0502- )KM85..4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-26090 |
CM8# 歯数=6,ﾏｰｸ 2 |
1 | ||
| 33481-26090 |
CM8#,KM8# 歯数=6,ﾏｰｸ 2 |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-26020 |
CM8# |
1 | ||
| 36205-26020 |
CM8#,KM8# |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-28030 |
CM85..4HC |
1 | ||
| 36211-28030 |
CM85..4HC |
1 | ||
| 36211D - RING, HOLE SNAP (FOR TRANSFER INPUT SHAFT) | ||||
| 90520-72001 |
CM8#,KM8# 厚さ=1.45,ﾏｰｸ 1 |
1 | ||
| 90520-72002 |
CM8#,KM8# 厚さ=1.50,ﾏｰｸ 2 |
1 | ||
| 90520-72004 |
CM8#,KM8# 厚さ=1.60,ﾏｰｸ 4 |
1 | ||
| 90520-72002 |
CM8# 厚さ=1.50,ﾏｰｸ 2 |
1 | ||
| 90520-72003 |
CM8#,KM8# 厚さ=1.55,ﾏｰｸ 3 |
1 | ||
| 90520-72005 |
CM8#,KM8# 厚さ=1.65,ﾏｰｸ 5 |
1 | ||
| 90520-72003 |
CM8# 厚さ=1.55,ﾏｰｸ 3 |
1 | ||
| 90520-72004 |
CM8# 厚さ=1.60,ﾏｰｸ 4 |
1 | ||
| 90520-72005 |
CM8# 厚さ=1.65,ﾏｰｸ 5 |
1 | ||
| 90520-72001 |
CM8# 厚さ=1.45,ﾏｰｸ 1 |
1 | ||
| 36211E - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
CM8#,KM8# |
1 | ||
| 90363-75001 |
CM8# |
1 | ||
| 36211F - RING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT) | ||||
| 90520-99001 |
CM8# |
1 | ||
| 90520-99001 |
CM8#,KM8# |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-28010 |
CM8#,KM8# |
1 | ||
| 36216-28010 |
CM8# |
1 | ||
| 36216B - RING, TRANSFER INPUT SHAFT SEAL, NO.2 | ||||
| 36216-28020 |
CM8# |
1 | ||
| 36216-28020 |
CM8#,KM8# |
1 | ||
| 36218C - PLUG, TRANSFER INPUT SHAFT | ||||
| 36218-28030 |
CM8#,KM8# NO.1 |
1 | ||
| 36218-28040 |
CM8# NO.2 |
1 | ||
| 36218-28040 |
CM8#,KM8# NO.2 |
1 | ||
| 36218-28030 |
CM8# NO.1 |
1 | ||
| 36218C - PLUG, TRANSFER INPUT SHAFT | ||||
| 36218-28030 |
CM8#,KM8# NO.1 |
1 | ||
| 36218-28040 |
CM8# NO.2 |
1 | ||
| 36218-28040 |
CM8#,KM8# NO.2 |
1 | ||
| 36218-28030 |
CM8# NO.1 |
1 | ||
| 36218D - RING, O (FOR TRANSFER INPUT SHAFT PLUG) | ||||
| 96721-24028 |
CM8# |
1 | ||
| 96721-24028 |
CM8#,KM8# |
1 | ||
| 36218E - RING, HOLE SNAP (FOR TRANSFER INPUT SHAFT PLUG) | ||||
| 90521-38004 |
CM8#,KM8# |
1 | ||
| 90521-38004 |
CM8# |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-28040 |
CM8# |
1 | ||
| 36231-28040 |
CM8#,KM8# |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-31007 |
CM8#,KM8# |
1 | ||
| 90364-31007 |
CM8# |
1 | ||
| 36231L - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90520-71221 |
CM8#,KM8# 厚さ=1.65,内径=71.1 |
1 | ||
| 90520-71221 |
CM8# 厚さ=1.65,内径=71.1 |
1 | ||
| 36231M - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
CM8# |
1 | ||
| 90363-32006 |
CM8#,KM8# |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36255-28020 |
CM8#,KM8# |
1 | ||
| 36255-28020 |
CM8# |
1 | ||
| 36270D - GEAR ASSY, MANUAL TRANSFER PLANETARY | ||||
| 36270-28021 |
CM8# |
1 | ||
| 36270-28021 |
CM8#,KM8# |
1 | ||
| 36270E - RING, SHAFT SNAP (FOR MANUAL TRANSFER PLANETARY GEAR) | ||||
| 90520-48002 |
CM8#,KM8# 厚さ=1.55,ﾏｰｸ A |
1 | ||
| 90520-48006 |
CM8#,KM8# 厚さ=1.75,ﾏｰｸ E |
1 | ||
| 90520-48004 |
CM8#,KM8# 厚さ=1.65,ﾏｰｸ C |
1 | ||
| 90520-48005 |
CM8#,KM8# 厚さ=1.70,ﾏｰｸ D |
1 | ||
| 90520-48003 |
CM8#,KM8# 厚さ=1.60,ﾏｰｸ B |
1 | ||
| 90520-48003 |
CM8# 厚さ=1.60,ﾏｰｸ B |
1 | ||
| 90520-48005 |
CM8# 厚さ=1.70,ﾏｰｸ D |
1 | ||
| 90520-48004 |
CM8# 厚さ=1.65,ﾏｰｸ C |
1 | ||
| 90520-48006 |
CM8# 厚さ=1.75,ﾏｰｸ E |
1 | ||
| 90520-48002 |
CM8# 厚さ=1.55,ﾏｰｸ A |
1 | ||
| 36273B - GEAR, MANUAL TRANSFER PLANETARY RING | ||||
| 36273-28020 |
CM8#,KM8# |
1 | ||
| 36273-28020 |
CM8# |
1 | ||
| 36273C - RING, HOLE SNAP (FOR MANUAL TRANSFER PLANETARY RING GEA | ||||
| 90521-99108 |
CM8#,KM8# |
1 | ||
| 90521-99108 |
CM8# |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-28060 |
CM8#,KM8# 厚さ=1.8,ﾏｰｸ F |
1 | ||
| 36278-28030 |
CM8#,KM8# 厚さ=1.5,ﾏｰｸ C |
1 | ||
| 36278-28050 |
CM8#,KM8# 厚さ=1.7,ﾏｰｸ E |
1 | ||
| 36278-28020 |
CM8#,KM8# 厚さ=1.4,ﾏｰｸ B |
1 | ||
| 36278-28010 |
CM8# 厚さ=1.3,ﾏｰｸ A |
1 | ||
| 36278-28010 |
CM8#,KM8# 厚さ=1.3,ﾏｰｸ A |
1 | ||
| 36278-28020 |
CM8# 厚さ=1.4,ﾏｰｸ B |
1 | ||
| 36278-28030 |
CM8# 厚さ=1.5,ﾏｰｸ C |
1 | ||
| 36278-28060 |
CM8# 厚さ=1.8,ﾏｰｸ F |
1 | ||
| 36278-28040 |
CM8#,KM8# 厚さ=1.6,ﾏｰｸ D |
1 | ||
| 36278-28040 |
CM8# 厚さ=1.6,ﾏｰｸ D |
1 | ||
| 36278-28050 |
CM8# 厚さ=1.7,ﾏｰｸ E |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-40001 |
CM8#,KM8# |
1 | ||
| 90364-40001 |
CM8# |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-28032 |
CM8#,KM8# |
1 | ||
| 36292-28032 |
CM8# |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
CM8#,KM8# ﾘﾔ |
1 | ||
| 90363-28004 |
CM8# ﾘﾔ |
1 | ||
| 90363-30064 |
CM8# ﾌﾛﾝﾄ |
1 | ||
| 90363-30064 |
CM8#,KM8# ﾌﾛﾝﾄ |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
CM8#,KM8# ﾘﾔ |
1 | ||
| 90363-28004 |
CM8# ﾘﾔ |
1 | ||
| 90363-30064 |
CM8# ﾌﾛﾝﾄ |
1 | ||
| 90363-30064 |
CM8#,KM8# ﾌﾛﾝﾄ |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-28021 |
CM8#,KM8# |
1 | ||
| 36293-28021 |
CM8# |
1 | ||
| 41330 - COUPLING ASSY, CENTER DIFFERENTIAL CONTROL | ||||
| 41330-26012 |
CM8# |
1 | ||
| 41330-26012 |
CM8#,KM8# |
1 | ||
