CM85-TBSDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0408)

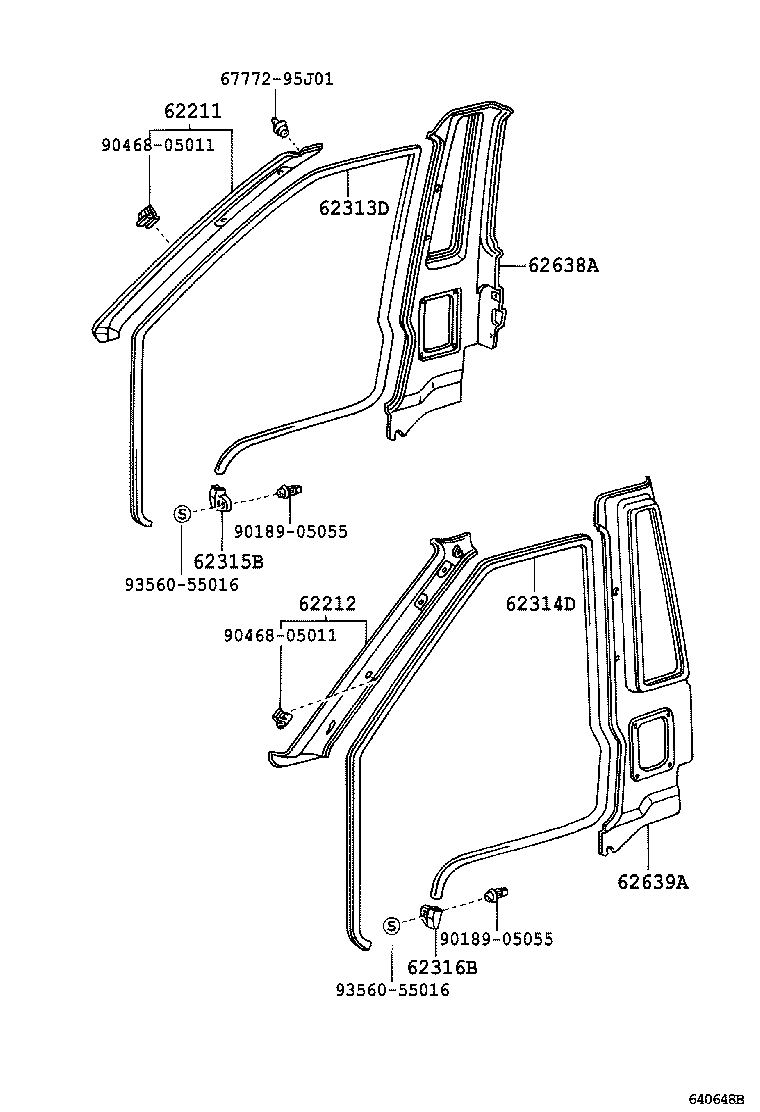

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62315B 62316B 62638A 62639A 6777295J01 9018905055 9018905055 9046805011 9046805011 9356055016 9356055016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62211-95706B1

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62211-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95707B1

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62212-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62212-27010B0

CM7#,8#,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62313-27010B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-27010B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62313-27020B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62317-95700B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62317-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62318-27010B0

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62318-95700B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-27010B2

CM85..TS;CM7#,80,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-27020B0

CM85..TS;CM7#,80,KM7#,8#

MD.CHARCOAL,TRIM1#

 1
Common parts
67772-95J01
90189-05055
90468-05011
93560-55016
