CM85-TBSDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

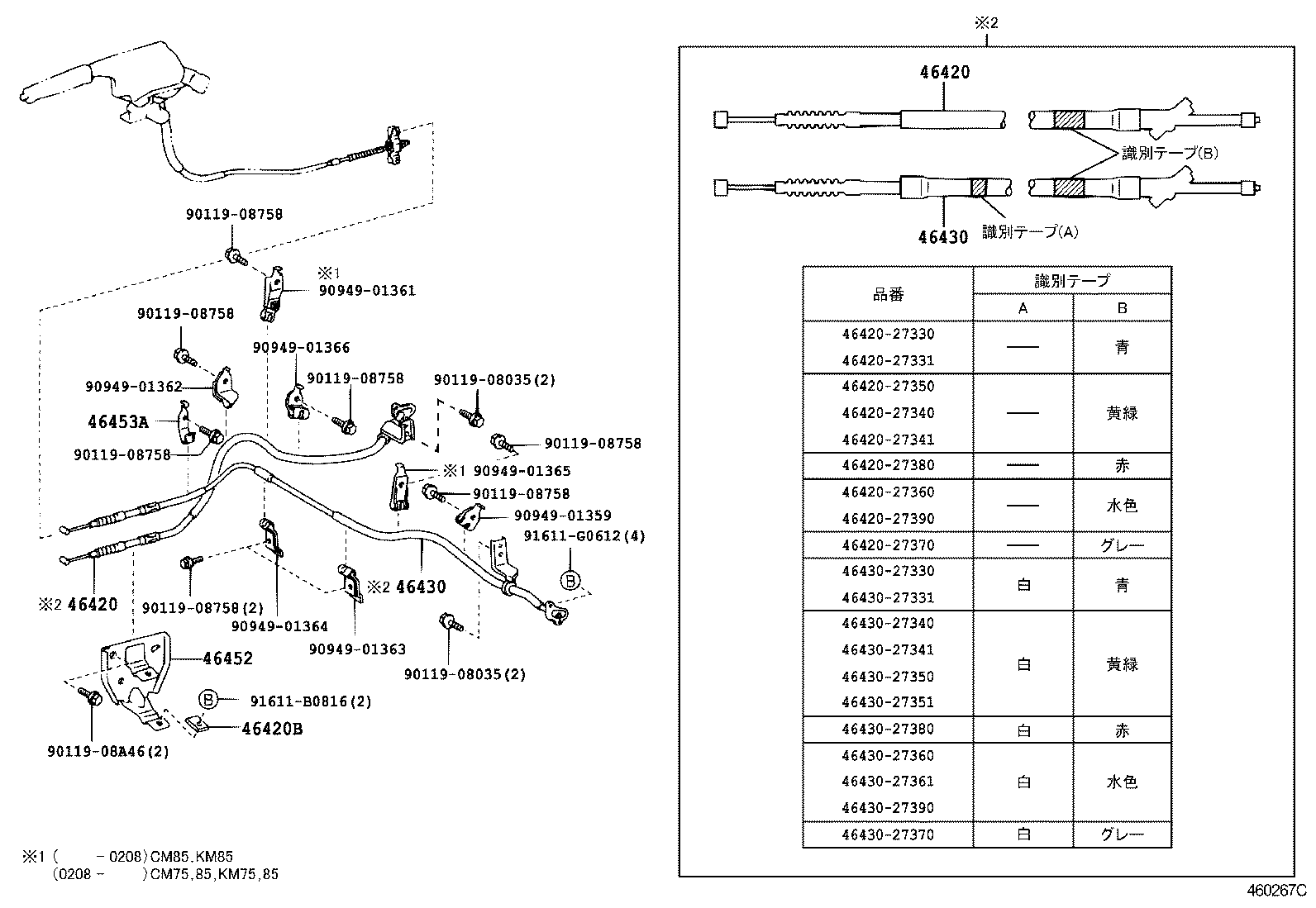

ILLUST NO. 2 OF 2(9906-0208)CM8#,KM8# ; (0208- )CM75,8#,KM75,8#..JL

Click highlighted areas on diagram

diagram 46420 46420 46420B 46430 46430 46452 46453A 9011908035 9011908035 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011908758 9011908A46 9094901359 9094901361 9094901362 9094901363 9094901364 9094901365 9094901366 91611B0816 91611G0612
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27330

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46420-27331

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27330

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46420-27331

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01167

CM7#,8#

 2
90949-01167

KM7#,8#

 2
90949-01167

CM75..CBU;CM70,8#,KM7#,8#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27330

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46430-27331

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27330

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46430-27331

CM85,KM85

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-27050

CM7#,8#,KM7#,8#

 1
46452-27050

KM7#,8#

 1
46452-27050

CM7#,8#

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-27050

CM7#,8#,KM7#,8#

 1
46453-27050

CM7#,8#

 1
46453-27050

KM7#,8#

 1
Common parts
90119-08035
90119-08758
90119-08A46
90949-01359
90949-01361
90949-01362
90949-01363
90949-01364
90949-01365
90949-01366
91611-B0816
91611-G0612

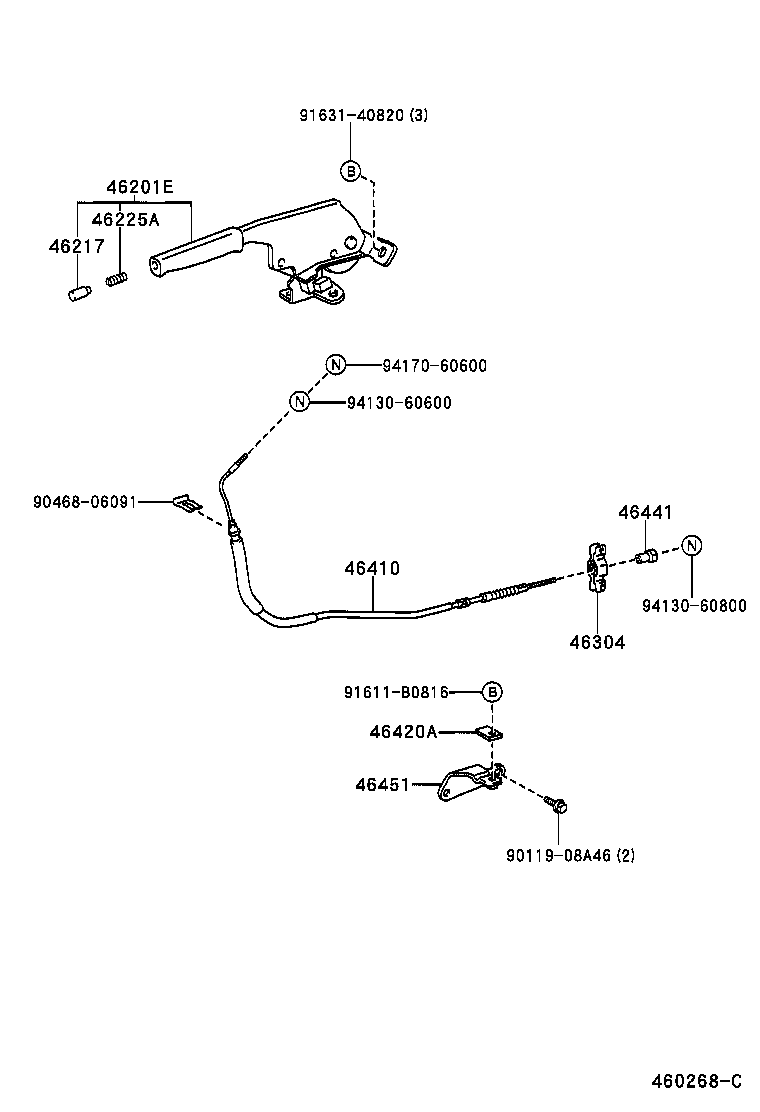

ILLUST NO. 1 OF 2(9906- )

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46304 46410 46420A 46441 46451 9011908A46 9046806091 91611B0816 9163140820 9413060600 9413060800 9417060600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-27022B1

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-12020B5

CM7#,8#,KM7#,8#

DK.CHARCOAL,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10132

CM7#,8#

 1
90501-10132

KM7#,8#

 1
90501-10132

CM7#,8#,KM7#,8#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-28010

CM7#,8#

 1
46304-28010

KM7#,8#

 1
46304-28010

CM7#,8#,KM7#,8#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27220

CM7#,8#,KM7#,8#

 1
46410-27220

KM7#,8#

 1
46410-27220

CM7#,8#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01167

CM7#,8#,KM7#,8#

 1
90949-01167

CM7#,8#

 1
90949-01167

KM7#,8#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

CM7#,8#

 1
46441-35010

CM7#,8#,KM7#,8#

 1
46441-35010

KM7#,8#

 1
46451 - BRACKET, CABLE SUPPORT
46451-27130

CM7#,8#,KM7#,8#

 1
46451-27130

CM7#,8#

 1
46451-27130

KM7#,8#

 1
Common parts
90119-08A46
90468-06091
91611-B0816
91631-40820
94130-60600
94130-60800
94170-60600
