CM85-TBSDE (1999)
Toyota Lite/Townace

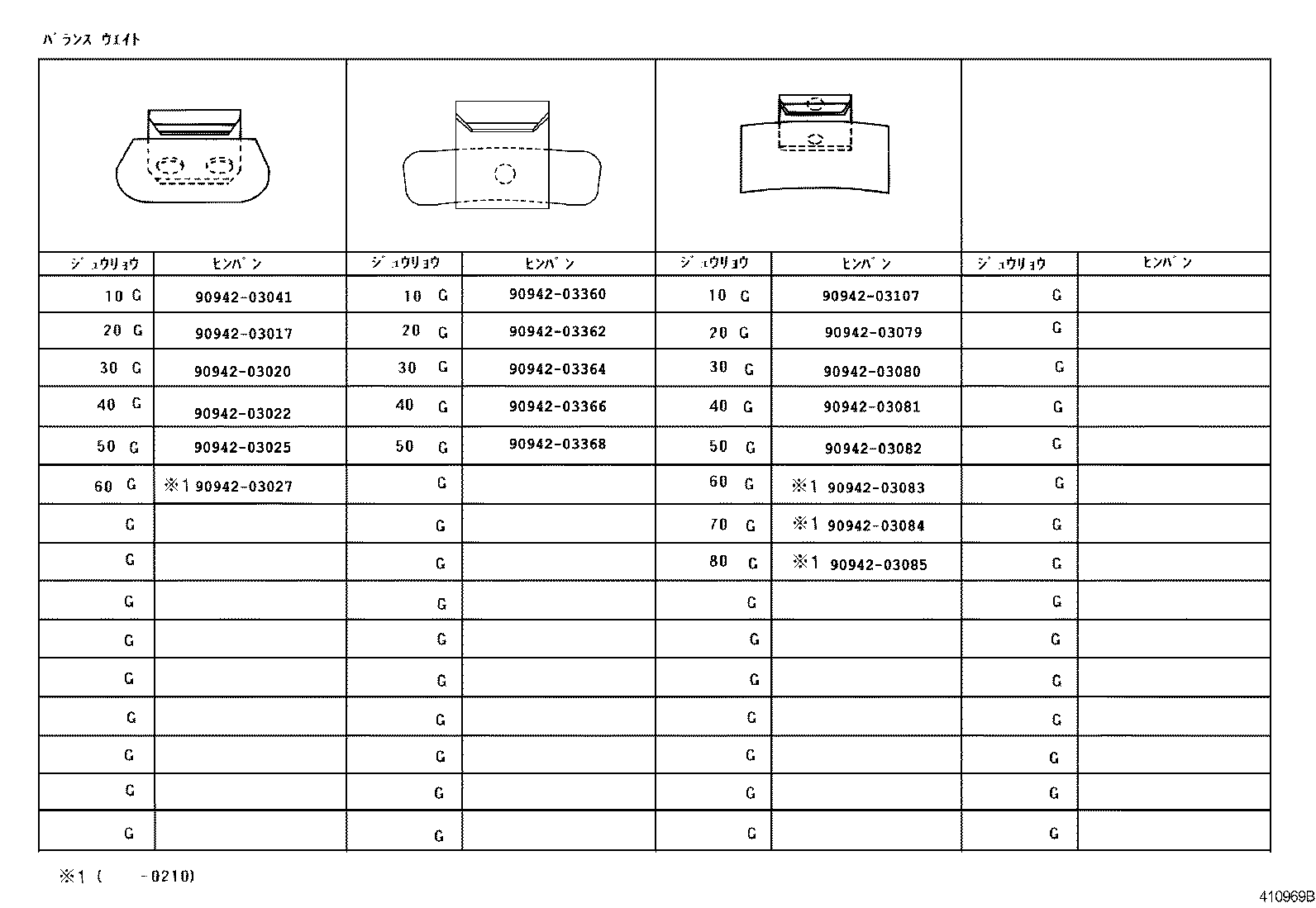

ILLUST NO. 2 OF 3(9906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03027 | ||||
| 90942-03041 | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03107 | ||||
| 90942-03360 | ||||
| 90942-03362 | ||||
| 90942-03364 | ||||
| 90942-03366 | ||||
| 90942-03368 | ||||

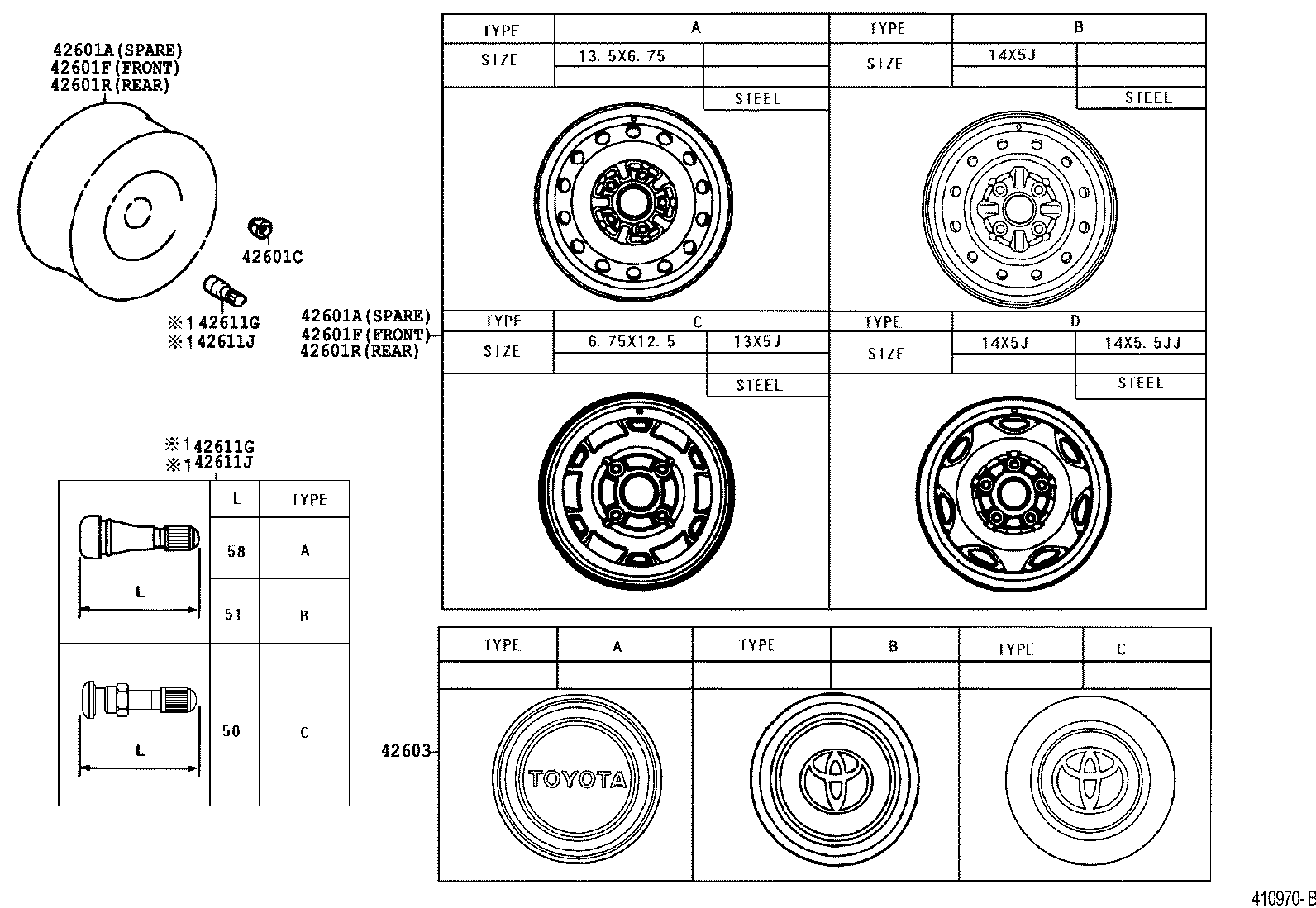

ILLUST NO. 1 OF 3(9906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-28360 |
CM8#,KM8# 14X5.5JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-28360 |
CM8#,KM8#..CBU,IV3 14X5.5JJ,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-28360 |
CM8#,KM8# 14X5.5JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42611-28360 |
CM8#,KM8#..CBU,IV3 14X5.5JJ,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01047 |
CM8#,KM8# |
20 | ||
| 90942-01047 |
CM75,8#..JL |
20 | ||
| 90942-01047 |
KM75,8#..JL |
20 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-28360 |
CM8#,KM8#..CBU,IV3 14X5.5JJ,TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 42611-28360 |
CM8#,KM8# 14X5.5JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-28360 |
CM8#,KM8#..CBU,IV3 14X5.5JJ,TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 42611-28360 |
CM8#,KM8# 14X5.5JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-28360 |
CM8#,KM8#..CBU,IV3 14X5.5JJ,TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 42611-28360 |
CM8#,KM8# 14X5.5JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-28360 |
CM8#,KM8#..CBU,IV3 14X5.5JJ,TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 42611-28360 |
CM8#,KM8# 14X5.5JJ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-43010 |
CM75,8#..JL *STE,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42603-43010 |
CM8#,KM8# *STE,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 42603-43010 |
KM75,8#..JL *STE,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05004 |
CM8#,KM8# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 90942-05004 |
CM8#,KM8#..CBU,IV3 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05004 |
CM8#,KM8# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 90942-05004 |
CM8#,KM8#..CBU,IV3 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05004 |
CM8#,KM8#..CBU,IV3 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05004 |
CM8#,KM8#..CBU,IV3 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
ILLUST NO. 3 OF 3(9906- )
| Part # | Description | Qty | Price |
|---|
