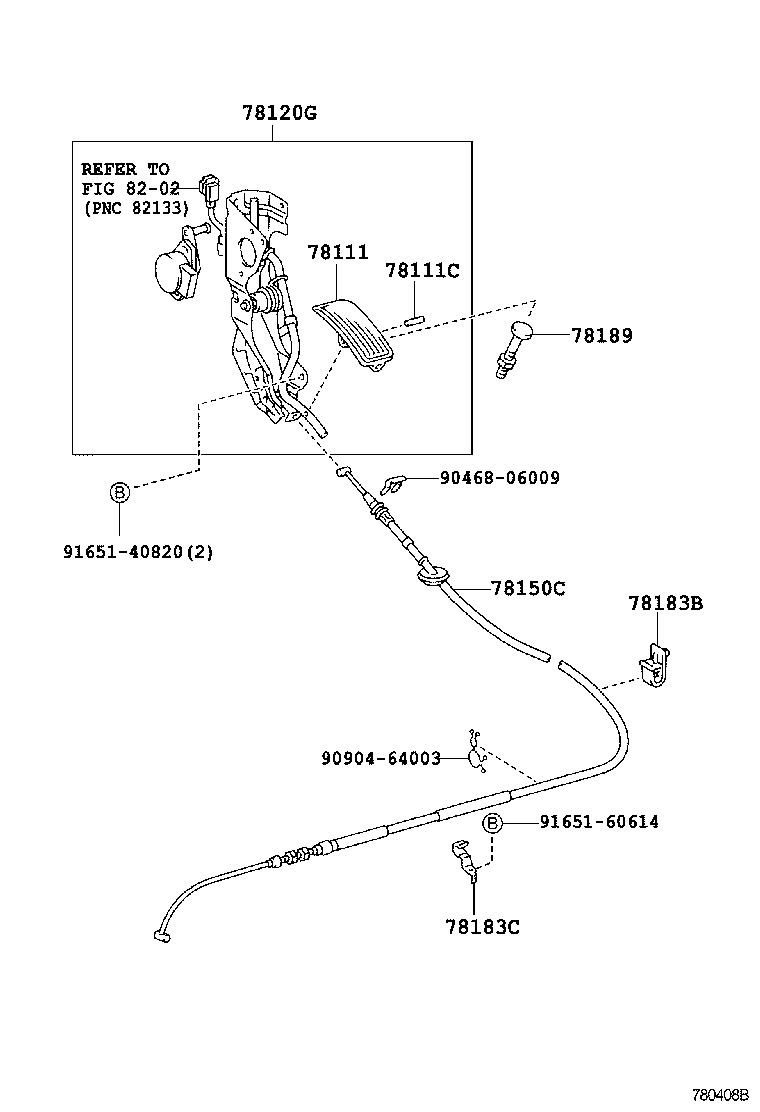

CM85-TBQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)CM7#,8#

Click highlighted areas on diagram

diagram 78111 78111C 78120G 78150C 78183B 78183C 78189 8202 9046806009 9090464003 9165140820 9165160614
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-16010

CM7#,8#

 1
78111-16010

CM7#,8#,KM7#,8#

 1
78111-16010

KM7#,8#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04015

KM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04015

KM7#,8#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78010-27020

CM7#,8#..5H

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-27011

KM7#,8#..5H

 1
78150-27060

KM7#,8#..5H

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

KM7#,8#

 2
78183-27050

KM7#,8#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-27030

KM7#,8#

 1
78183-27030

KM7#,8#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-27030

CM7#,8#

 1
78208-27020

KM7#,8#

 1
Common parts
90468-06009
90904-64003
91651-40820
91651-60614
Linked diagrams
8202

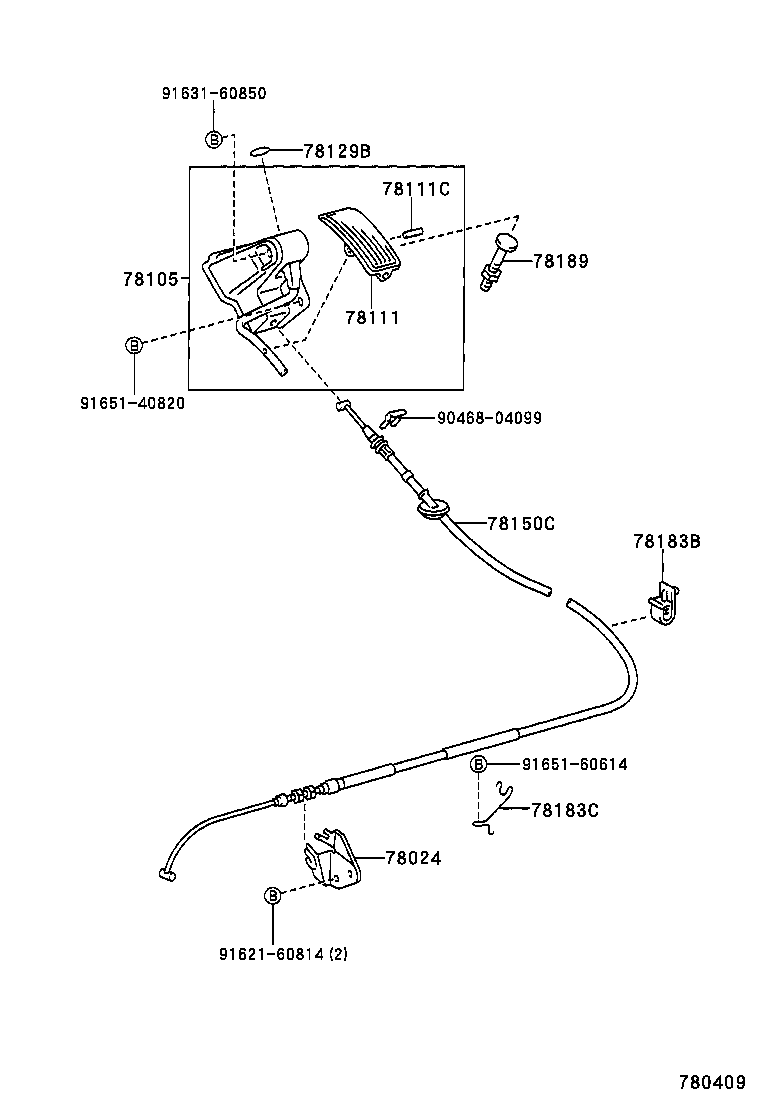

(9906-0208)KM7#,8#

Click highlighted areas on diagram

diagram 78024 78105 78111 78111C 78129B 78150C 78183B 78183C 78189 9046804099 9162160814 9163160850 9165140820 9165160614
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-27010

KM7#,8#

 1
78024-27010

KM7#,8#

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-27010

KM7#,8#..5H

 1
78105-27010

KM7#,8#..5H

 1
78111 - PEDAL, ACCELERATOR
78111-16010

CM7#,8#

 1
78111-16010

CM7#,8#,KM7#,8#

 1
78111-16010

KM7#,8#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04015

KM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04015

KM7#,8#

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00

KM7#,8#

 1
78129-95J00

KM7#,8#

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-27011

KM7#,8#..5H

 1
78150-27060

KM7#,8#..5H

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

KM7#,8#

 2
78183-27050

KM7#,8#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-27030

KM7#,8#

 1
78183-27030

KM7#,8#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-27030

CM7#,8#

 1
78208-27020

KM7#,8#

 1
Common parts
90468-04099
91621-60814
91631-60850
91651-40820
91651-60614

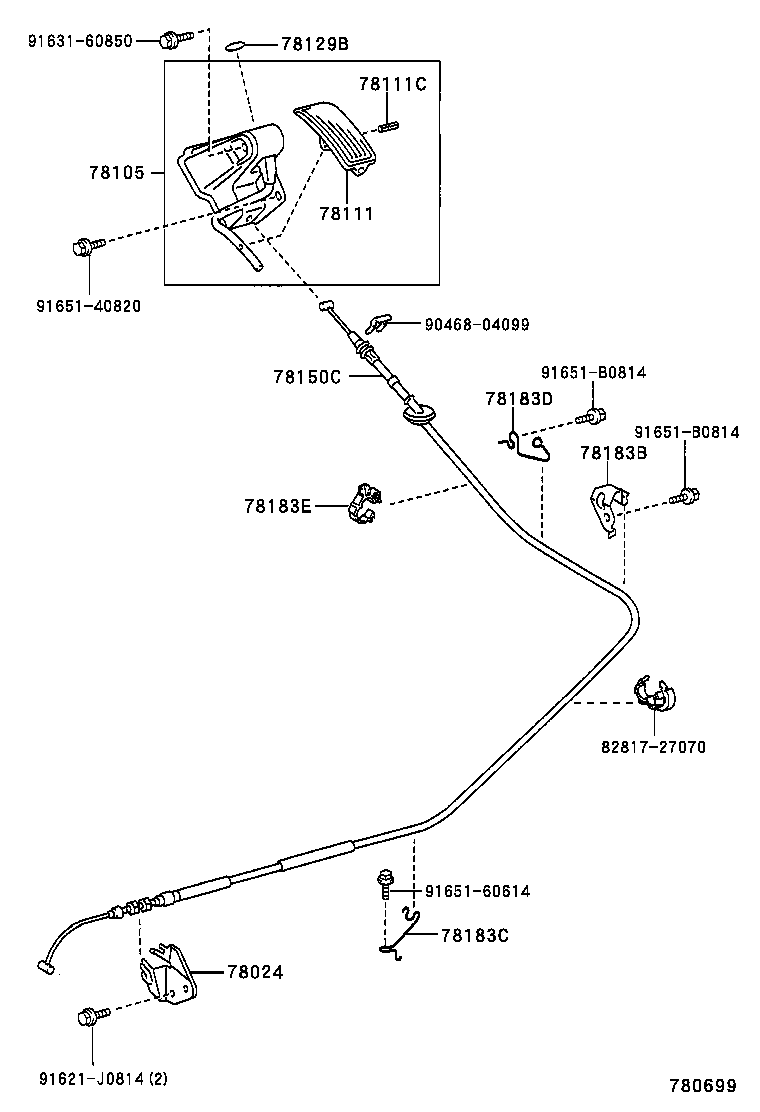

(0208- )KM7#,8#

Click highlighted areas on diagram

diagram 78024 78105 78111 78111C 78129B 78150C 78183B 78183C 78183D 78183E 8281727070 9046804099 91621J0814 9163160850 9165140820 9165160614 91651B0814 91651B0814
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-27010

KM7#,8#

 1
78024-27010

KM7#,8#

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-27010

KM7#,8#..5H

 1
78105-27010

KM7#,8#..5H

 1
78111 - PEDAL, ACCELERATOR
78111-16010

CM7#,8#

 1
78111-16010

CM7#,8#,KM7#,8#

 1
78111-16010

KM7#,8#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04015

KM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04015

KM7#,8#

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00

KM7#,8#

 1
78129-95J00

KM7#,8#

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-27011

KM7#,8#..5H

 1
78150-27060

KM7#,8#..5H

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

KM7#,8#

 2
78183-27050

KM7#,8#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-27030

KM7#,8#

 1
78183-27030

KM7#,8#

 1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78183-27060

KM7#,8#

 1
78183E - CLAMP, ACCELERATOR CONTROL CABLE
78183-28230

KM7#,8#

 1
Common parts
82817-27070
90468-04099
91621-J0814
91631-60850
91651-40820
91651-60614
91651-B0814

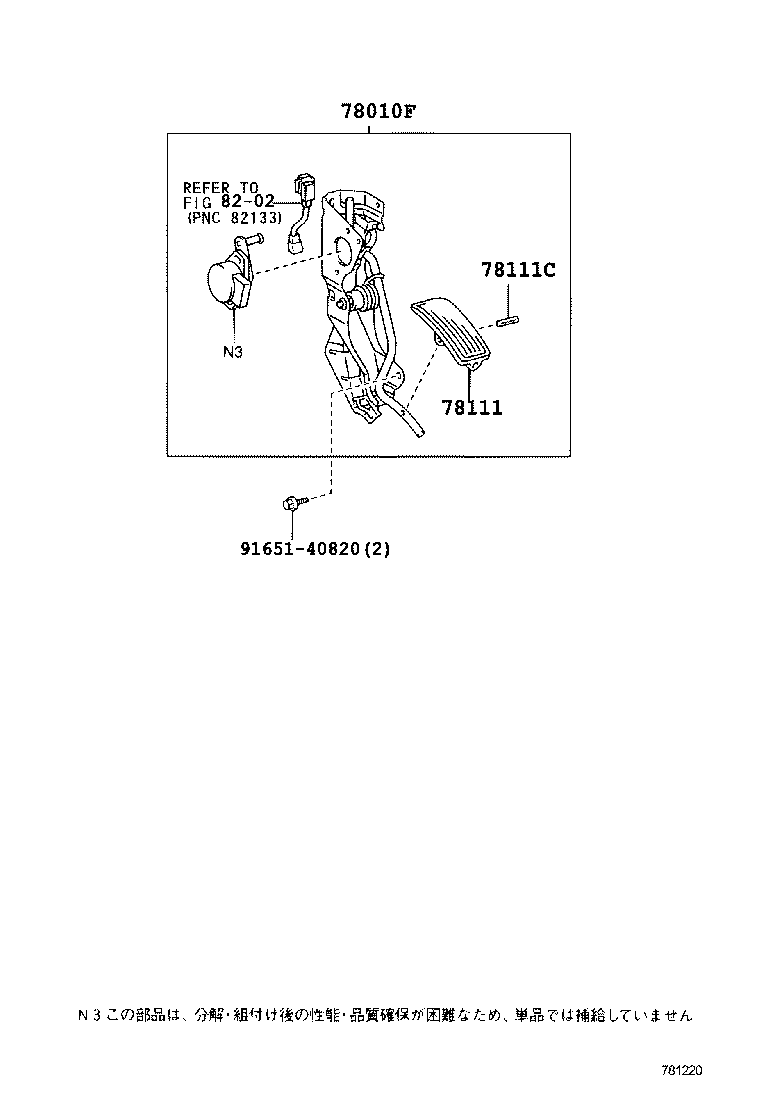

(0208- )CM7#,8#..5H

Click highlighted areas on diagram

diagram 78010F 78111 78111C 8202 9165140820
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-27040

CM7#,8#..5H

 1
78111 - PEDAL, ACCELERATOR
78111-16010

CM7#,8#

 1
78111-16010

CM7#,8#,KM7#,8#

 1
78111-16010

KM7#,8#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04015

KM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04034

CM7#,8#

 1
90254-04015

KM7#,8#

 1
Common parts
91651-40820
Linked diagrams
8202
