CM85-TBQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

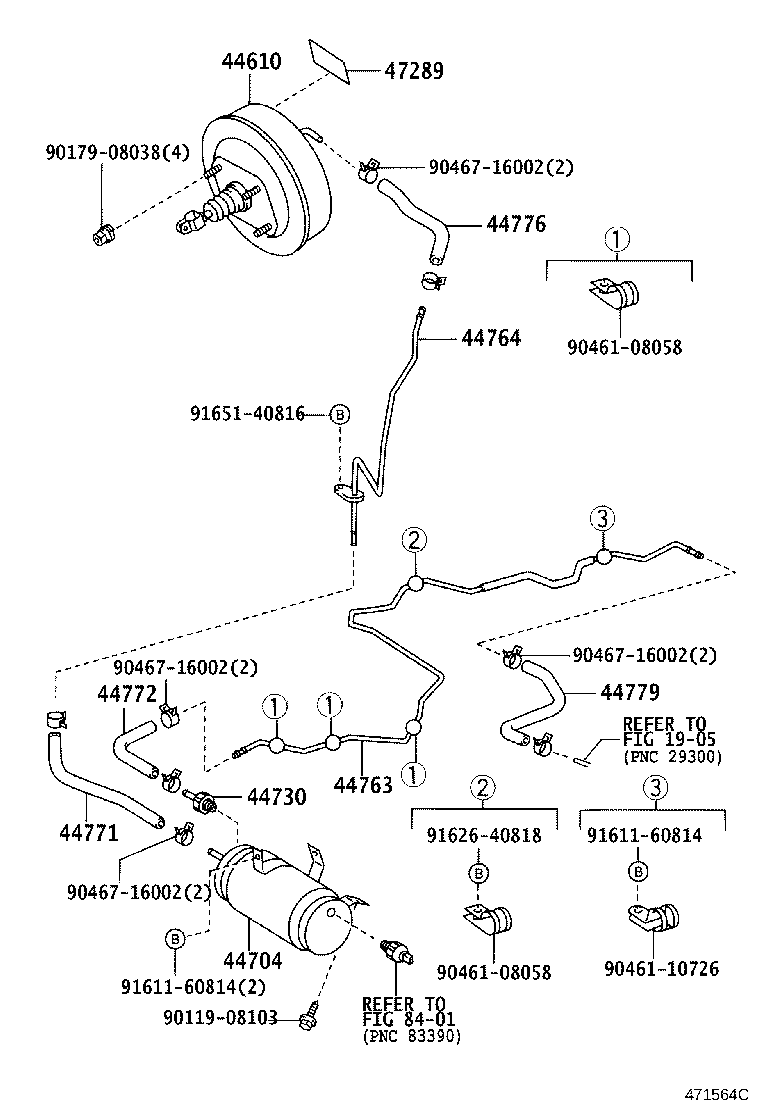

(9906-0208)CM7#,8#

Click highlighted areas on diagram

diagram 1905 44610 44704 44730 44763 44764 44771 44772 44776 44779 47289 8401 9011908103 9017908038 9046108058 9046108058 9046110726 9046716002 9046716002 9046716002 9046716002 9161160814 9161160814 9162640818 9165140816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-27400

CM7#,8#

 1
44610-27400

CM7#,8#,KM7#,8#

 1
44610-27400

KM7#,8#

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-27070

CM7#,8#

 1
44704-27080

CM7#,8#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44763 - TUBE, BOOSTER VACUUM
44763-27020

CM7#,8#

 1
44763-27030

CM7#,8#

 1
44764 - TUBE, BOOSTER VACUUM
44764-27090

CM7#,8#

 1
44764-27080

CM7#,8#,KM7#,8#

 1
44764-27090

KM7#,8#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27100

CM7#,8#

 1
44771-27050

KM7#,8#

 1
44771-27120

CM7#,8#

 1
44771-27110

KM7#,8#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27120

CM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-27130

CM7#,8#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27060

CM7#,8#

 1
44776-27060

CM7#,8#,KM7#,8#

 1
44776-27060

KM7#,8#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-27010

CM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27010

CM7#,8#

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-27010

CM7#,8#

 1
47289-27010

CM7#,8#

 1
Common parts
90119-08103
90179-08038
90461-08058
90461-10726
90467-16002
91611-60814
91626-40818
91651-40816
Linked diagrams
1905
8401

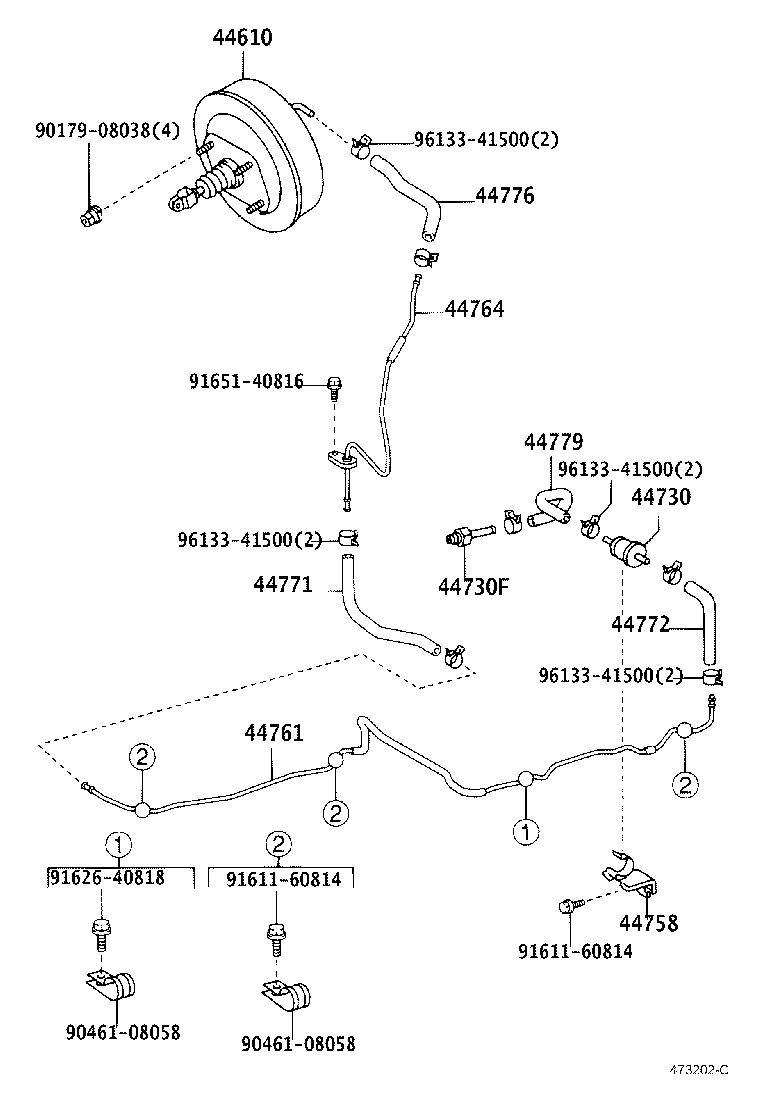

(9906-0208)KM7#,8#

Click highlighted areas on diagram

diagram 44610 44730 44730F 44758 44761 44764 44771 44772 44776 44779 9017908038 9046108058 9046108058 9046716002 9046716002 9046716002 9046716002 9161160814 9161160814 9165140816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-27400

CM7#,8#

 1
44610-27400

CM7#,8#,KM7#,8#

 1
44610-27400

KM7#,8#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

KM7#,8#

 1
90404-51319

KM7#,8#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-27100

KM7#,8#

 1
44758-27100

KM7#,8#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27170

KM7#,8#

 1
44761-27180

KM7#,8#

 1
44764 - TUBE, BOOSTER VACUUM
44764-27090

CM7#,8#

 1
44764-27080

CM7#,8#,KM7#,8#

 1
44764-27090

KM7#,8#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27100

CM7#,8#

 1
44771-27050

KM7#,8#

 1
44771-27120

CM7#,8#

 1
44771-27110

KM7#,8#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27120

CM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-27130

CM7#,8#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27060

CM7#,8#

 1
44776-27060

CM7#,8#,KM7#,8#

 1
44776-27060

KM7#,8#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-27010

CM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27010

CM7#,8#

 1
Common parts
90179-08038
90461-08058
90467-16002
91611-60814
91651-40816

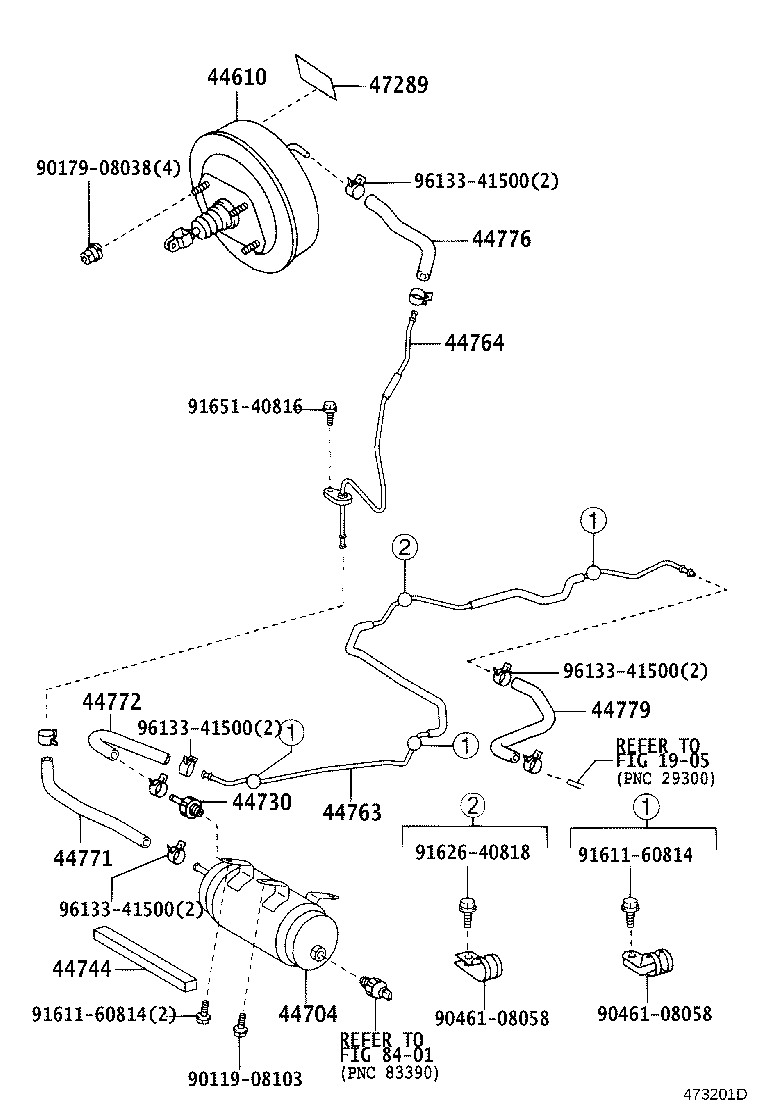

(0208- )CM7#,8#

Click highlighted areas on diagram

diagram 1905 44610 44704 44730 44744 44763 44764 44771 44772 44776 44779 47289 8401 9011908103 9017908038 9046108058 9046108058 9161160814 9161160814 9162640818 9165140816 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-27400

CM7#,8#

 1
44610-27400

CM7#,8#,KM7#,8#

 1
44610-27400

KM7#,8#

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-27070

CM7#,8#

 1
44704-27080

CM7#,8#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44744 - PROTECTOR, VACUUM TANK
44744-27010

CM7#,8#

 1
44763 - TUBE, BOOSTER VACUUM
44763-27020

CM7#,8#

 1
44763-27030

CM7#,8#

 1
44764 - TUBE, BOOSTER VACUUM
44764-27090

CM7#,8#

 1
44764-27080

CM7#,8#,KM7#,8#

 1
44764-27090

KM7#,8#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27100

CM7#,8#

 1
44771-27050

KM7#,8#

 1
44771-27120

CM7#,8#

 1
44771-27110

KM7#,8#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27120

CM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-27130

CM7#,8#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27060

CM7#,8#

 1
44776-27060

CM7#,8#,KM7#,8#

 1
44776-27060

KM7#,8#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-27010

CM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27010

CM7#,8#

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-27010

CM7#,8#

 1
47289-27010

CM7#,8#

 1
Common parts
90119-08103
90179-08038
90461-08058
91611-60814
91626-40818
91651-40816
96133-41500
Linked diagrams
1905
8401

(0208- )KM7#,8#

Click highlighted areas on diagram

diagram 44610 44730 44730F 44758 44761 44764 44771 44772 44776 44779 9017908038 9046108058 9046108058 9161160814 9161160814 9162640818 9165140816 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-27400

CM7#,8#

 1
44610-27400

CM7#,8#,KM7#,8#

 1
44610-27400

KM7#,8#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44730-24020

KM7#,8#

 1
44730-60050

CM7#,8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

KM7#,8#

 1
90404-51319

KM7#,8#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-27100

KM7#,8#

 1
44758-27100

KM7#,8#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27170

KM7#,8#

 1
44761-27180

KM7#,8#

 1
44764 - TUBE, BOOSTER VACUUM
44764-27090

CM7#,8#

 1
44764-27080

CM7#,8#,KM7#,8#

 1
44764-27090

KM7#,8#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27100

CM7#,8#

 1
44771-27050

KM7#,8#

 1
44771-27120

CM7#,8#

 1
44771-27110

KM7#,8#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27120

CM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-38030

KM7#,8#

 1
44772-27130

CM7#,8#

 1
44776 - HOSE, BRAKE BOOSTER
44776-27060

CM7#,8#

 1
44776-27060

CM7#,8#,KM7#,8#

 1
44776-27060

KM7#,8#

 1
44779 - HOSE, UNION TO CONNECTOR
44779-27010

CM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27020

KM7#,8#

 1
44779-27010

CM7#,8#

 1
Common parts
90179-08038
90461-08058
91611-60814
91626-40818
91651-40816
96133-41500
