CM85-TBQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

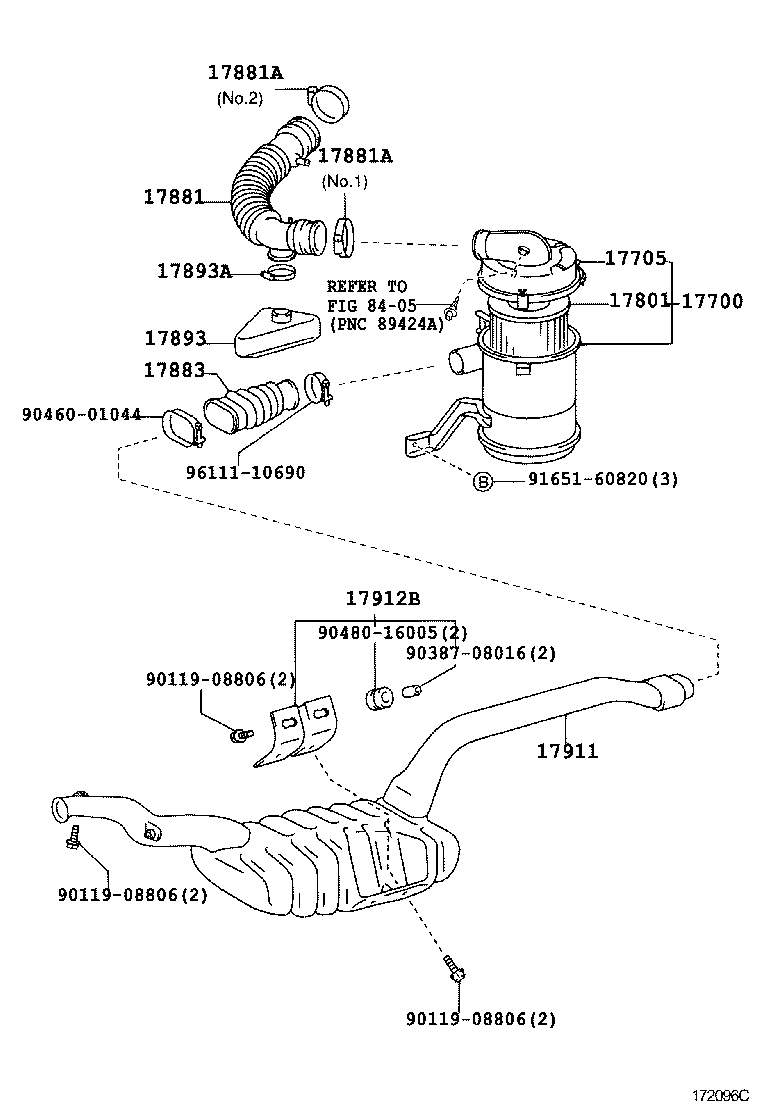

(9906-0208)3CE

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17881A 17883 17893 17893A 17911 17912B 8405 9011908806 9011908806 9011908806 9038708016 9046001044 9048016005 9165160820 9611110690
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64460

3CE..CM7#,8#

 1
17700-64460

3CE..CM7#,8#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64320

3CE..CM7#,8#

 1
17705-64320

3CE..CM7#,8#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64080

3CE..CM7#,8#

 1
17801-64080

3CE..CM7#,8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64391

3CE..CM7#,8#

 1
17881-64420

3CE..CM7#,8#

 1
17881-64390

3CE..CM7#,8#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73011

3CE..CM7#,8#

NO.2

 1
90460-77003

3CE..CM7#,8#

NO.1

 1
90460-73003

3CE..CM7#,8#

NO.2

 1
90460-77002

3CE..CM7#,8#

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73011

3CE..CM7#,8#

NO.2

 1
90460-77003

3CE..CM7#,8#

NO.1

 1
90460-73003

3CE..CM7#,8#

NO.2

 1
90460-77002

3CE..CM7#,8#

NO.1

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-13020

3CE..CM7#,8#

 1
17883-13020

3CE..CM7#,8#

 1
17893 - RESONATOR, INTAKE AIR
17893-64070

3CE..CM7#,8#

 1
17893-64090

3CE..CM7#,8#

 1
17893A - CLAMP, HOSE
90460-45001

3CE..CM7#,8#

 1
90460-45001

3CE..CM7#,8#

 1
90460-40001

3CE..CM7#,8#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-27010

3CE..CM7#,8#

 1
52810-27020

3CE..CM7#,8#

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52854-27010

3CE..CM7#,8#

 1
52854-27020

3CE..CM7#,8#

 1
Common parts
90119-08806
90387-08016
90460-01044
90480-16005
91651-60820
96111-10690
Linked diagrams
8405

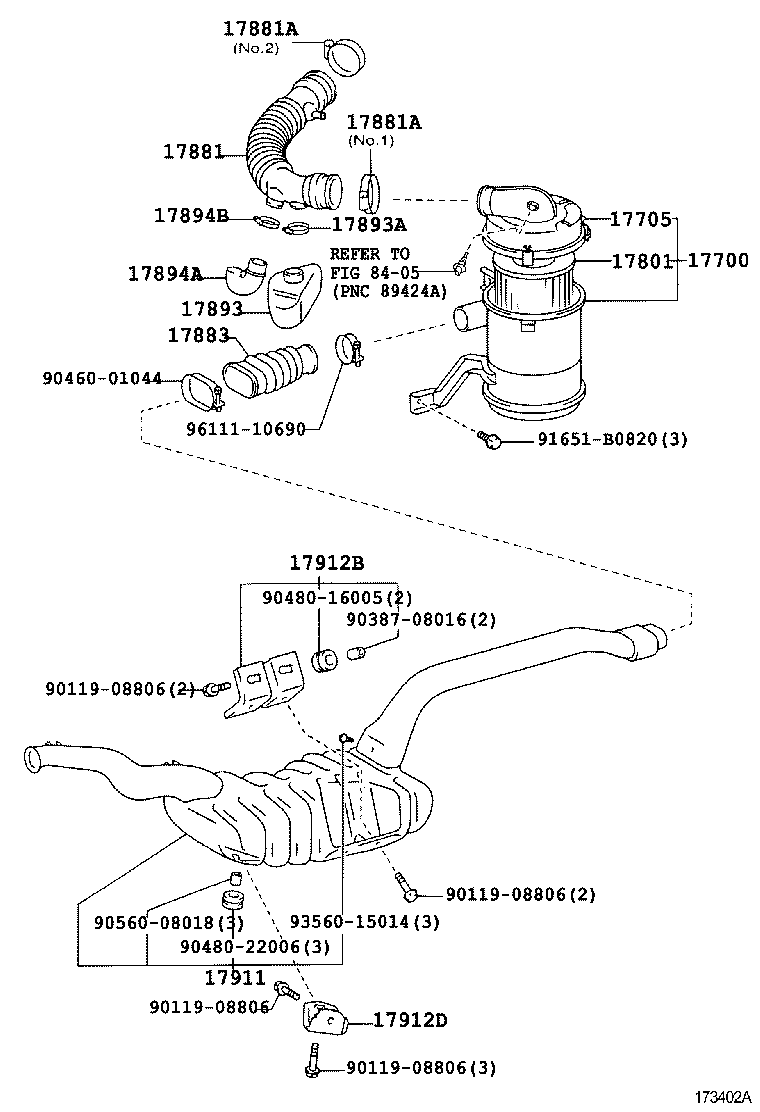

(0208- )3CE

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17881A 17883 17893 17893A 17894A 17894B 17911 17912B 17912D 8405 9011908806 9011908806 9011908806 9011908806 9038708016 9046001044 9048016005 9048022006 9056008018 91651B0820 9356015014 9611110690
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64460

3CE..CM7#,8#

 1
17700-64460

3CE..CM7#,8#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64320

3CE..CM7#,8#

 1
17705-64320

3CE..CM7#,8#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64080

3CE..CM7#,8#

 1
17801-64080

3CE..CM7#,8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64391

3CE..CM7#,8#

 1
17881-64420

3CE..CM7#,8#

 1
17881-64390

3CE..CM7#,8#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73011

3CE..CM7#,8#

NO.2

 1
90460-77003

3CE..CM7#,8#

NO.1

 1
90460-73003

3CE..CM7#,8#

NO.2

 1
90460-77002

3CE..CM7#,8#

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-73011

3CE..CM7#,8#

NO.2

 1
90460-77003

3CE..CM7#,8#

NO.1

 1
90460-73003

3CE..CM7#,8#

NO.2

 1
90460-77002

3CE..CM7#,8#

NO.1

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-13020

3CE..CM7#,8#

 1
17883-13020

3CE..CM7#,8#

 1
17893 - RESONATOR, INTAKE AIR
17893-64070

3CE..CM7#,8#

 1
17893-64090

3CE..CM7#,8#

 1
17893A - CLAMP, HOSE
90460-45001

3CE..CM7#,8#

 1
90460-45001

3CE..CM7#,8#

 1
90460-40001

3CE..CM7#,8#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64090

3CE..CM7#,8#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
90460-45001

3CE..CM7#,8#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-27010

3CE..CM7#,8#

 1
52810-27020

3CE..CM7#,8#

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52854-27010

3CE..CM7#,8#

 1
52854-27020

3CE..CM7#,8#

 1
17912D - BRACKET, COOL AIR INTAKE DUCT, NO.3
52853-27010

3CE..CM7#,8#

 1
Common parts
90119-08806
90387-08016
90460-01044
90480-16005
90480-22006
90560-08018
91651-B0820
93560-15014
96111-10690
Linked diagrams
8405
