CM85-TBQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )CM7#,8#

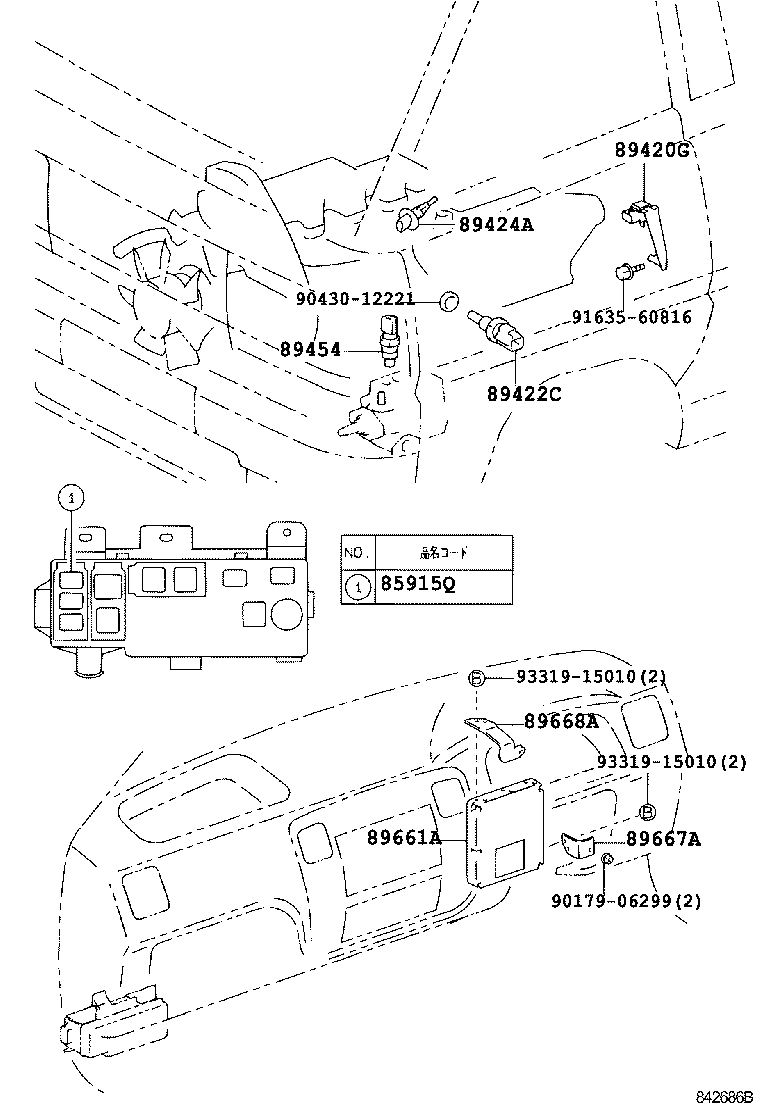

Click highlighted areas on diagram

diagram 85915Q 89420G 89422C 89424A 89454 89661A 89667A 89668A 9017906299 9043012221 9163560816 9331915010 9331915010
Part # Description Qty Price
85915Q - RELAY, COMPUTER (FOR DIESEL)
90987-02012

CM7#,8#

 1
90987-02012

CM7#,8#

 1
89420G - SENSOR ASSY, TURBO PRESSURE
89420-27030

CM7#,8#

 1
89420-27030

CM7#,8#

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

CM7#,8#

 1
89422-35010

CM7#,8#

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-12010

CM7#,8#

 1
89424-12010

CM7#,8#

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

CM7#,8#

 1
89454-60010

CM7#,8#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-27010

CM7#,8#..5H

DENSO

 1
89661-27060

CM7#,8#..5H

DENSO

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-27030

CM7#,8#

 1
89667-27030

CM7#,8#

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-27030

CM7#,8#

 1
89668-27030

CM7#,8#

 1
Common parts
90179-06299
90430-12221
91635-60816
93319-15010
