CM75-TWQDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2002
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

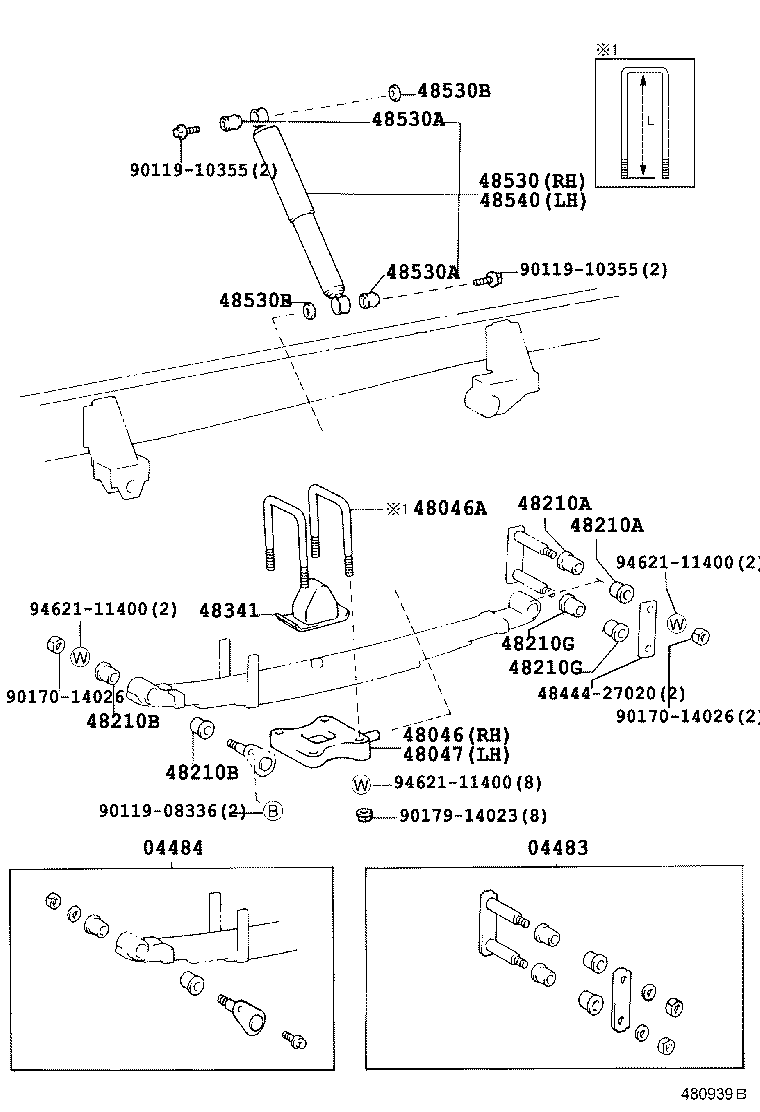

ILLUST NO. 1 OF 3(9906- )

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48341 4844427020 48530 48530A 48530A 48530B 48530B 48540 9011908336 9011910355 9011910355 9017014026 9017014026 9017914023 9462111400 9462111400 9462111400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-27011

CM7#,8#,KM7#,8#

 2
04484 - PIN KIT, REAR SPRING
04484-26030

KM70..JL,SJL;CM7#,8#,KM75,8#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-27160

CM7#,KM7#

ｱﾘ(ABS)

 1
48046-27150

CM7#,KM7#

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14065

CM7#,KM75;KM70..JL,T1;KM70..TB,TJ;KM70..SJL..TS..3SO

長さ=160

 4
90117-14044

KM70..T1;CM75,KM75..SJL

長さ=165

 4
90117-14062

CM7#,KM7#..JL,SJL,SJLC

長さ=145

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-27120

CM7#,KM7#

 1
48047-27130

CM7#,KM7#

ｱﾘ(ABS)

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

CM7#,8#,KM7#,8#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

CM7#,8#,KM7#,8#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

KM70..JL,SJL;CM7#,8#,KM75,8#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

KM70..JL,SJL;CM7#,8#,KM75,8#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

CM7#,8#,KM7#,8#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

CM7#,8#,KM7#,8#

 4
48341 - BUMPER, REAR SPRING
48341-27101

CM7#,80,KM7#,80..SJL,SJLC,T1

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80628

CM7#,KM7#..SJL,SJLC

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

CM7#,8#,KM7#,8#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

CM7#,8#,KM7#,8#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

CM7#,8#,KM7#,8#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

CM7#,8#,KM7#,8#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80628

CM7#,KM7#..SJL,SJLC

 1
Common parts
48444-27020
90119-08336
90119-10355
90170-14026
90179-14023
94621-11400

ILLUST NO. 2 OF 3(9906-0208)CM7#,KM75 ; (9906-0208)KM70..JL,T1 ;(9906-0208)KM70..SJL..3SO

Click highlighted areas on diagram

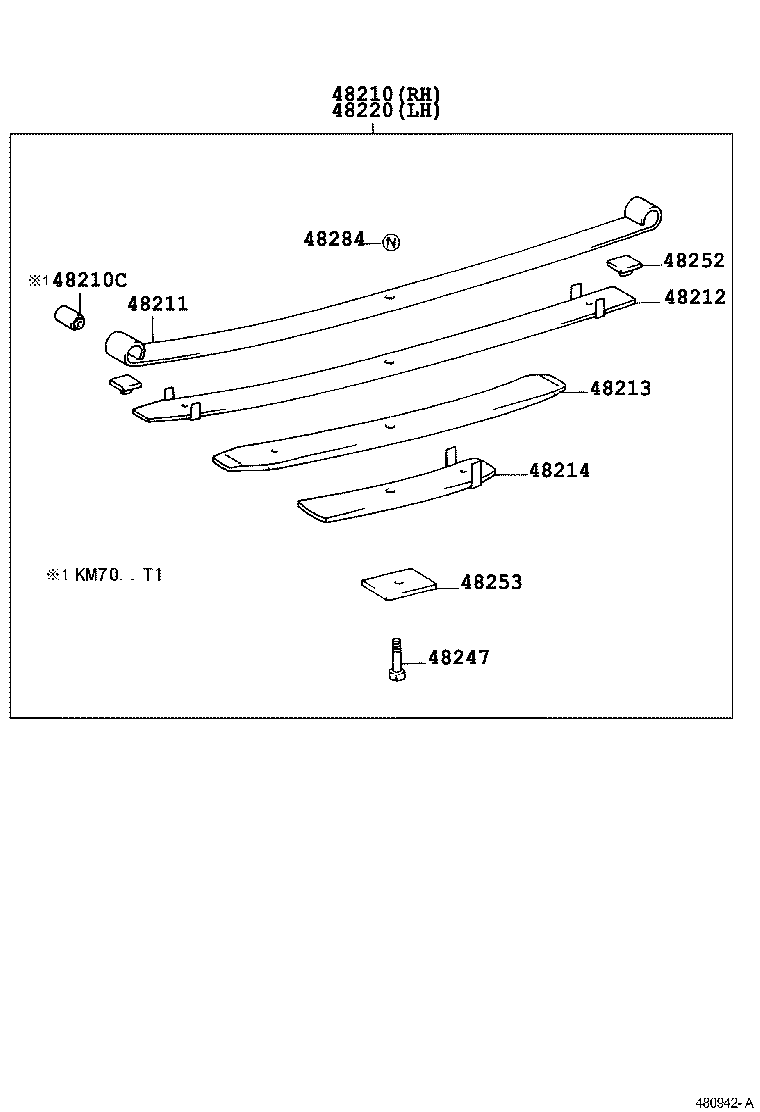

4-LEAF,TYPE A

diagram 48210 48210C 48211 48212 48213 48214 48220 48247 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48211-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212 - LEAF, REAR SPRING, NO.2
48212-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48202-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48204-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48202-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48214 - LEAF, REAR SPRING, NO.4
48203-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48203-27532

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48220 - SPRING ASSY, REAR LH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-25020

CM85..TS;CM75,KM75,85..JL,SJL;CM80,KM80..TS..3SO..CBU

5-LEAF(TYPE A,B)

 2
48247-36060

CM7#,80,KM7#,80..3SO

4-LEAF(TYPE A,C)

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM75,KM75..SJL

5-LEAF(TYPE A)

 8
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

CM75..CBU;CM70,8#,KM7#,8#

 2

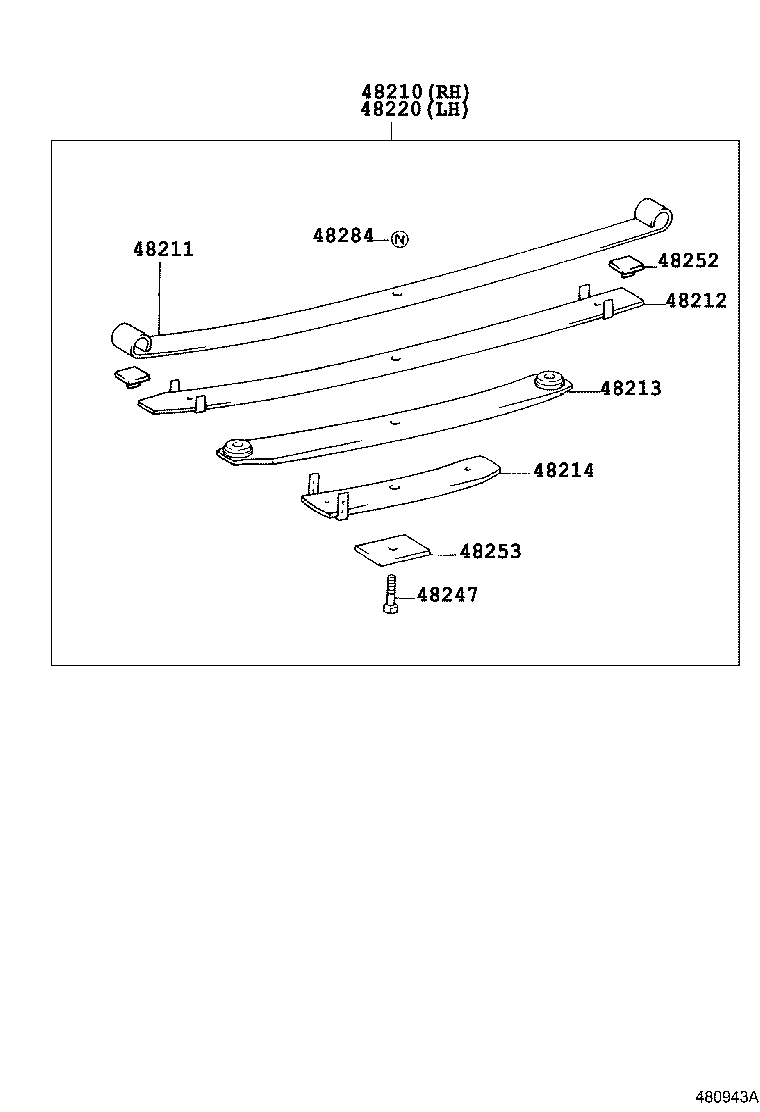

ILLUST NO. 2 OF 3(9906-0208)CM85 ; (9906-0208)CM80,KM8#..TS..3SO; (0208-0408)CM70,KM70..JL ; (0408-

Click highlighted areas on diagram

4-LEAF,TYPE B

diagram 48210 48211 48212 48213 48214 48220 48247 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48211-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212 - LEAF, REAR SPRING, NO.2
48212-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48202-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48204-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48202-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48214 - LEAF, REAR SPRING, NO.4
48203-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48203-27532

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48220 - SPRING ASSY, REAR LH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-25020

CM85..TS;CM75,KM75,85..JL,SJL;CM80,KM80..TS..3SO..CBU

5-LEAF(TYPE A,B)

 2
48247-36060

CM7#,80,KM7#,80..3SO

4-LEAF(TYPE A,C)

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM75,KM75..SJL

5-LEAF(TYPE A)

 8
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

CM75..CBU;CM70,8#,KM7#,8#

 2

ILLUST NO. 2 OF 3(9906-0408)CM75,KM75..SJL ; (0408- )KM75..3SO

Click highlighted areas on diagram

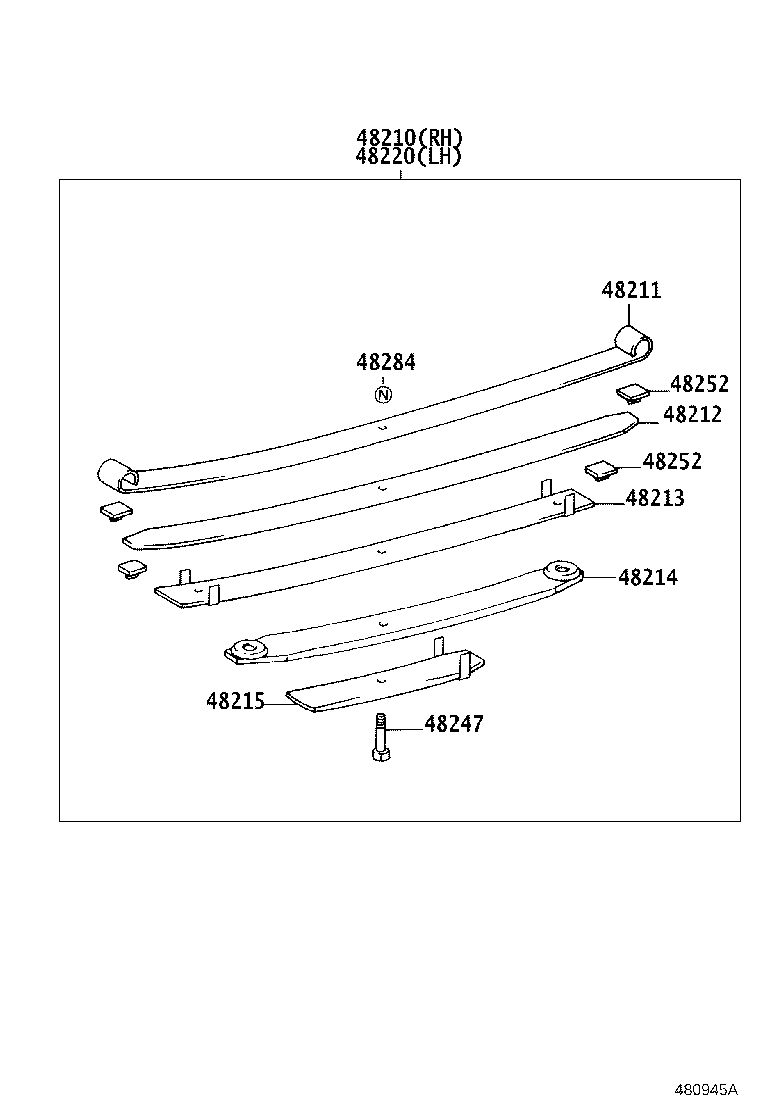

5-LEAF,TYPE A

diagram 48210 48211 48212 48213 48214 48215 48220 48247 48252 48252 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48211-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212 - LEAF, REAR SPRING, NO.2
48212-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48202-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48204-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48202-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48214 - LEAF, REAR SPRING, NO.4
48203-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48203-27532

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48215 - LEAF, REAR SPRING, NO.5
48204-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48220 - SPRING ASSY, REAR LH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-25020

CM85..TS;CM75,KM75,85..JL,SJL;CM80,KM80..TS..3SO..CBU

5-LEAF(TYPE A,B)

 2
48247-36060

CM7#,80,KM7#,80..3SO

4-LEAF(TYPE A,C)

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM75,KM75..SJL

5-LEAF(TYPE A)

 8
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM75,KM75..SJL

5-LEAF(TYPE A)

 8
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

CM75..CBU;CM70,8#,KM7#,8#

 2

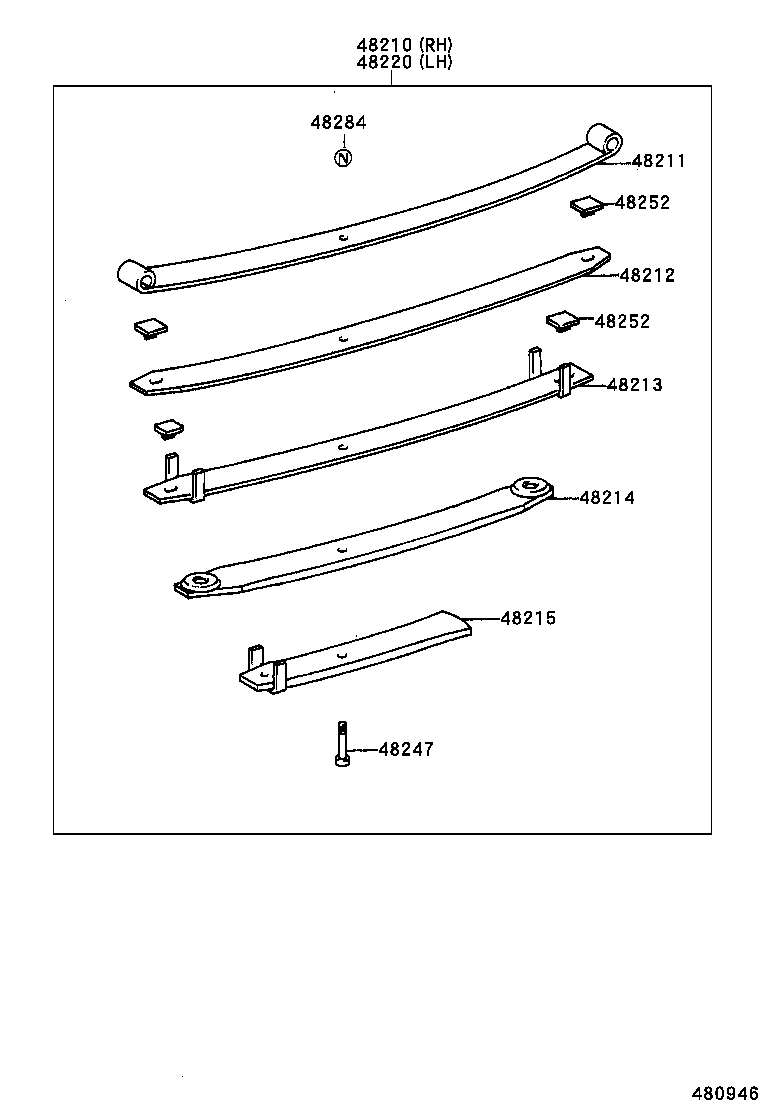

ILLUST NO. 2 OF 3(9906-0208)CM85,KM85..TS ; (9906-0208)CM80,KM80..TS..3SO..CBU ; (0208-0408)CM7#,80,

Click highlighted areas on diagram

5-LEAF,TYPE B

diagram 48210 48211 48212 48213 48214 48215 48220 48247 48252 48252 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48211-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212 - LEAF, REAR SPRING, NO.2
48212-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48202-27501

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48212-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48213 - LEAF, REAR SPRING, NO.3
48202-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48204-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48202-27533

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48214 - LEAF, REAR SPRING, NO.4
48203-27502

CM7#,KM7#..3SO

4-LEAF(TYPE A)

 2
48203-27532

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48215 - LEAF, REAR SPRING, NO.5
48204-27531

CM75,KM75..SJL

5-LEAF(TYPE A)

 2
48220 - SPRING ASSY, REAR LH
48210-27502

CM7#,KM7#..3SO

4枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-27533

CM75,KM75..SJL

5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-25020

CM85..TS;CM75,KM75,85..JL,SJL;CM80,KM80..TS..3SO..CBU

5-LEAF(TYPE A,B)

 2
48247-36060

CM7#,80,KM7#,80..3SO

4-LEAF(TYPE A,C)

 2
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM75,KM75..SJL

5-LEAF(TYPE A)

 8
48252 - SILENCER, REAR SPRING
48252-26070

CM7#,8#,KM7#,8#

 4
48252-26070

CM75,KM75..SJL

5-LEAF(TYPE A)

 8
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130

CM75..CBU;CM70,8#,KM7#,8#

 2

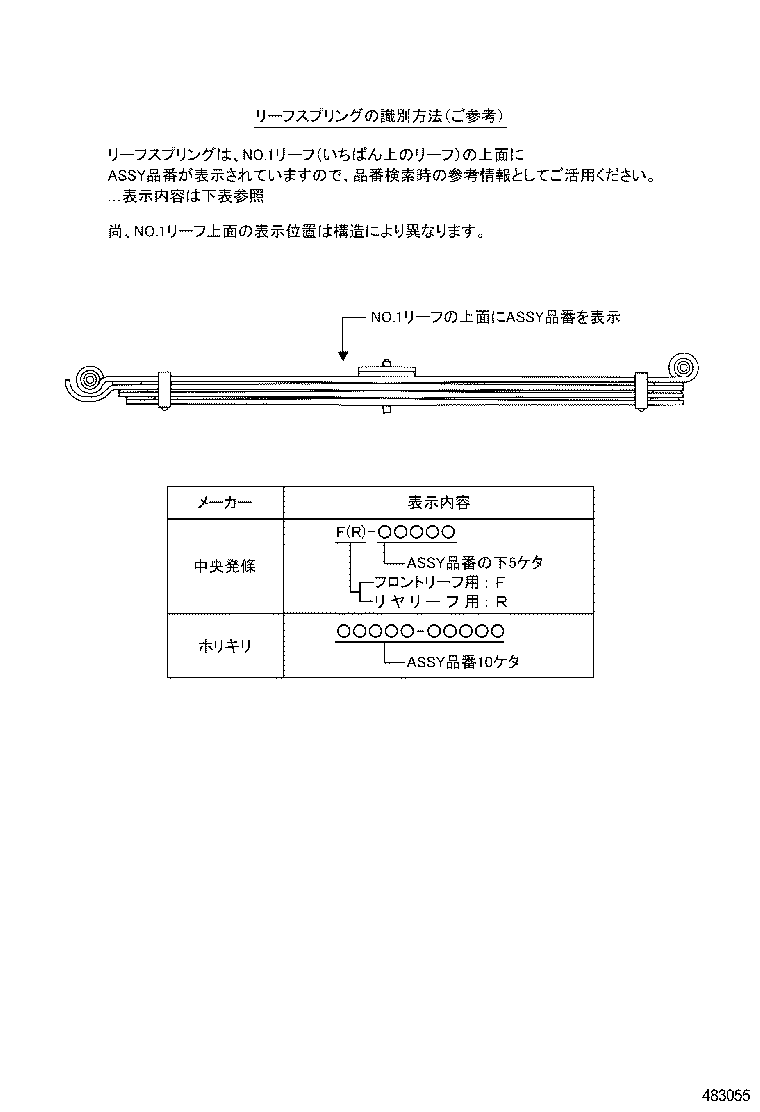

ILLUST NO. 3 OF 3(9906- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
