CM75-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )1SO,3SO

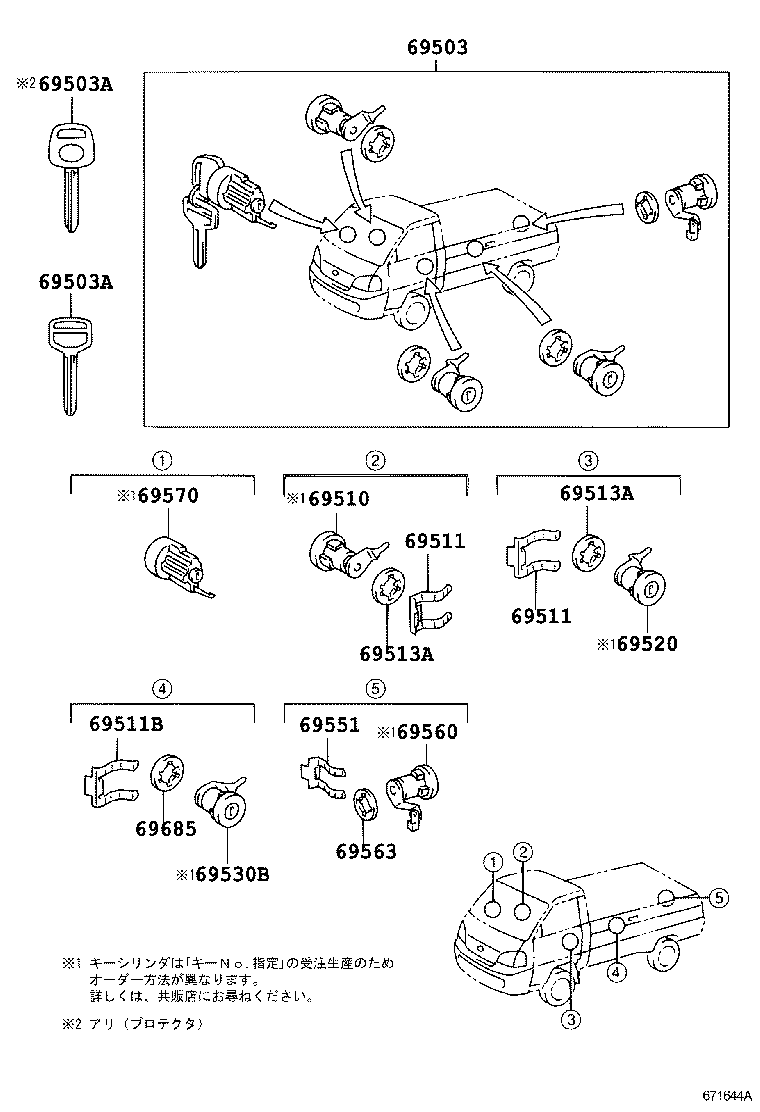

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69510 69511 69511 69511B 69513A 69513A 69520 69530B 69551 69560 69563 69570 69685
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69503-27400

CM7#,8#,KM7#,8#

ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69503-27340

CM7#,8#,KM7#,8#..(1SO,3SO)..DX

 1
69503A - KEY, BLANK
90999-00132

CM7#,8#,KM7#,8#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00130

CM7#,8#,KM7#,8#

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00132

CM7#,8#,KM7#,8#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00130

CM7#,8#,KM7#,8#

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-27030

CM7#,8#,KM7#,8#..DX

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM7#,8#,KM7#,8#

 2
69511-95400

CM7#,8#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM7#,8#,KM7#,8#

 2
69511-95400

CM7#,8#

 2
69513A - PAD, DOOR CYLINDER
69513-27010

CM7#,8#,KM7#,8#

 2
69513-27010

CM7#,8#

 2
69513A - PAD, DOOR CYLINDER
69513-27010

CM7#,8#,KM7#,8#

 2
69513-27010

CM7#,8#

 2
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-27030

CM7#,8#,KM7#,8#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-27050

CM7#,8#,KM7#,8#

 1
