CM75-TLSDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )4HC

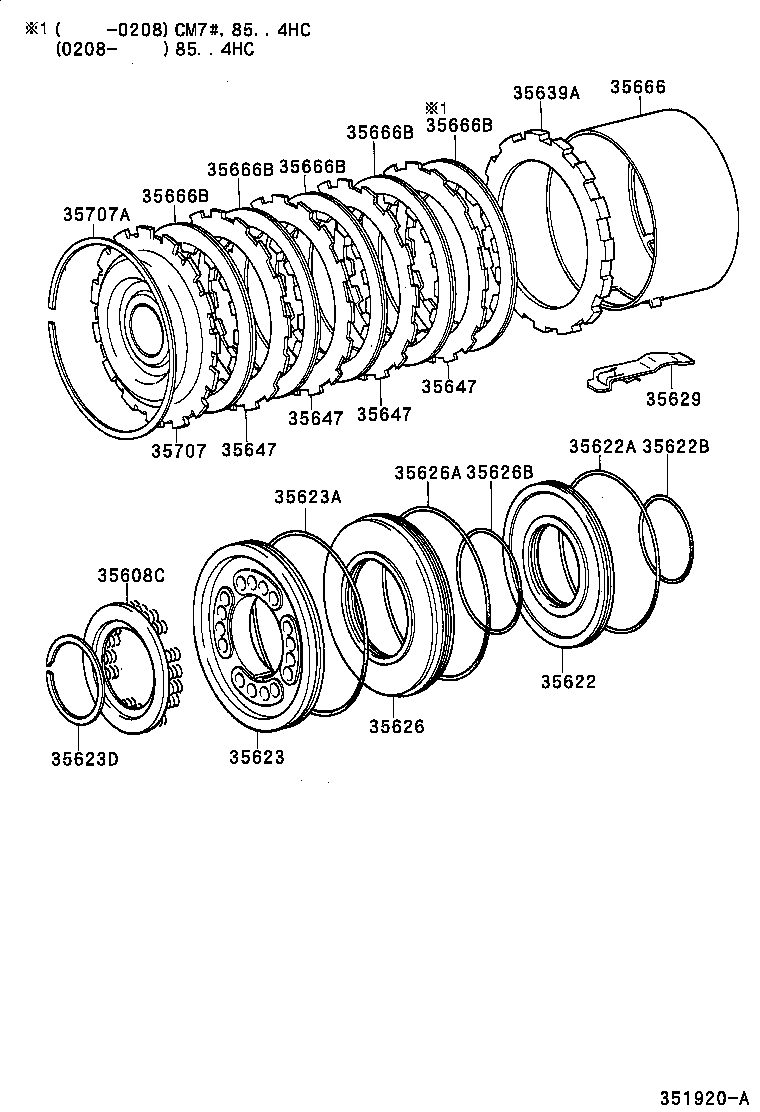

Click highlighted areas on diagram

A42D,A44DF

diagram 35608C 35622 35622A 35622B 35623 35623A 35623D 35626 35626A 35626B 35629 35639A 35647 35647 35647 35647 35666 35666B 35666B 35666B 35666B 35666B 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

CM7#,85,KM7#..4HC

 1
35608-20020

CM7#,85..4HC

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

CM7#,85..4HC

 1
35622-22010

CM7#,85,KM7#..4HC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99084

CM7#,85,KM7#..4HC

 1
90301-99084

CM7#,85..4HC

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-56007

CM7#,85..4HC

 1
90301-56007

CM7#,85,KM7#..4HC

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

CM7#,85,KM7#..4HC

 1
35623-22010

CM7#,85..4HC

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99110

CM7#,85..4HC

 1
90301-99110

CM7#,85,KM7#..4HC

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

CM7#,85,KM7#..4HC

 1
90520-52262

CM7#,85..4HC

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

CM7#,85..4HC

 1
35626-22010

CM7#,85,KM7#..4HC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99109

CM7#,85,KM7#..4HC

 1
90301-99109

CM7#,85..4HC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-67005

CM7#,85..4HC

 1
90301-67005

CM7#,85,KM7#..4HC

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

CM7#,85,KM7#..4HC

 1
35629-22010

CM7#,85..4HC

 1
35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

CM7#,85..4HC

厚さ=3.05

 1
35639-22050

CM7#,85..4HC

厚さ=4.0

 1
35639-22040

CM7#,85..4HC

厚さ=3.75

 1
35639-22020

CM7#,85..4HC

厚さ=3.25

 1
35639-22010

CM7#,85,KM7#..4HC

 1
35639-22060

CM7#,85..4HC

厚さ=4.25

 1
35639-22030

CM7#,85..4HC

厚さ=3.5

 1
35647 - PLATE, CLUTCH, NO.2
35647-22010

CM7#,85..4HC

 4
35647-22010

CM7#,85,KM7#..4HC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

CM7#,85..4HC

 4
35647-22010

CM7#,85,KM7#..4HC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

CM7#,85..4HC

 4
35647-22010

CM7#,85,KM7#..4HC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

CM7#,85..4HC

 4
35647-22010

CM7#,85,KM7#..4HC

 4
35666 - TUBE, BRAKE APPLY
35666-30010

CM7#,85..4HC

 1
35666-26010

CM7#..4HC

 1
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22060

CM7#..4HC

 4
35633-30060

CM7#,85..4HC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22060

CM7#..4HC

 4
35633-30060

CM7#,85..4HC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22060

CM7#..4HC

 4
35633-30060

CM7#,85..4HC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22060

CM7#..4HC

 4
35633-30060

CM7#,85..4HC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22060

CM7#..4HC

 4
35633-30060

CM7#,85..4HC

 5
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30020

CM7#..4HC

 1
35707-30020

CM7#,KM7#..4HC

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

CM7#,85,KM7#..4HC

 1
90521-99140

CM7#,85..4HC

 1
