CM75-TLSDE (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

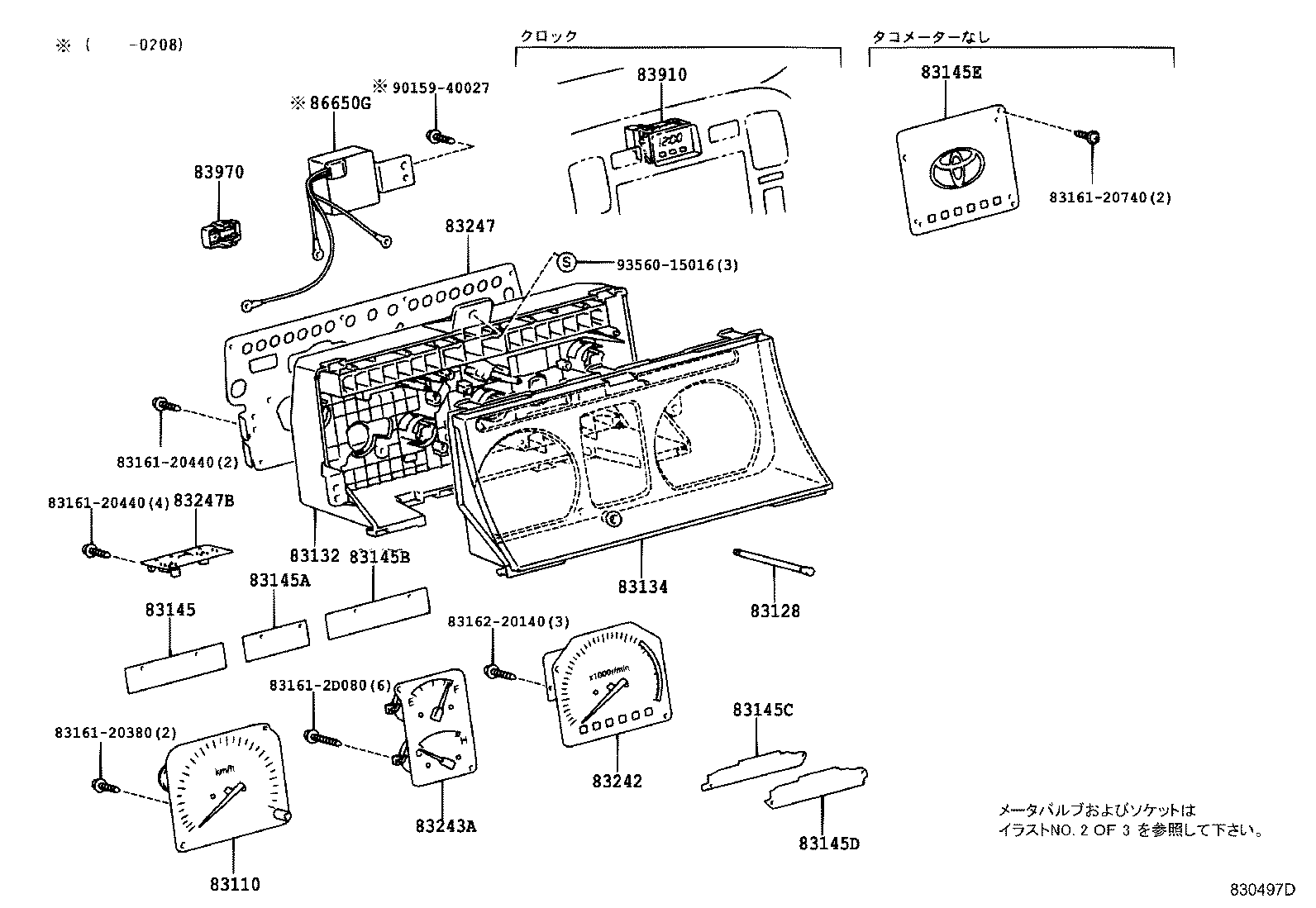

ILLUST NO. 1 OF 3(9906-0408)4HC

Click highlighted areas on diagram

diagram 83110 83128 83132 83134 83145 83145A 83145B 83145C 83145D 83145E 8316120380 8316120440 8316120440 8316120740 831612D080 8316220140 83242 83243A 83247 83247B 83910 83970 86650G 9015940027 9356015016
Part # Description Qty Price
83110 - SPEEDOMETER ASSY
83220-27030

CM7#,8#,KM7#,8#

YAZAKI

 1
83220-27030

CM7#,8#,KM7#,8#

YAZAKI

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

CM7#,8#,KM7#,8#

 1
83128-95J00

CM7#,8#,KM7#,8#

 1
83132 - CASE, COMBINATION METER
83841-27080

CM7#,8#,KM7#,8#

 1
83841-27080

CM7#,8#,KM7#,8#

 1
83134 - COVER, COMBINATION METER, NO.1
83821-27010

CM7#,8#,KM7#,8#

 1
83821-27010

CM7#,8#

 1
83145 - LENS, METER, NO.1
83831-27080

CM85..5H;CM7#,80,KM7#,8#

 1
83831-27080

CM7#,80;CM85..5H

 1
83831-27130

CM85;CM7#,80..CBU,IV3

ｱﾘ(ｵ-ﾄﾏﾁﾂｸ ｵｲﾙ TEMP)

 1
83831-27140

CM85..5H;CM7#,80,KM7#,8#

ﾅｼ(*80)

 1
83145A - LENS, METER, NO.2
83832-27080

CM7#,8#

 1
83832-27080

CM7#,8#,KM7#,8#

 1
83145B - LENS, METER, NO.3
83833-27080

CM7#,8#

 1
83833-27080

CM7#,8#,KM7#,8#

 1
83145C - LENS, METER, NO.4
83834-27080

CM7#,85..4HC

 1
83834-27080

CM7#,85,KM7#..4HC

 1
83145D - LENS, METER, NO.5
83835-27080

CM7#,85,KM7#..4HC

 1
83835-27080

CM7#,85..4HC

 1
83145E - LENS, METER, NO.6
83831-27100

CM7#,85,KM7#..4HC..DX

 1
83831-27100

CM7#,85..4HC

 1
83242 - TACHOMETER ASSY, ENGINE
83881-27240

CM7#,85..4HC..(CBU,IV3)

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83882-27080

CM7#,8#,KM7#,8#

 1
83882-27080

CM7#,8#,KM7#,8#

 1
83247 - PLATE, METER CIRCUIT
83861-27120

CM7#..4HC

 1
83861-27120

CM7#..4HC

 1
83247B - PLATE, METER CIRCUIT, NO.2
83149-2F070

CM7#,8#

 1
83149-2F070

CM7#,8#,KM7#,8#

 1
83910 - CLOCK ASSY
83910-26020

CM7#,8#

 1
83910-26020

CM7#,8#,KM7#,8#

 1
83970 - BUZZER ASSY, REVERSE WARNING
83970-12020

CM7#,85..4HC

 1
83970-12020

CM7#,85,KM7#..4HC

 1
86650G - BUZZER ASSY
86650-12030

CM7#,8#,KM7#,8#

 1
Common parts
83161-20380
83161-20440
83161-20740
83161-2D080
83162-20140
90159-40027
93560-15016

ILLUST NO. 3 OF 3(9906-0208)

Click highlighted areas on diagram

diagram 827111E260 83189 83710 83770 8379127020 8379127030 8379127040 8379195712 8379195714 9162640818 9162640818 9162640818 9162640818
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

CM7#,8#,KM7#,8#

 1
83189-20020

CM7#,8#,KM7#,8#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-27080

CM7#,KM7#..4HC

 1
83710-27140

CM7#..4HC

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-22100

CM8#,KM8#;CM7#,KM7#..4HC

 1
83770-22100

CM8#,KM8#;CM7#,KM7#..4HC

 1
Common parts
82711-1E260
83791-27020
83791-27030
83791-27040
83791-95712
83791-95714
91626-40818

ILLUST NO. 3 OF 3(0208- )CM7#,8#

Click highlighted areas on diagram

diagram 827111E260 83189 83710 83770 8379127020 8379127040 8379127070 8379195712 9162640818 9162640818 9162640818
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

CM7#,8#,KM7#,8#

 1
83189-20020

CM7#,8#,KM7#,8#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-27080

CM7#,KM7#..4HC

 1
83710-27140

CM7#..4HC

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-22100

CM8#,KM8#;CM7#,KM7#..4HC

 1
83770-22100

CM8#,KM8#;CM7#,KM7#..4HC

 1
Common parts
82711-1E260
83791-27020
83791-27040
83791-27070
83791-95712
91626-40818

ILLUST NO. 2 OF 3(9906- )

Click highlighted areas on diagram

diagram 83100B 83100B
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90010-06006

CM7#,8#,KM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 4
83120-60020

CM7#..4HC

12V 1.4W,ｿｹｯﾄ付き

 20
90010-06006

CM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
83120-60020

CM7#,8#

12V 1.4W,ｿｹｯﾄ付き

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06006

CM7#,8#,KM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 4
83120-60020

CM7#..4HC

12V 1.4W,ｿｹｯﾄ付き

 20
90010-06006

CM7#,8#

12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
83120-60020

CM7#,8#

12V 1.4W,ｿｹｯﾄ付き

 1
