CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)CM7#,8#

Click highlighted areas on diagram

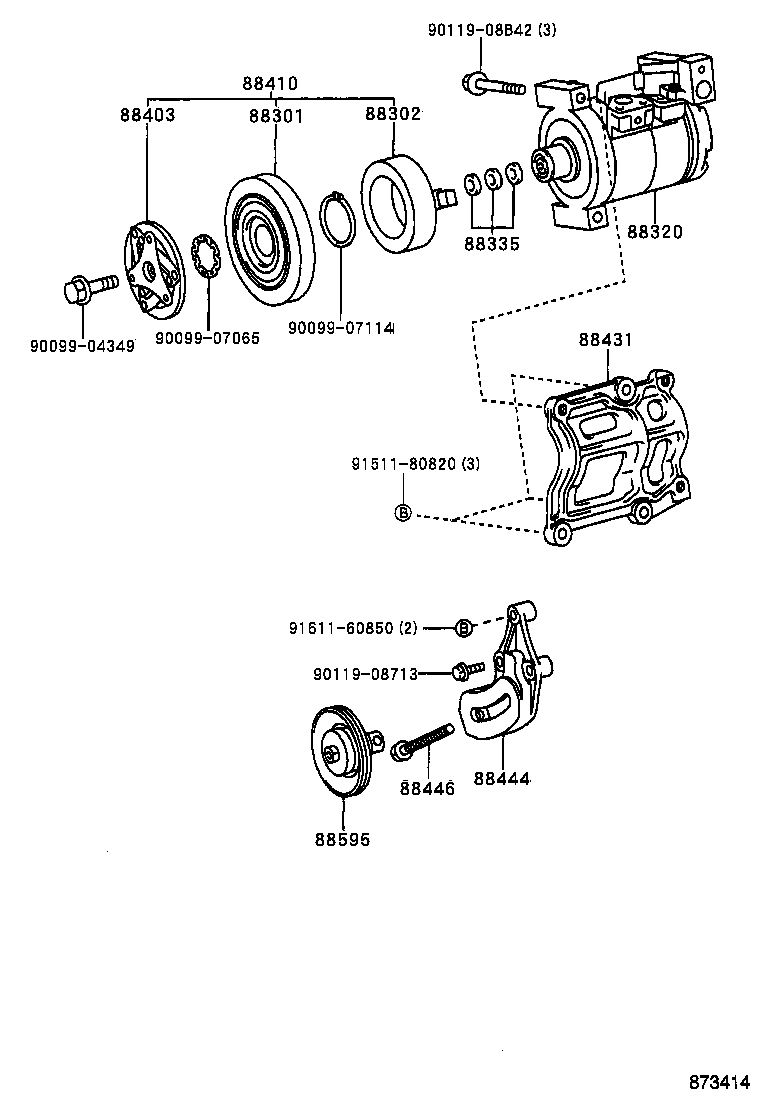

diagram 88301 88302 88320 88335 88403 88410 88431 88444 88446 88595 9009904349 9009907065 9009907114 9011908713 9011908B42 9151180820 9161160850
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-27080

CM7#,8#

 1
88412-27080

CM7#,8#

 1
88412-25030

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-25040

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88411-16070

CM7#,8#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27210

CM7#,8#

 1
88320-27210

CM7#,8#

 1
88320-27180

CM75..5H..IV3

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
88320-27200

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88320-27230

CM7#..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

CM7#,8#,KM7#,8#

 1
88335-14020

CM7#,8#,KM7#,8#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16020

CM7#,8#

 1
88403-36030

CM7#..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88410 - CLUTCH ASSY, MAGNET
88410-25080

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88410-27080

CM7#,8#

 1
88410-27080

CM7#,8#

 1
88410-25080

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27120

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27120

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27150

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431-27150

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88444 - BRACKET, IDLE PULLEY
88444-27011

CM7#,8#

 1
88444-27011

CM7#,8#

 1
88446 - BOLT, IDLE PULLEY
88446-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88446-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

CM7#,8#

 1
88440-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35020

CM7#,8#

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08713
90119-08B42
91511-80820
91611-60850

(9906- )CM7#,85..IV3

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

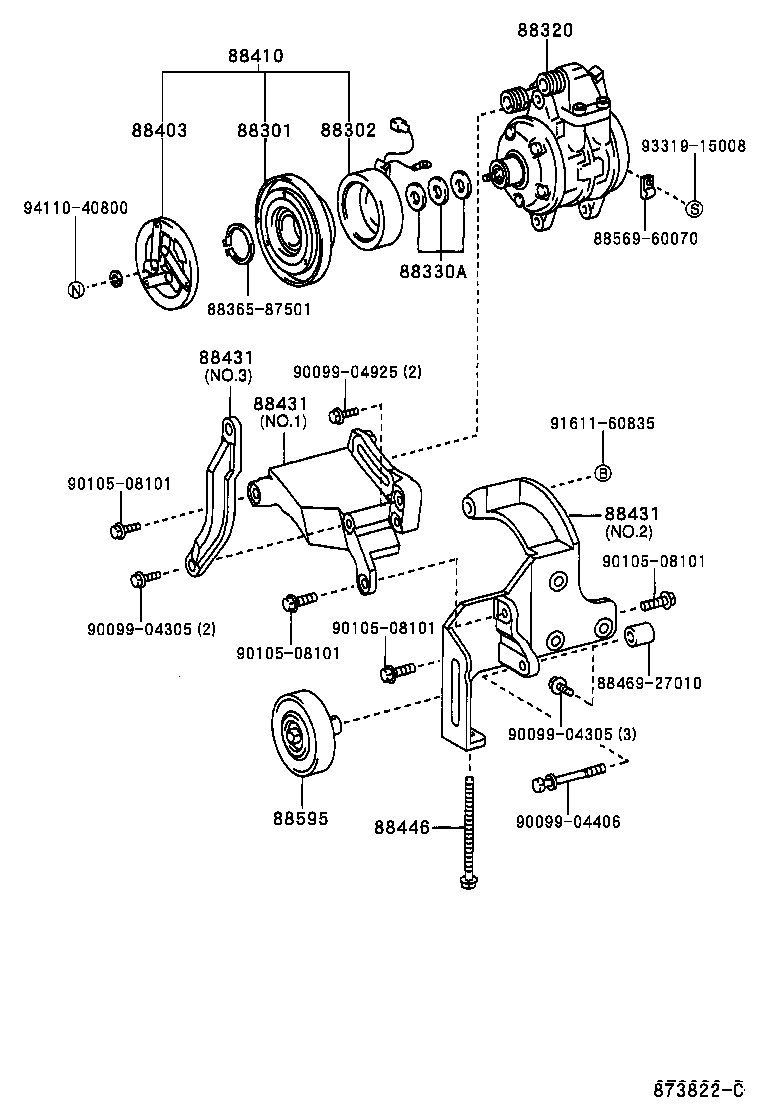

diagram 88301 88302 88320 88330A 8836587501 88403 88410 88431 88431 88431 88446 8846927010 8856960070 88595 9009904305 9009904305 9009904406 9009904925 9010508101 9010508101 9010508101 9010508101 9161160835 9331915008 9411040800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-27080

CM7#,8#

 1
88412-27080

CM7#,8#

 1
88412-25030

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-25040

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88411-16070

CM7#,8#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27210

CM7#,8#

 1
88320-27210

CM7#,8#

 1
88320-27180

CM75..5H..IV3

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
88320-27200

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88320-27230

CM7#..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM7#,85..5H..IV3

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16020

CM7#,8#

 1
88403-36030

CM7#..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88410 - CLUTCH ASSY, MAGNET
88410-25080

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88410-27080

CM7#,8#

 1
88410-27080

CM7#,8#

 1
88410-25080

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27120

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27120

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27150

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431-27150

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27120

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27120

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27150

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431-27150

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27120

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27120

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27150

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431-27150

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88446 - BOLT, IDLE PULLEY
88446-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88446-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

CM7#,8#

 1
88440-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35020

CM7#,8#

 1
Common parts
88365-87501
88469-27010
88569-60070
90099-04305
90099-04406
90099-04925
90105-08101
91611-60835
93319-15008
94110-40800

(9906-0208)CM75..5H..IV3

Click highlighted areas on diagram

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

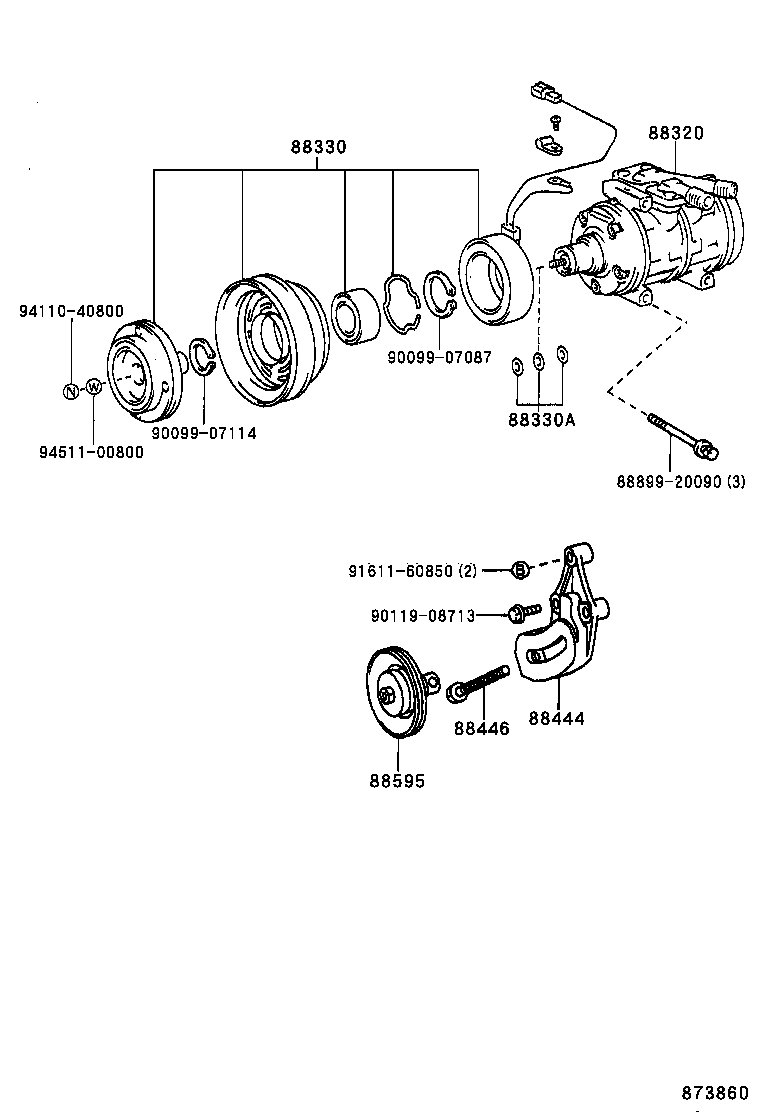

diagram 88320 88330 88330A 88444 88446 88595 8889920090 9009907087 9009907114 9011908713 9161160850 9411040800 9451100800
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-27210

CM7#,8#

 1
88320-27210

CM7#,8#

 1
88320-27180

CM75..5H..IV3

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
88320-27200

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88320-27230

CM7#..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88330 - CLUTCH ASSY, MAGNET
88410-27060

CM75..5H..IV3

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM7#,85..5H..IV3

 1
88444 - BRACKET, IDLE PULLEY
88444-27011

CM7#,8#

 1
88444-27011

CM7#,8#

 1
88446 - BOLT, IDLE PULLEY
88446-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88446-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

CM7#,8#

 1
88440-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35020

CM7#,8#

 1
Common parts
88899-20090
90099-07087
90099-07114
90119-08713
91611-60850
94110-40800
94511-00800

(0208- )CM7#,8#

Click highlighted areas on diagram

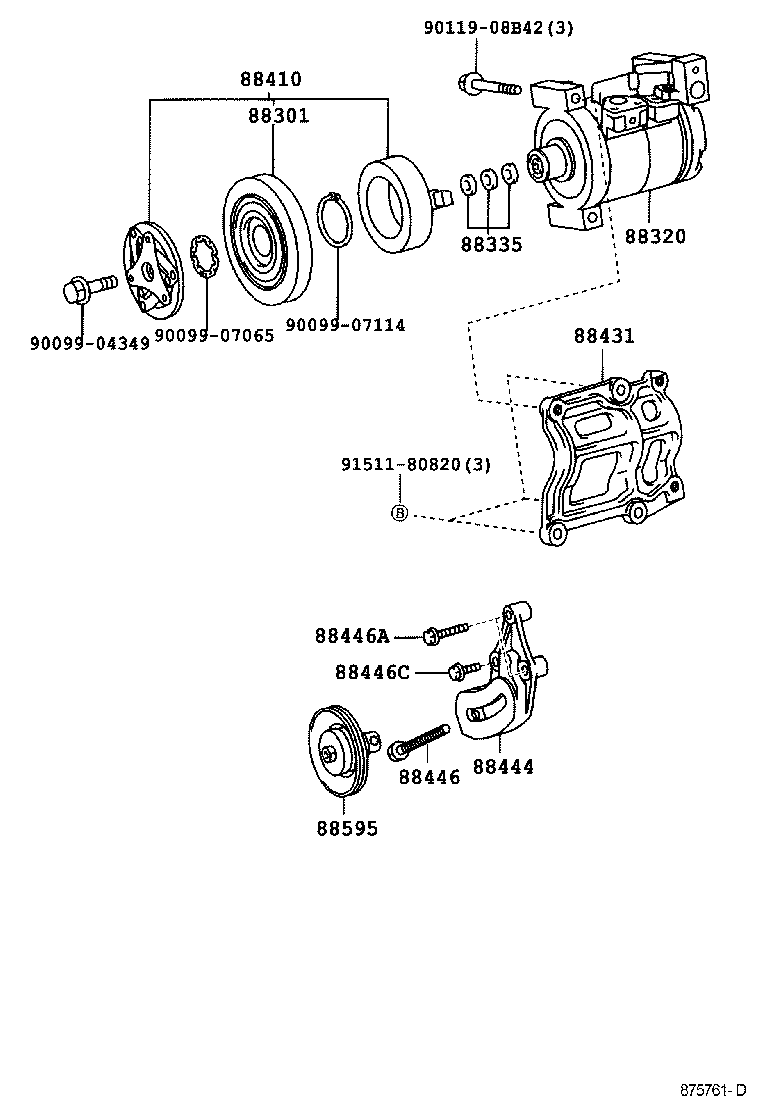

diagram 88301 88320 88335 88410 88431 88444 88446 88446A 88446C 88595 9009904349 9009907065 9009907114 9011908B42 9151180820
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-27080

CM7#,8#

 1
88412-27080

CM7#,8#

 1
88412-25030

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27210

CM7#,8#

 1
88320-27210

CM7#,8#

 1
88320-27180

CM75..5H..IV3

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
88320-27200

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88320-27230

CM7#..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

CM7#,8#,KM7#,8#

 1
88335-14020

CM7#,8#,KM7#,8#

 1
88410 - CLUTCH ASSY, MAGNET
88410-25080

CM7#..IV3

ﾚｲﾄｳｼﾔ

 1
88410-27080

CM7#,8#

 1
88410-27080

CM7#,8#

 1
88410-25080

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-27120

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27170

CM7#,8#

 1
88431-27160

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.3

 1
88431-27120

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.2

 1
88431-27150

CM7#,85..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88431-27150

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ,NO.1

 1
88444 - BRACKET, IDLE PULLEY
88444-27011

CM7#,8#

 1
88444-27011

CM7#,8#

 1
88446 - BOLT, IDLE PULLEY
88446-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88446-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
90099-04306

CM7#,8#

 1
88446A - BOLT, IDLE PULLEY NO.2
88446-27020

CM7#,8#

 2
88446C - BOLT, MAGNET CLUTCH SETTING
88446-27010

CM7#,8#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

CM7#,8#

 1
88440-35010

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35010

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88440-35020

CM7#,8#

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
91511-80820
