CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)CM7#,8#

Click highlighted areas on diagram

diagram 16268N 87245A 87245B 87246A 87246E 87248B 87249A 9046110262 9046110589 9046110589 9046721010 9046721010 9046721010 9046721010 9162640818 9162640818 9162640818 9162640818 9162640818 9162640818 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
16268N - PIPE, WATER BY-PASS
16268-64110

3CE..CM7#,8#

 1
16268-64110

3CE..CM7#,8#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-27021

CM7#,8#

 1
87245-27042

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
87245-27041

CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
87245-27022

CM7#,8#

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

CM7#,8#

*H,L=340

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700

CM7#,8#

*H,L=520

 1
87245-27080

CM7#,8#

 2
87246E - HOSE, HEATER WATER, OUTLET E
87245-27031

CM7#,8#

 1
87245-27031

CM7#,8#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95743

CM7#,8#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-27030

CM7#,8#

 1
Common parts
90461-10262
90461-10589
90467-21010
91626-40818
96134-42100

(0208- )CM7#,8#

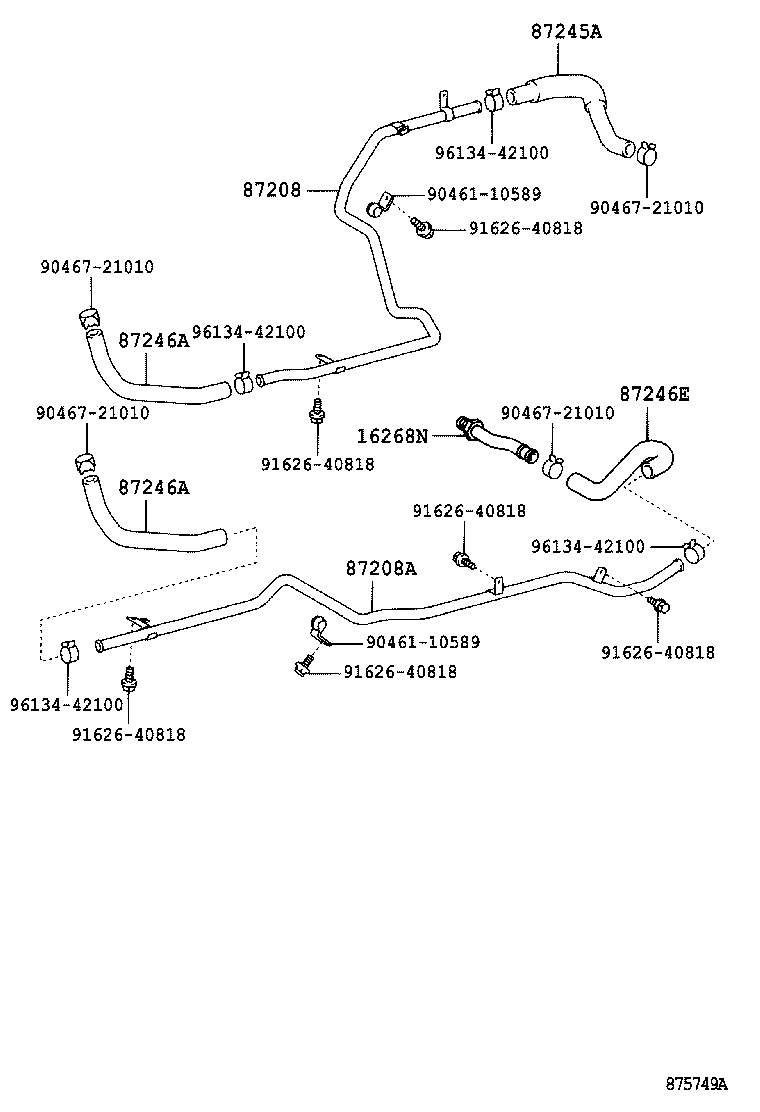

Click highlighted areas on diagram

diagram 16268N 87208 87208A 87245A 87246A 87246A 87246E 9046110589 9046110589 9046721010 9046721010 9046721010 9046721010 9162640818 9162640818 9162640818 9162640818 9162640818 9162640818 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
16268N - PIPE, WATER BY-PASS
16268-64110

3CE..CM7#,8#

 1
16268-64110

3CE..CM7#,8#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-27050

CM7#,8#

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-27060

CM7#,8#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-27021

CM7#,8#

 1
87245-27042

CM7#,85..IV3

ﾚｲﾄｳｼﾔ

 1
87245-27041

CM7#,85..IV3

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
87245-27022

CM7#,8#

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700

CM7#,8#

*H,L=520

 1
87245-27080

CM7#,8#

 2
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700

CM7#,8#

*H,L=520

 1
87245-27080

CM7#,8#

 2
87246E - HOSE, HEATER WATER, OUTLET E
87245-27031

CM7#,8#

 1
87245-27031

CM7#,8#

 1
Common parts
90461-10589
90467-21010
91626-40818
96134-42100
