CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004
Engine 3CE
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9906-0208)

Click highlighted areas on diagram

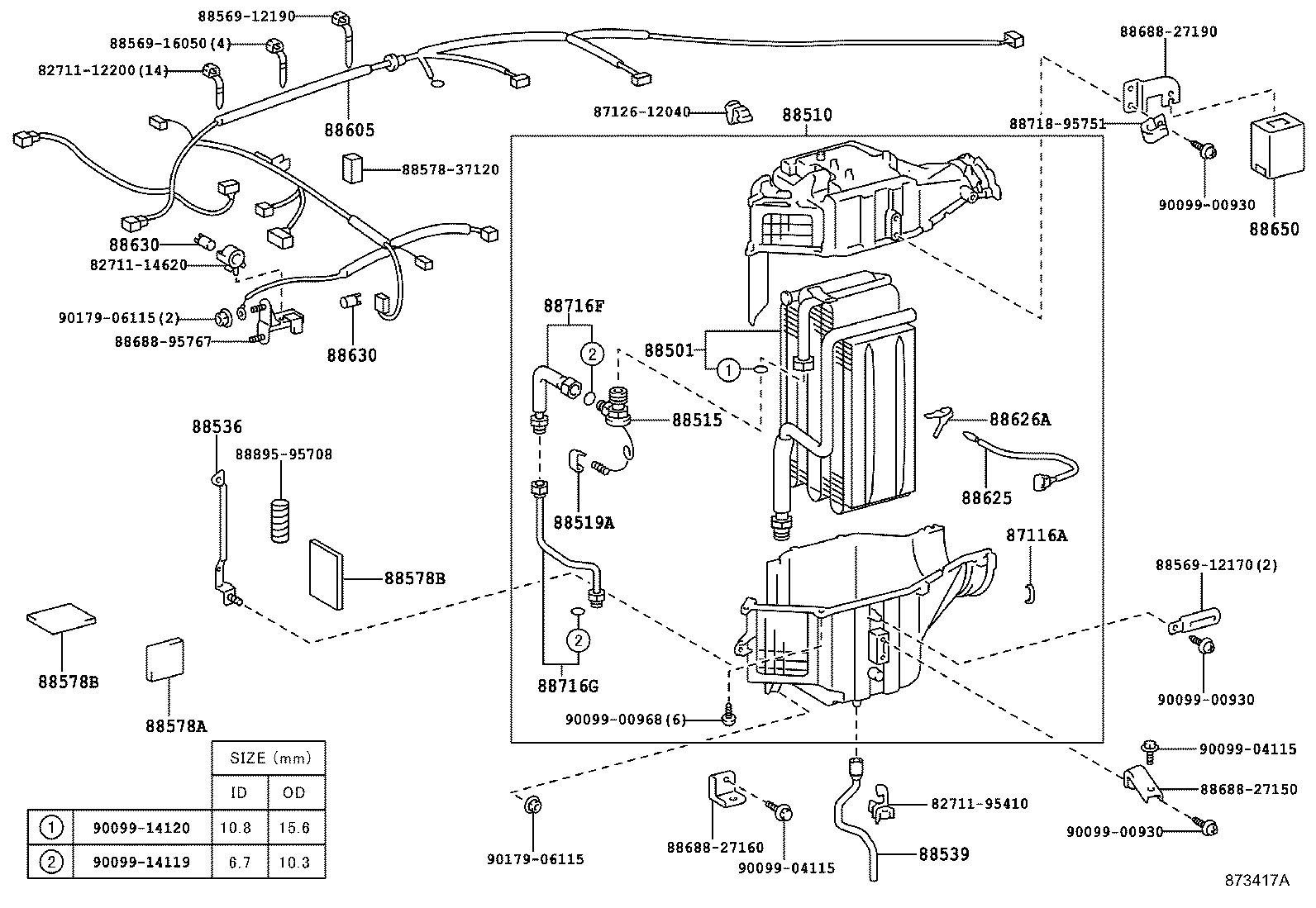

diagram 8271112200 8271114620 8271195410 87116A 8712612040 88501 88510 88515 88519A 88536 88539 8856912170 8856912190 8856916050 8857837120 88578A 88578B 88578B 88605 88625 88626A 88630 88630 88650 8868827150 8868827160 8868827190 8868895767 88716F 88716G 8871895751 8889595708 9009900930 9009900930 9009900930 9009900968 9009904115 9009904115 9009914119 9009914120 9017906115 9017906115
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

CM7#,85..IV3

 3
87116-14010

CM7#,8#,KM7#,8#

 5
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-27010

CM7#,8#,KM7#,8#

 1
88510 - UNIT ASSY, COOLER
88510-27030

CM7#,8#,KM7#,8#

 1
88510-27050

CM7#,8#

 1
88515 - VALVE, COOLER EXPANSION
88515-28090

CM7#,8#,KM7#,8#

 1
88519A - HOLDER, REMOTE BULB, PARTS
88519-87301

CM7#,8#,KM7#,8#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-95747

CM7#,8#,KM7#,8#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-27030

CM7#,8#

 1
88539-27020

CM7#,8#,KM7#,8#

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-95703

CM7#,8#,KM7#,8#

 1
88578B - PACKING, COOLING UNIT, NO.1
88592-87002

CM7#,8#,KM7#,8#

 2
88578B - PACKING, COOLING UNIT, NO.1
88592-87002

CM7#,8#,KM7#,8#

 2
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-27190

CM7#

 1
88605-27280

CM7#,85..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88605-27230

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88605-27210

CM75..5H..IV3

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
88605-27270

CM7#,8#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

CM7#,8#,KM7#,8#

 1
88626A - HOLDER, THERMISTOR
88626-40050

CM7#,8#,KM7#,8#

 1
88630 - RELAY ASSY, COOLER
90987-02004

CM7#,8#,KM7#,8#

 2
88630 - RELAY ASSY, COOLER
90987-02004

CM7#,8#,KM7#,8#

 2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37070

CM7#,8#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-27130

CM7#,8#,KM7#,8#

 1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
88716-27120

CM7#,8#,KM7#,8#

 1
Common parts
82711-12200
82711-14620
82711-95410
87126-12040
88569-12170
88569-12190
88569-16050
88578-37120
88688-27150
88688-27160
88688-27190
88688-95767
88718-95751
88895-95708
90099-00930
90099-00968
90099-04115
90099-14119
90099-14120
90179-06115

(0208- )

Click highlighted areas on diagram

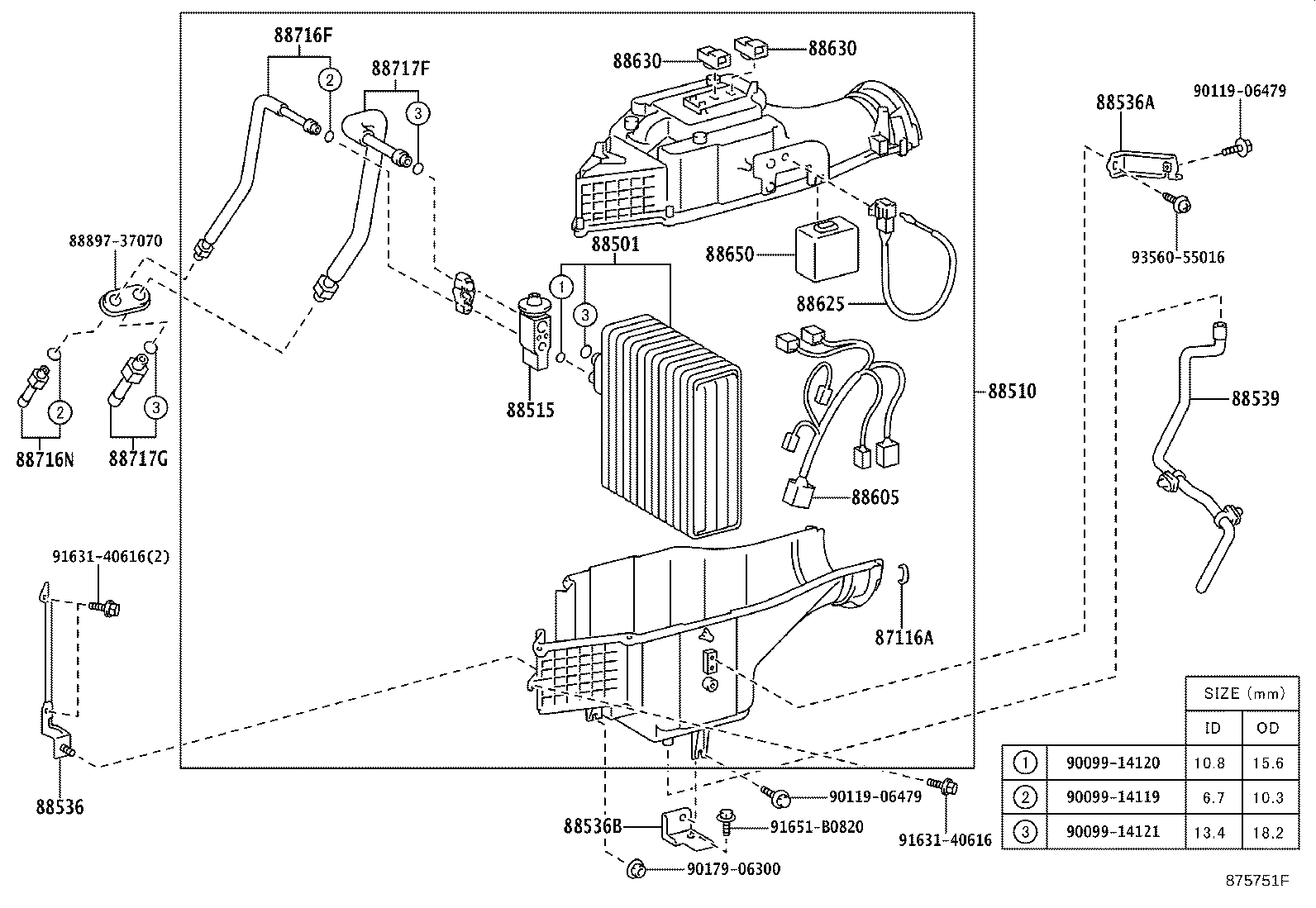

diagram 87116A 88501 88510 88515 88536 88536A 88536B 88539 88605 88625 88630 88630 88650 88716F 88716N 88717F 88717G 8889737070 9009914119 9009914120 9009914121 9011906479 9011906479 9017906300 9163140616 9163140616 91651B0820 9356055016
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

CM7#,85..IV3

 3
87116-14010

CM7#,8#,KM7#,8#

 5
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-27010

CM7#,8#,KM7#,8#

 1
88510 - UNIT ASSY, COOLER
88510-27030

CM7#,8#,KM7#,8#

 1
88510-27050

CM7#,8#

 1
88515 - VALVE, COOLER EXPANSION
88515-28090

CM7#,8#,KM7#,8#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-95747

CM7#,8#,KM7#,8#

 1
88536A - BRACKET, COOLING UNIT, NO.2
88688-27260

CM7#,8#

 1
88536B - BRACKET, COOLING UNIT, NO.3
88688-27270

CM7#,8#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-27030

CM7#,8#

 1
88539-27020

CM7#,8#,KM7#,8#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-27190

CM7#

 1
88605-27280

CM7#,85..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88605-27230

CM7#,85..5H..IV3

ﾚｲﾄｳｼﾔ

 1
88605-27210

CM75..5H..IV3

ｺｳｼﾖｾﾝﾖｳｼﾔｼ

 1
88605-27270

CM7#,8#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12070

CM7#,8#,KM7#,8#

 1
88630 - RELAY ASSY, COOLER
90987-02004

CM7#,8#,KM7#,8#

 2
88630 - RELAY ASSY, COOLER
90987-02004

CM7#,8#,KM7#,8#

 2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37070

CM7#,8#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-27130

CM7#,8#,KM7#,8#

 1
88716N - PIPE, COOLER REFRIGERANT LIQUID, N
88716-27210

CM7#,85,KM7#,85..IV3

 1
88717G - PIPE, COOLER REFRIGERANT SUCTION, G
88717-27110

CM7#,85,KM7#,85..IV3

 1
Common parts
88897-37070
90099-14119
90099-14120
90099-14121
90119-06479
90179-06300
91631-40616
91651-B0820
93560-55016
