Toyota Lite/townace CM75 WIRING & CLAMP

CM75-TLQDE3 (1999)

Toyota Lite/Townace

Production Jun 1999 - Aug 2004

Engine 3CE

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

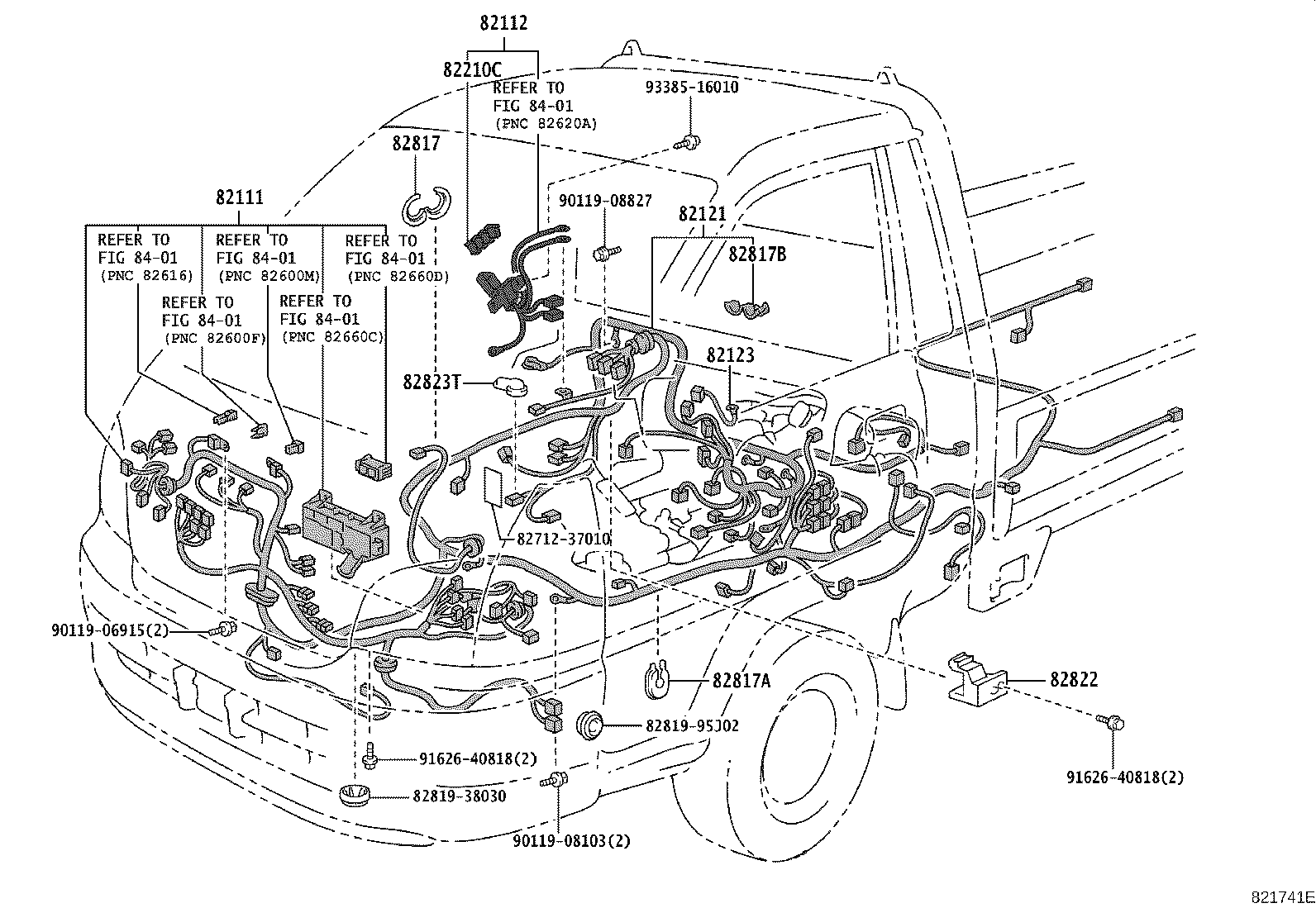

ILLUST NO. 1 OF 6(9906-0208)CM7#,8#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ & ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-27270	CM7#,8#..(JL,SJL,T1)..5H	06/1999 - 08/2002	1
82115-27290	CM7#,8#..(JL,SJL,T1)..5H ｱﾘ(ABS)	06/1999 - 08/2002	1
82111-2K100	CM7#,8#..5H	08/2002 - 08/2004	1
82111-2K110	CM7#,8#..5H ﾅｼ(ABS)	08/2002 - 08/2004	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-27150	CM7#,8#	06/1999 - 08/2002	1
82112-27170	CM7#,8#	08/2002 - 08/2004	1
82121 - WIRE, ENGINE
82121-27020	CM7#,8#..5H	06/1999 - 08/2002	1
82121-27050	CM7#,8#..5H	08/2002 - 08/2004	1
82123 - WIRE, ENGINE, NO.3
82123-27010	CM7#,8#	06/1999 - 08/2002	1
82123-27010	CM7#,8#	08/2002 - 08/2004	1
82210C - FUSIBLE LINK
90982-08202	CM7#,8#,KM7#,8# 60A,ｵｽ端子,黄	06/1999 - 08/2002	1
90982-08188	CM7#,8#,KM7#,8# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1999 - 08/2002	1
90982-08202	CM7#,8# 60A,ｵｽ端子,黄	08/2002 - 08/2004	1
90982-08246	CM7#,8# 100A,ｵｽ端子,青	08/2002 - 08/2004	1
90982-08189	CM7#,8# 40A,ﾒｽ端子,緑	08/2002 - 08/2004	1
90982-08246	CM7#,8#,KM7#,8# 100A,ｵｽ端子,青	06/1999 - 08/2002	1
90982-08188	CM7#,8# 30A,ﾒｽ端子,ﾋﾟﾝｸ	08/2002 - 08/2004	1
90982-08189	CM7#,8#,KM7#,8# 40A,ﾒｽ端子,緑	06/1999 - 08/2002	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2A290	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82817-2A290	CM7#,8#	08/2002 - 08/2004	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-95712	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82817-95712	CM7#,8#	08/2002 - 08/2004	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-27040	CM7#,8#	06/1999 - 08/2002	1
82817-27040	CM7#,8#	08/2002 - 08/2004	1
82822 - BRACKET,CONNECTOR BLOCK
82822-27050	CM7#,8#	08/2002 - 07/2003	1
82822-27050	CM7#,8#	08/2003 - 08/2004	1
82822-27050	CM7#,8#	06/1999 - 08/2002	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	CM7#,8#	08/2002 - 08/2004	1
82823-22050	CM7#,8#	06/1999 - 08/2002	1
Common parts
82712-37010
82819-38030
82819-95J02
90119-06915
90119-08103
90119-08827
91626-40818
93385-16010
Linked diagrams
8401

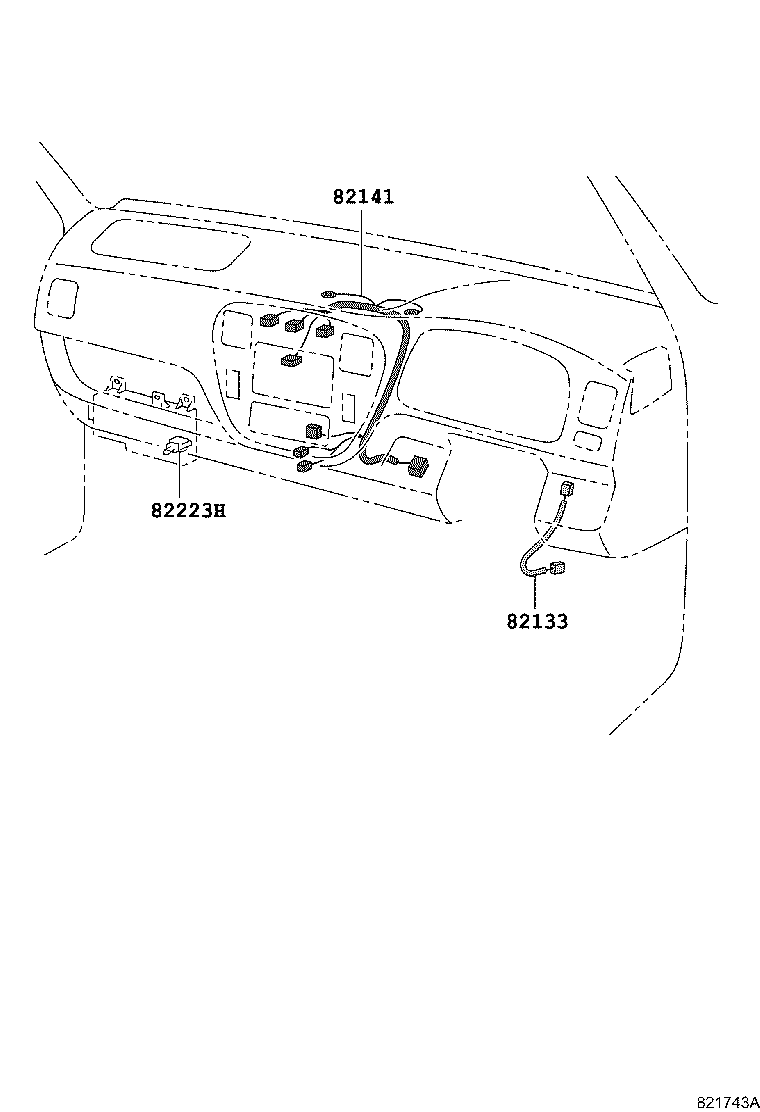

ILLUST NO. 3 OF 6(9906-0208)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ

Part #	Description	Period	Qty
82133 - WIRE, COWL, NO.3
82133-27020	CM7#,8#	06/1999 - 08/2002	1
82133-27020	CM7#,8#	08/2002 - 08/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-27190	CM7#,8#,KM7#,8#	08/2002 - 08/2004	1
82141-27170	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82223H - WIRE, FUSE BLOCK
82223-27030	CM7#,KM7#	06/1999 - 08/2002	1
82223-27030	CM7#	08/2002 - 08/2004	1

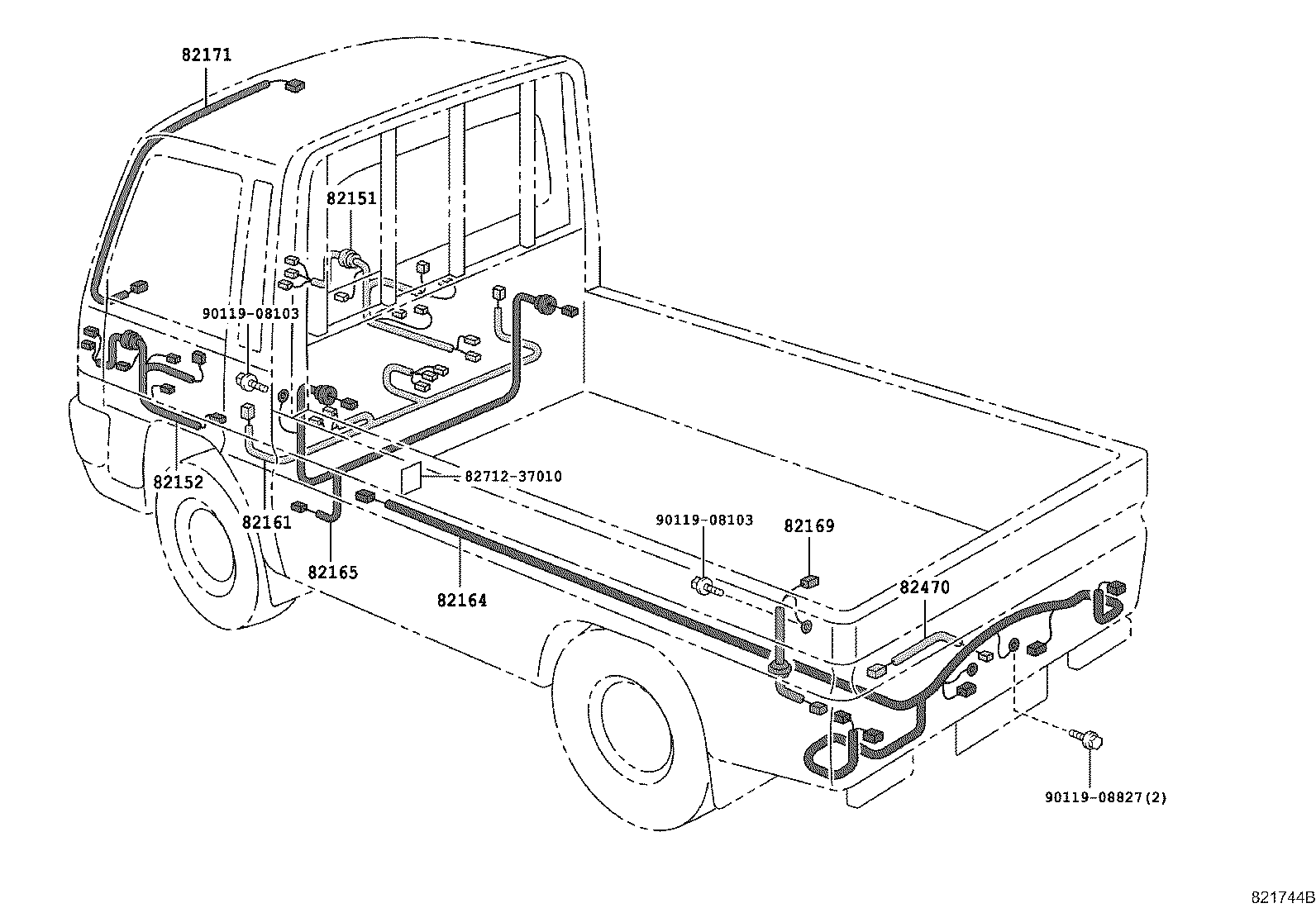

ILLUST NO. 4 OF 6(9906-0208)

Click highlighted areas on diagram

ﾄﾞｱ & ﾌﾚ-ﾑ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-27040	CM7#,8#,KM7#,8#..DX	06/1999 - 08/2002	1
82151-27080	CM7#,8#..CBU,IV3 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82151-27100	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82151-27090	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	08/2002 - 08/2004	1
82151-27050	CM7#,8#,KM7#,8#..DX ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/1999 - 08/2002	1
82151-27070	CM7#,8#..CBU,IV3	08/2002 - 08/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-27060	CM7#,8#..CBU,IV3	08/2002 - 08/2004	1
82152-27070	CM7#,8#..CBU,IV3 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82152-27080	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	08/2002 - 08/2004	1
82152-27040	CM7#,8#,KM7#,8#..DX ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/1999 - 08/2002	1
82152-27090	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82152-27030	CM7#,8#,KM7#,8#..DX	06/1999 - 08/2002	1
82161 - WIRE, FLOOR
82161-27020	CM7#,8#,KM7#,8# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	06/1999 - 08/2002	1
82161-27030	CM7#,8#	08/2002 - 08/2004	1
82161-27010	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82161-27040	CM7#,8# ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	08/2002 - 08/2004	1
82164 - WIRE, FRAME
82164-27160	CM75,85,KM75,85	06/1999 - 08/2002	1
82164-27240	CM75,85,KM75,85	08/2002 - 08/2004	1
82171 - WIRE, ROOF, NO.1
82171-27010	CM7#,8#	08/2002 - 08/2004	1
82171-27010	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-27010	CM7#,8#..IV3,IV6	08/2002 - 08/2004	1
82470-27010	CM7#,8#,KM7#,8#..IV3	06/1999 - 08/2002	1
Common parts
82712-37010
90119-08103
90119-08827

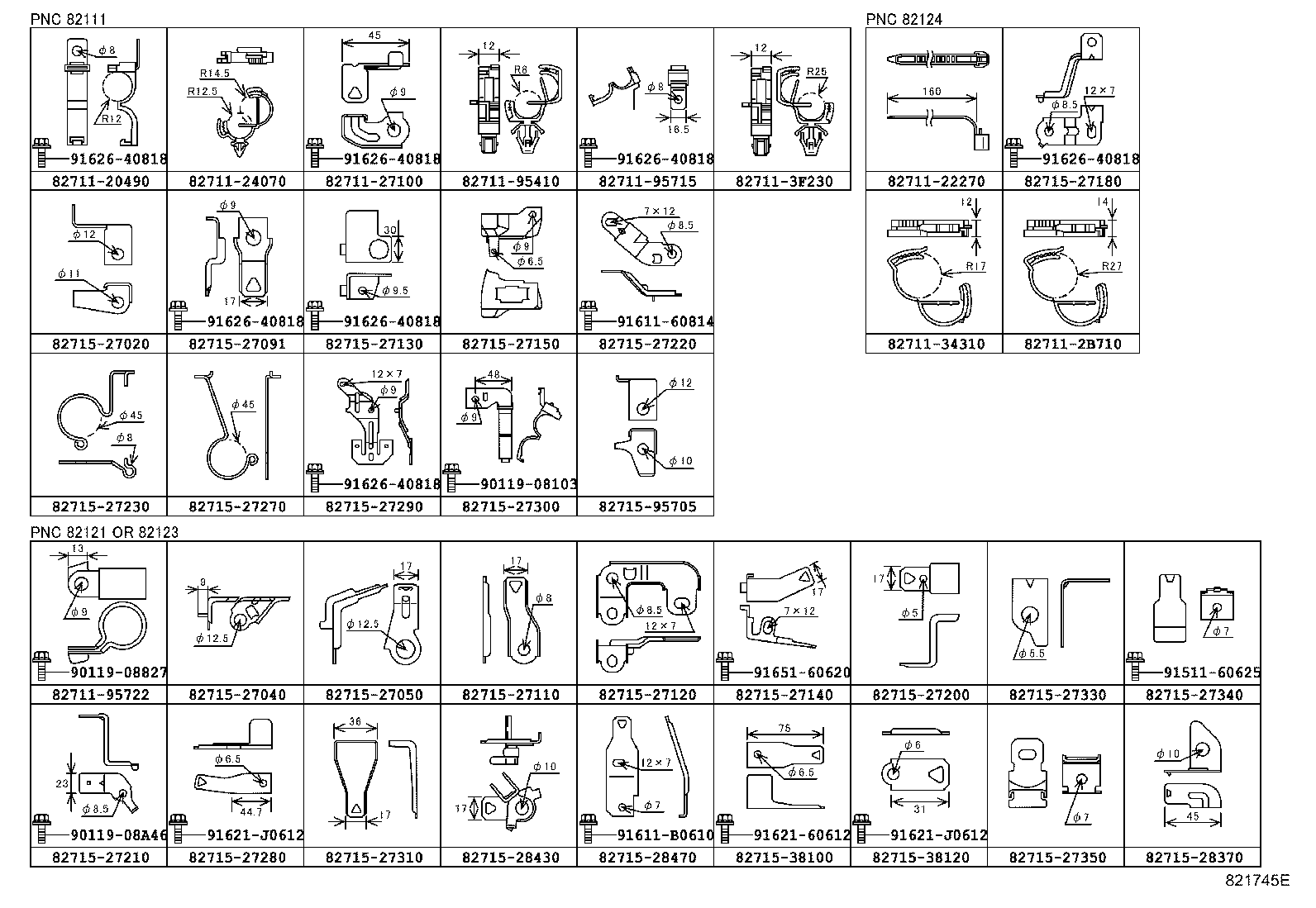

ILLUST NO. 5 OF 6(9906- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-20490
82711-22270
82711-24070
82711-27100
82711-2B710
82711-34310
82711-3F230
82711-95410
82711-95715
82711-95722
82715-27020
82715-27040
82715-27050
82715-27091
82715-27110
82715-27120
82715-27130
82715-27140
82715-27150
82715-27180
82715-27200
82715-27210
82715-27220
82715-27230
82715-27270
82715-27280
82715-27290
82715-27300
82715-27310
82715-27330
82715-27340
82715-27350
82715-28370
82715-28430
82715-28470
82715-38100
82715-38120
82715-95705
90119-08103
90119-08827
90119-08A46
91511-60625
91611-60814
91611-B0610
91621-60612
91621-J0612
91626-40818
91651-60620

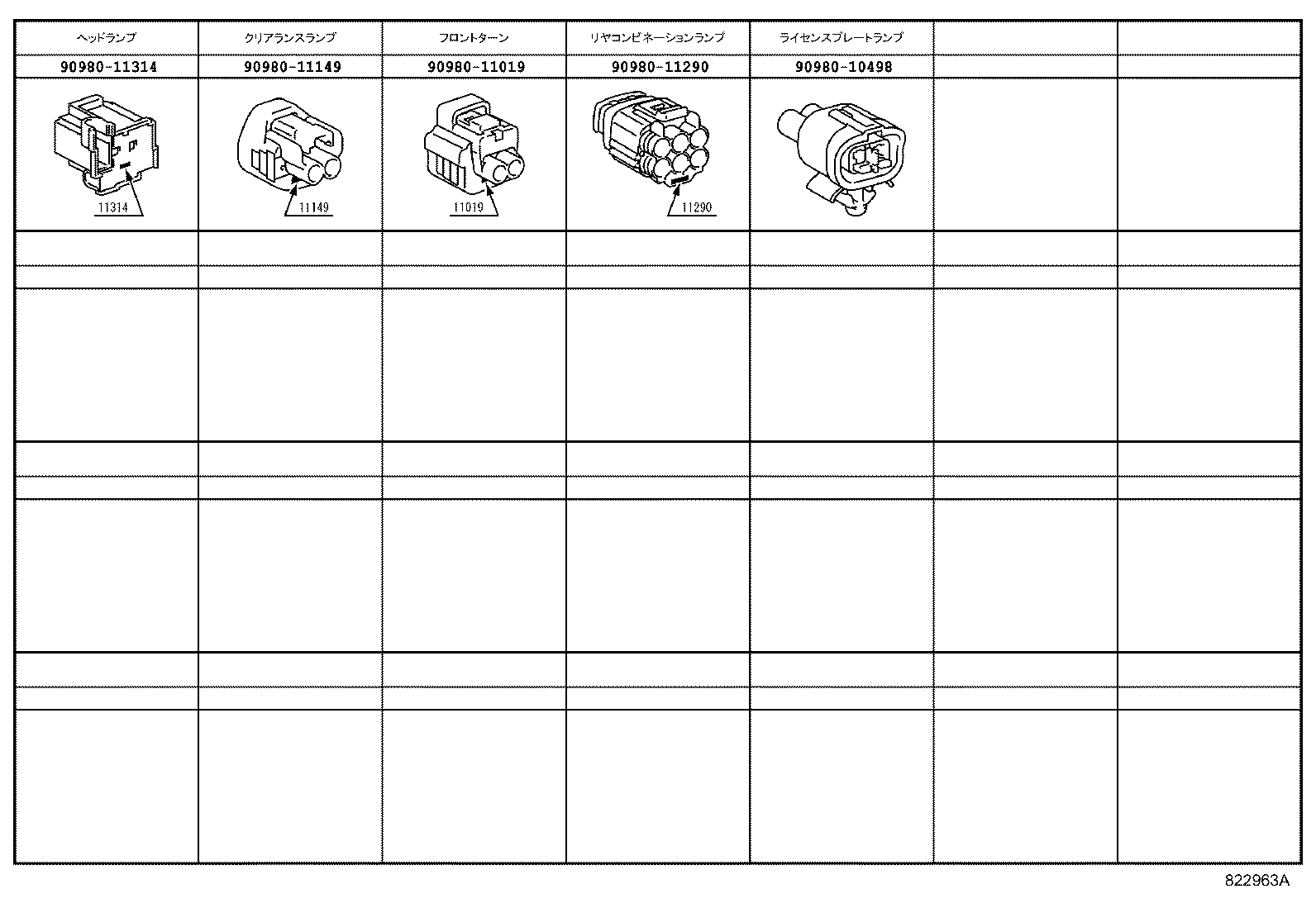

ILLUST NO. 6 OF 6(9906- )KM85..5H ; (9906- )CM7#,8#,KM7#,80

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10498
90980-11019
90980-11149
90980-11290
90980-11314

ILLUST NO. 1 OF 6(0208- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-27270	CM7#,8#..(JL,SJL,T1)..5H	06/1999 - 08/2002	1
82115-27290	CM7#,8#..(JL,SJL,T1)..5H ｱﾘ(ABS)	06/1999 - 08/2002	1
82111-2K100	CM7#,8#..5H	08/2002 - 08/2004	1
82111-2K110	CM7#,8#..5H ﾅｼ(ABS)	08/2002 - 08/2004	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-27150	CM7#,8#	06/1999 - 08/2002	1
82112-27170	CM7#,8#	08/2002 - 08/2004	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-27030	CM7#,8#	08/2002 - 08/2004	1
82210C - FUSIBLE LINK
90982-08202	CM7#,8#,KM7#,8# 60A,ｵｽ端子,黄	06/1999 - 08/2002	1
90982-08188	CM7#,8#,KM7#,8# 30A,ﾒｽ端子,ﾋﾟﾝｸ	06/1999 - 08/2002	1
90982-08202	CM7#,8# 60A,ｵｽ端子,黄	08/2002 - 08/2004	1
90982-08246	CM7#,8# 100A,ｵｽ端子,青	08/2002 - 08/2004	1
90982-08189	CM7#,8# 40A,ﾒｽ端子,緑	08/2002 - 08/2004	1
90982-08246	CM7#,8#,KM7#,8# 100A,ｵｽ端子,青	06/1999 - 08/2002	1
90982-08188	CM7#,8# 30A,ﾒｽ端子,ﾋﾟﾝｸ	08/2002 - 08/2004	1
90982-08189	CM7#,8#,KM7#,8# 40A,ﾒｽ端子,緑	06/1999 - 08/2002	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2A290	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82817-2A290	CM7#,8#	08/2002 - 08/2004	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-95712	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82817-95712	CM7#,8#	08/2002 - 08/2004	1
Common parts
82712-37010
82819-95J02
90119-06915
90119-08103
91626-40818
93385-16010
Linked diagrams
8401

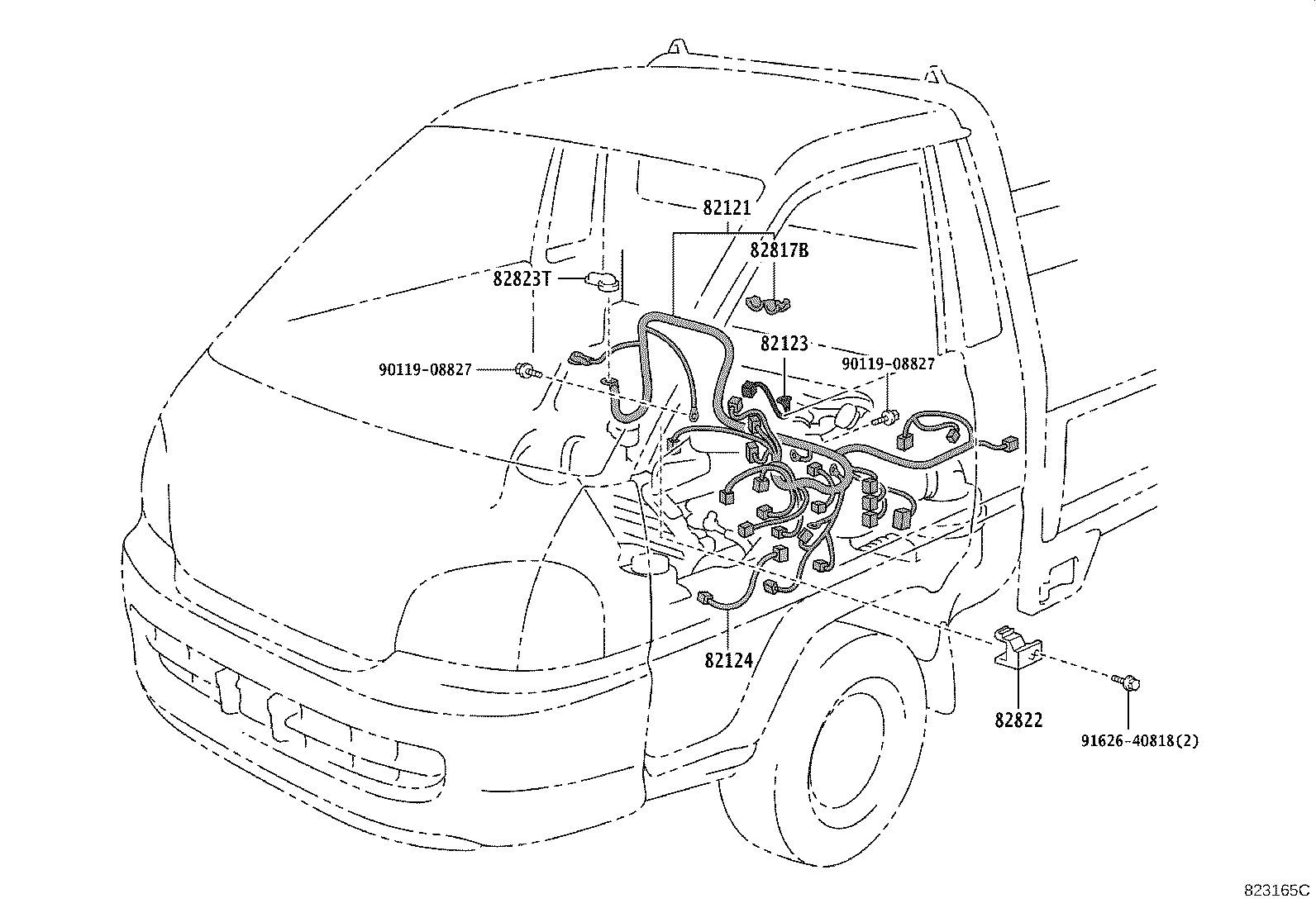

ILLUST NO. 2 OF 6(0208- )CM7#,8#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-27020	CM7#,8#..5H	06/1999 - 08/2002	1
82121-27050	CM7#,8#..5H	08/2002 - 08/2004	1
82123 - WIRE, ENGINE, NO.3
82123-27010	CM7#,8#	06/1999 - 08/2002	1
82123-27010	CM7#,8#	08/2002 - 08/2004	1
82124 - WIRE, ENGINE, NO.4
82124-27170	CM7#,8#	08/2002 - 08/2004	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-27040	CM7#,8#	06/1999 - 08/2002	1
82817-27040	CM7#,8#	08/2002 - 08/2004	1
82822 - BRACKET,CONNECTOR BLOCK
82822-27050	CM7#,8#	08/2002 - 07/2003	1
82822-27050	CM7#,8#	08/2003 - 08/2004	1
82822-27050	CM7#,8#	06/1999 - 08/2002	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	CM7#,8#	08/2002 - 08/2004	1
82823-22050	CM7#,8#	06/1999 - 08/2002	1
Common parts
90119-08827
91626-40818

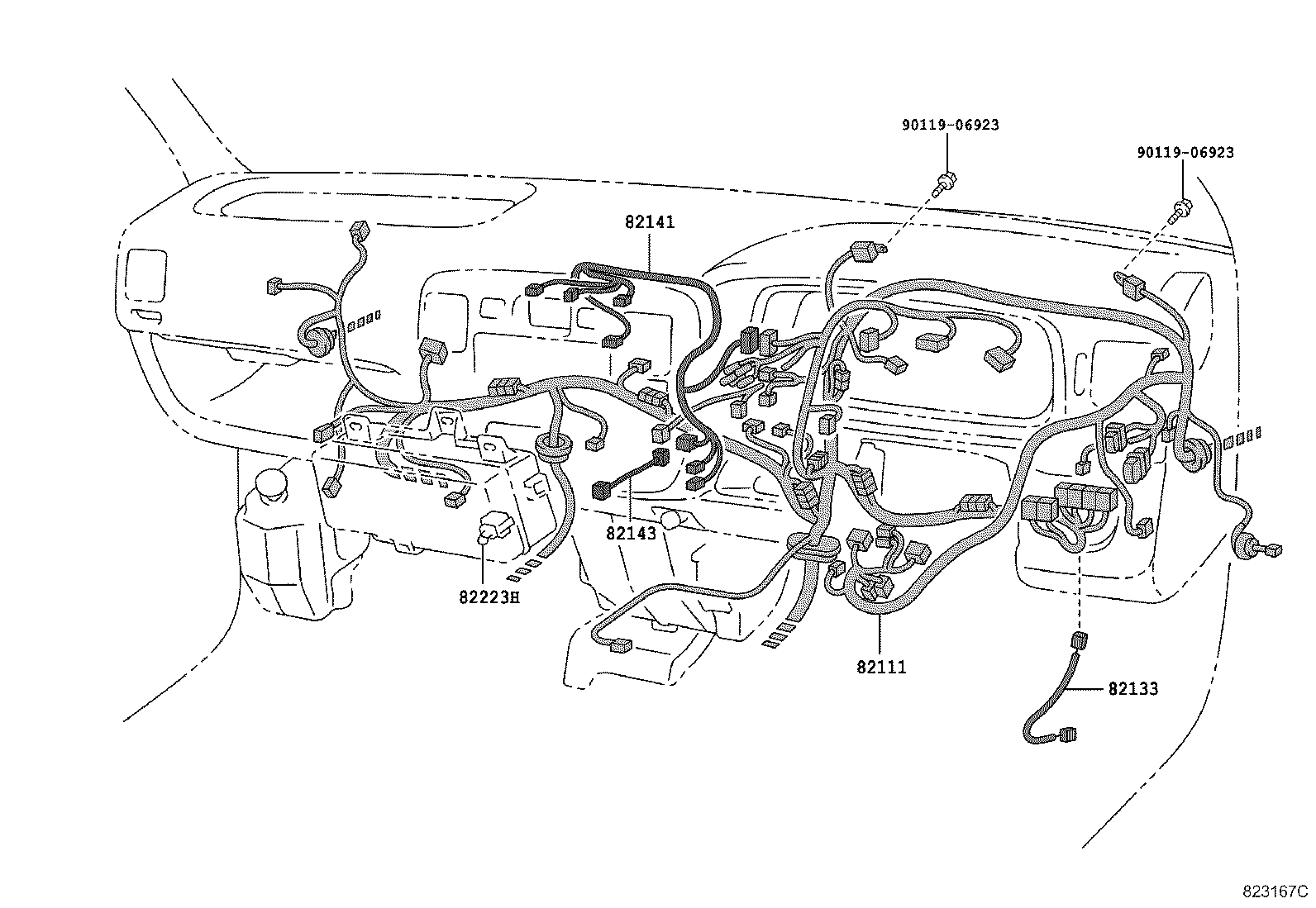

ILLUST NO. 3 OF 6(0208- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-27270	CM7#,8#..(JL,SJL,T1)..5H	06/1999 - 08/2002	1
82115-27290	CM7#,8#..(JL,SJL,T1)..5H ｱﾘ(ABS)	06/1999 - 08/2002	1
82111-2K100	CM7#,8#..5H	08/2002 - 08/2004	1
82111-2K110	CM7#,8#..5H ﾅｼ(ABS)	08/2002 - 08/2004	1
82133 - WIRE, COWL, NO.3
82133-27020	CM7#,8#	06/1999 - 08/2002	1
82133-27020	CM7#,8#	08/2002 - 08/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-27190	CM7#,8#,KM7#,8#	08/2002 - 08/2004	1
82141-27170	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82223H - WIRE, FUSE BLOCK
82223-27030	CM7#,KM7#	06/1999 - 08/2002	1
82223-27030	CM7#	08/2002 - 08/2004	1
Common parts
90119-06923

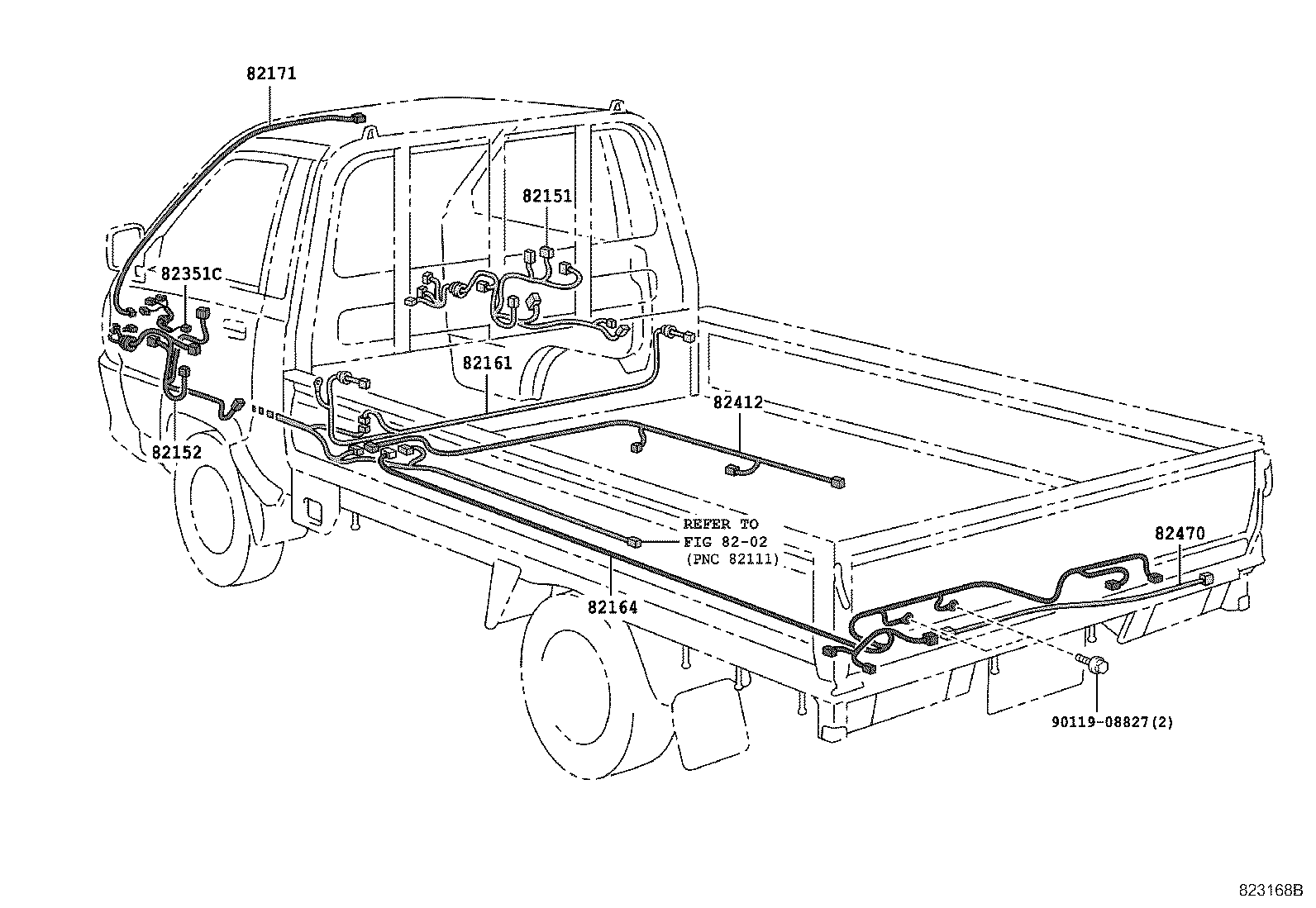

ILLUST NO. 4 OF 6(0208- )

Click highlighted areas on diagram

ﾄﾞｱ & ﾌﾚ-ﾑ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-27040	CM7#,8#,KM7#,8#..DX	06/1999 - 08/2002	1
82151-27080	CM7#,8#..CBU,IV3 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82151-27100	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82151-27090	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	08/2002 - 08/2004	1
82151-27050	CM7#,8#,KM7#,8#..DX ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/1999 - 08/2002	1
82151-27070	CM7#,8#..CBU,IV3	08/2002 - 08/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-27060	CM7#,8#..CBU,IV3	08/2002 - 08/2004	1
82152-27070	CM7#,8#..CBU,IV3 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82152-27080	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	08/2002 - 08/2004	1
82152-27040	CM7#,8#,KM7#,8#..DX ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	06/1999 - 08/2002	1
82152-27090	CM7#,8#..CBU,IV3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	08/2002 - 08/2004	1
82152-27030	CM7#,8#,KM7#,8#..DX	06/1999 - 08/2002	1
82161 - WIRE, FLOOR
82161-27020	CM7#,8#,KM7#,8# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	06/1999 - 08/2002	1
82161-27030	CM7#,8#	08/2002 - 08/2004	1
82161-27010	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82161-27040	CM7#,8# ｱﾘ(SRS ｳﾝﾃﾝｾｷｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷｴｱﾊﾞﾂｸﾞ)	08/2002 - 08/2004	1
82164 - WIRE, FRAME
82164-27160	CM75,85,KM75,85	06/1999 - 08/2002	1
82164-27240	CM75,85,KM75,85	08/2002 - 08/2004	1
82171 - WIRE, ROOF, NO.1
82171-27010	CM7#,8#	08/2002 - 08/2004	1
82171-27010	CM7#,8#,KM7#,8#	06/1999 - 08/2002	1
82351C - WIRE, COURTESY LAMP SWITCH (FOR FRONT RH DOOR)
82351-27010	CM75,85..5H..IV3	08/2002 - 08/2004	1
82412 - WIRE, FUEL GAGE
82412-27020	CM7#,8#	08/2003 - 08/2004	1
82412-27020	CM7#,8#	08/2002 - 07/2003	1
82412-27010	CM7#,8# ｱﾘ(ABS)	08/2002 - 08/2004	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-27010	CM7#,8#..IV3,IV6	08/2002 - 08/2004	1
82470-27010	CM7#,8#,KM7#,8#..IV3	06/1999 - 08/2002	1
Common parts
90119-08827
Linked diagrams
8202

ILLUST NO. 5 OF 6(9906- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-27010
82711-27020
82711-35520
82711-95410
82711-95710
82711-95722
82711-95742
82711-95743
82715-27160
82715-27240
82715-27360
90119-08827
90461-06156
91621-B0816
91651-41016
91651-60818
91651-B0820
94130-00802
